OPERATING
NSTRUCTIONS
NOTE:
When you charge the battery pack for the
first time, or after prolonged storage, charge
it for about 24 hours to bring the batteries up
to full capacity.
1. Connect the charger to cigarette lighter
receptacle(12VDC).

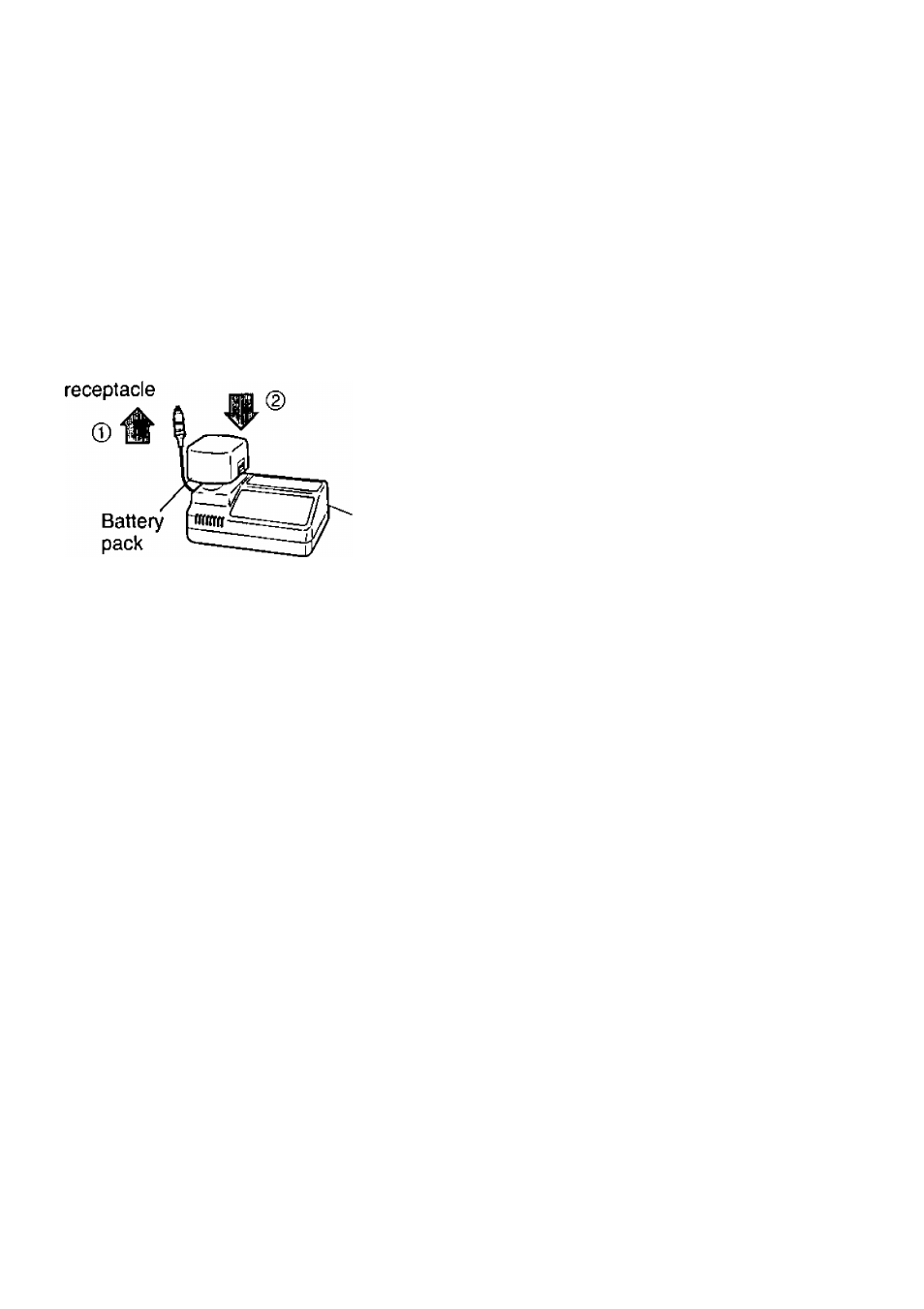

2. Insert the battery pack firmly into the
charger.
To cigarette lighter
Battery
charger
3. When the charge is completed, an
internal electronic switch will
automatically be triggered to prevent
overcharging.
o Charging will not occur if the battery
pack is warm (for example,
immediately after heavy-duty
operation). The orange standby lamp
will be lit until the battery becomes
cool. Charging will then begin
automatically.
4. When charging is completed, the
charging lamp will start flashing quickly.
LAMP DSMDICATIONS
5. When orange lamp starts flashing
quickly, it indicates insufficient input
voltage.Charger is in standby
mode.When this happens, check
following conditions for troubleshooting,
o Other equipment is being used.
o Engine is not running,
o Cigar plug is not fully inserted,
o Lifetime of car battery.
6. If a fully charged battery pack is inserted
into the charger again, the charging lamp
may light up. After several minutes, the
charging lamp may flash quickly to
indicate the charging is completed.
7. If the charging lamp does not light
immediately after the charger is
connected, or if after the standard
charging time the lamp does not go off,
consult an authorized dealer.
NOTE: o When battery is inactive,charging may
take longer than standard charging time,
o When a cool battery pack (of about
5“C or less) is to be charged in a
warm room, leave the battery in the
room for at least one hour and charge
it when it has warmed up to room
temperature, (Failing to do so may
result in less than a full charge.)
o Cool down the charger when charging
more than two battery packs
consecutively.
o Do not insert your fingers into contact
hole, when holding charger or any
other occasions.
CAUTION: o Do not use power source from an
engine generator.
o Do not cover vent holes on the
charger and the battery pack.
Flashing
-Ò
Charger is plugged into a wall outlet.
Ready to charge.
Lit
00009000000
Flashing quickly
—OCD Now charging
Charging is completed.
Lit
Flashing
00009000900
Flashing quickly
t
= Battery pack is warm. Charging will begin
when temperature of battery pack drops.
__ W|/ I Charging is not possible. Clogged with
I dust or malfunction of the battery pack.
--------- [—"Tl Input Voltage is insufficient.
