Page 21: Connecting equipment to the tv (rear)
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

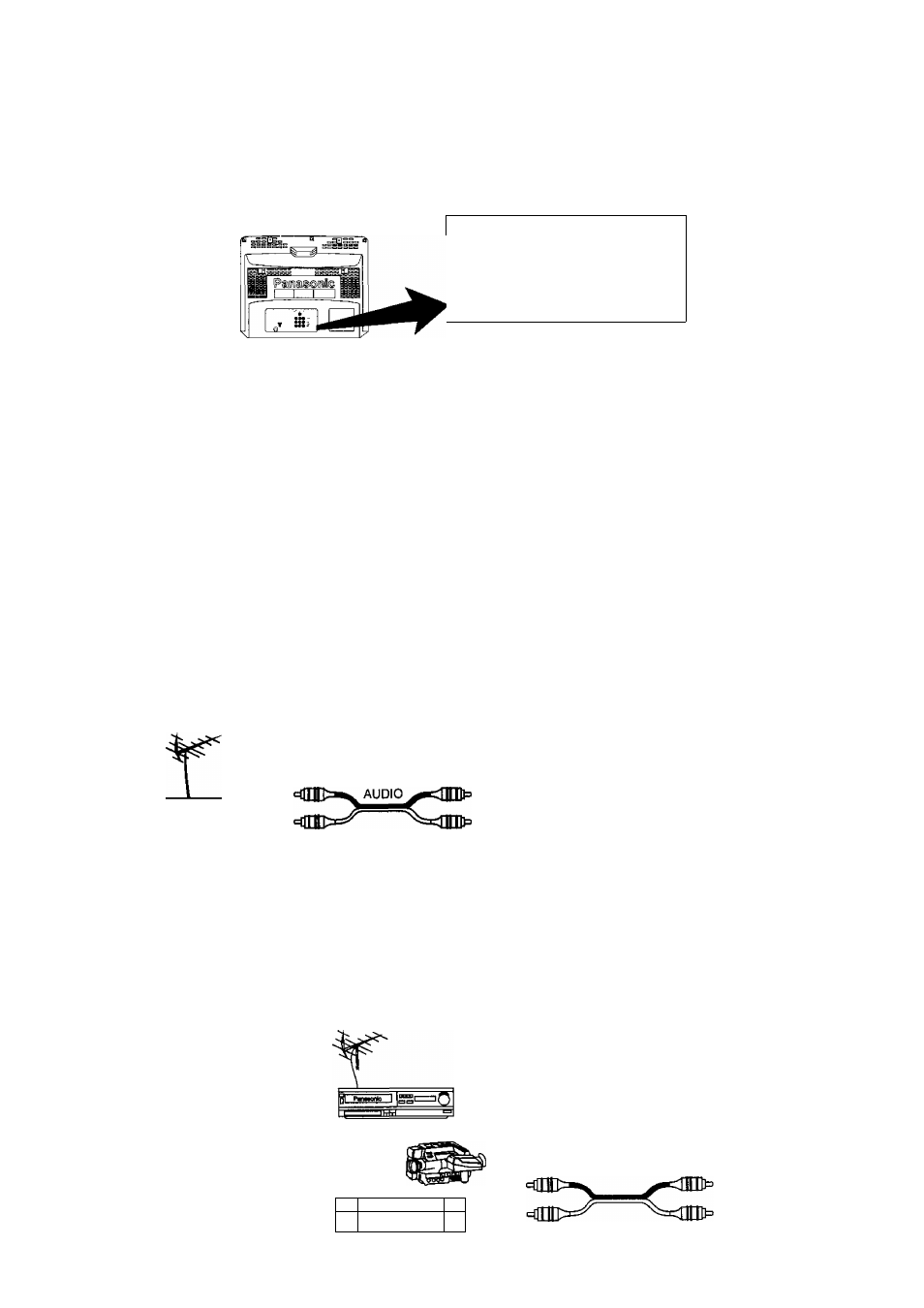

Connecting Equipment to the TV (Rear)
Rear Terminals
/
__„ « “A
»VDCD
ir
0 0
© ™
©oo-
@
_______ J
When using a VCR with the television always connect the Aerial to the VCR and connect an RF
Cable (not supplied) between the VCR RF-Out and the television RF-ln. You can watch videos
by either tuning the television to the VCR (see page 17) or by connecting the VCR to the rear
AV terminals.
Note:
When connecting a VCR through the RF-IN, @
(2)T
please switch the TV to Mono.
RF Cable (Not supplied)
Connecting a Standard VCR to the AV Input
Most standard Video Cassette Recorders use RCA type video and audio connectors. If your
VCR has different type connectors please refer to the VCR instruction book for details.
VCR
OUT
©=nnD>
L©
R©
VIDEO
AV2
IN
©
0
STANDARD VCR
NOTE:
A mono VCR can be
connected to thistelevision. Connect
the VCR Audio out to the Left Audio
input on the television. The sound
will automatically be directed to both
speakers.
Connecting S-Video Equipment to the AV Input
S-Video equipment uses a 4Pin Mini Din (Male) plug for the video and RCA plugs for the audio.
When an S-Video cable is connected to an S-Video Input terminal, the RCA video terminal for
that AV position will be disconnected.
S-VHSVCR
S-VHS CAMERA
VIDEO DISK PLAYER
n
PwaKflIc
r=i
n
Q
S-VlDEO
OUT
LEFT AUDIO OUT
0
©
RIGHT AUDIO OUT
isO
©
©
©
