6.2.16. Setting baud rate (70)
Function: Sets the baud rate with fixed parity (none parity).
GSI IN:
N70N%N
% Baud rate % Baud rate
3 1200 6 9600
4 2400 7 19200
5 4800
GSI OUT:
?
or @Exxx
7. Measuring accuracy

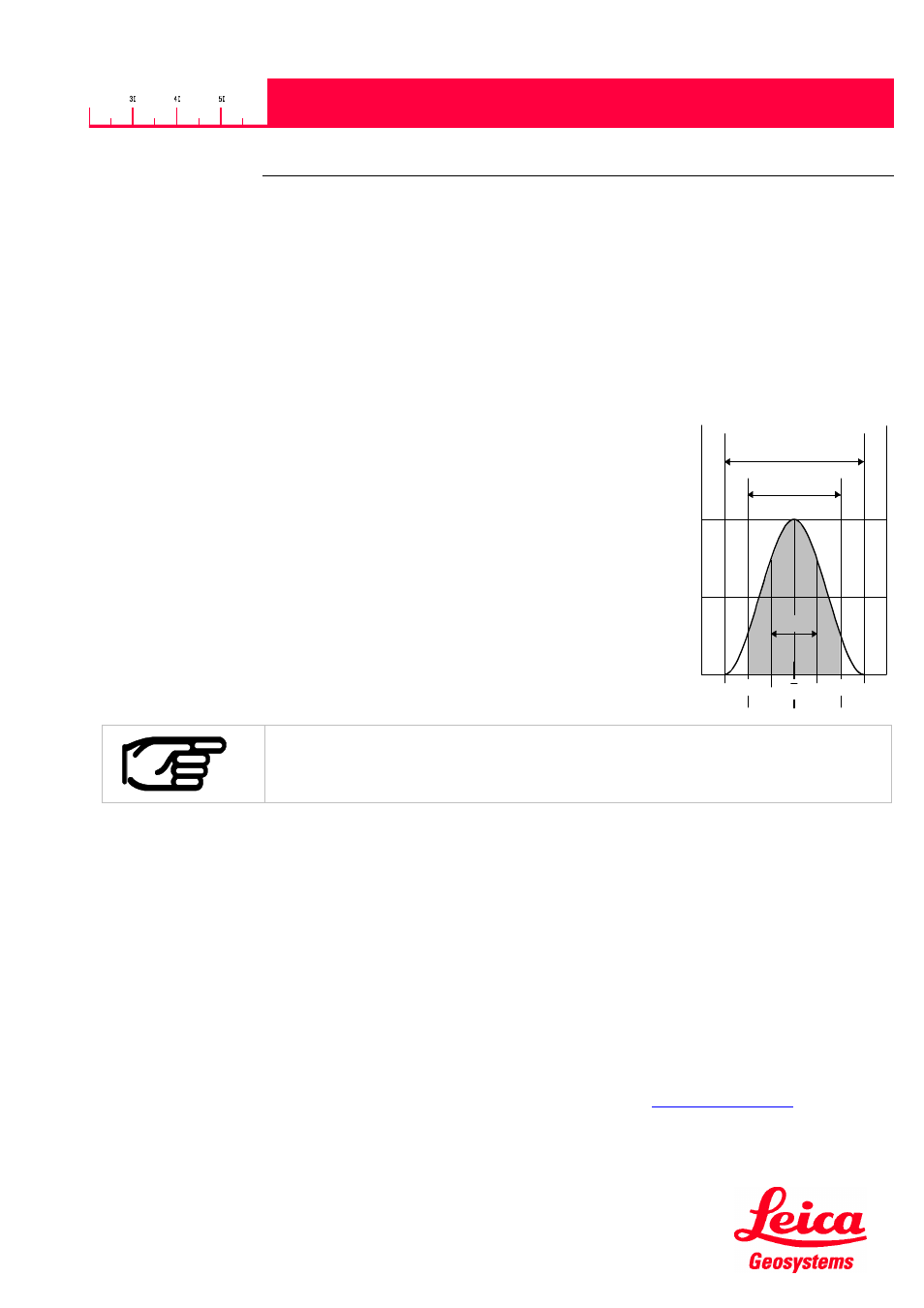

The measuring accuracy corresponds to the ISO-recommendation ISO/R 1938-
1971 with a statistical confidence level of 95% (i.e.
± twice the standard deviation,
refer to diagram below). The typical measuring accuracy relates to average
conditions for measuring. It is valid in the tracking mode.
The maximum measuring error relates to unfavorable conditions such as:
- highly-reflecting surfaces (e.g. reflector tapes)
- operating at the limits of the permitted temperature range, adaptation to ambient
temperature interrupted
- very bright ambient conditions, strong heat shimmer
and can be up to
± 2 mm for WH15 and ± 5 mm for WH30 (twice standard
deviation).
During the measuring time the distance will be averaged. This applies when measuring to
moving targets.
8. Accessories
Interface Cable (725706)
IP65 protected cable for RS232 Interface and power supply (15 pin D-sub to 9 pin D-sub female connector and
separate Power Supply). For colors and assignment refer to table under 3.2 Pin assignment of the D-sub
connector.
Length 3m
Interface Cable (725705)
IP65 protected cable for RS422 Interface and power supply (15 pin D-sub to RS422 and separate Power Supply).
For colors and assignment refer to table under 3.2 Pin assignment of the D-sub connector.
Length 3m
Software (Disto Online)
Is continuously updated. Ask your module dealer or visit the DISTO web site at
http://www.disto.com
