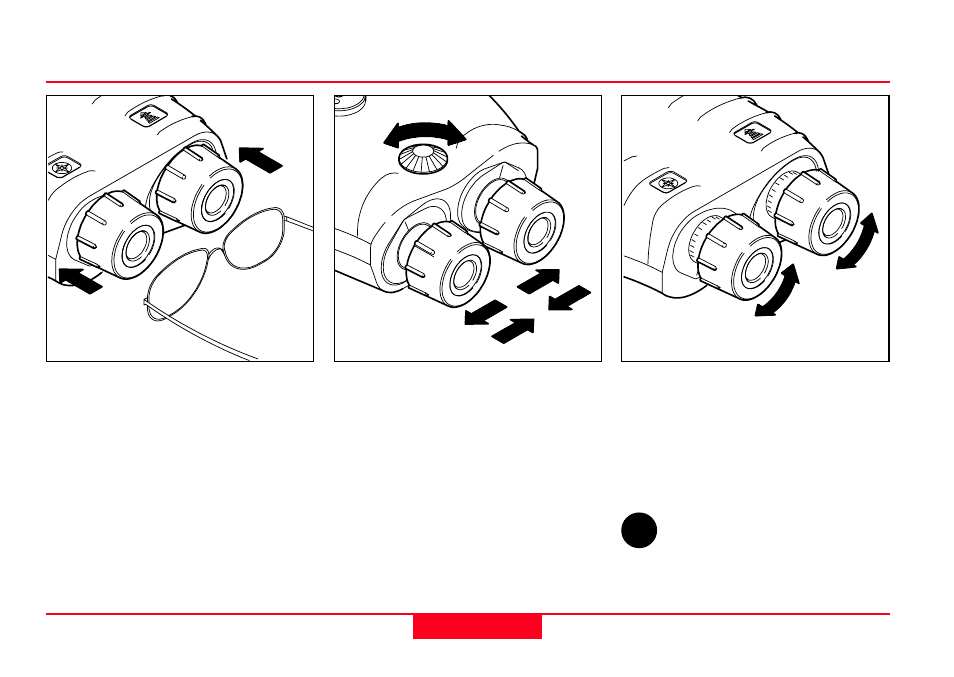

Eyepiece viewing distance Dioptric adjustment Eye-base adjustment
i
Getting started
Turn the adjusting knob until the
left and right fields of view fuse
to form a circular image. When using the Laser Locator
with glasses, push the eyecups
fully inwards.
When using the Laser Locator
without glasses, pull the
eyecups out to the stop.
Sight on an object farther than
100 m away and rotate the
eyepieces to obtain a sharp
image. Standard setting:
0 dioptres.
If the Laser Locator is
being used by a number of
different people, remember your
personal dioptric setting.
