Laser Locator-1.0 en

For safe use of the Laser Locator, please note the detailed safety
directions included in the Operating Instructions.

Laser Locator

The object is marked by a red
square that appears at the
centre of the field of vision when
you press one of the two
measurement keys.

Congratulations on purchasing
your Laser Locator.

Laser Locator =
4 instruments in 1:

• Binoculars

Superb optics in a robust,
watertight, rubber-armoured
casing.

• Digital Compass

Displays magnetic azimuth or
grid azimuth in degrees, gon or
mils.

• Laser Rangefinder

Measures from 5 m to over
4 km (depending on model,
visibility and nature of target
objects).

• Inclinometer

Displays vertical angles
between -45

° and +45°.

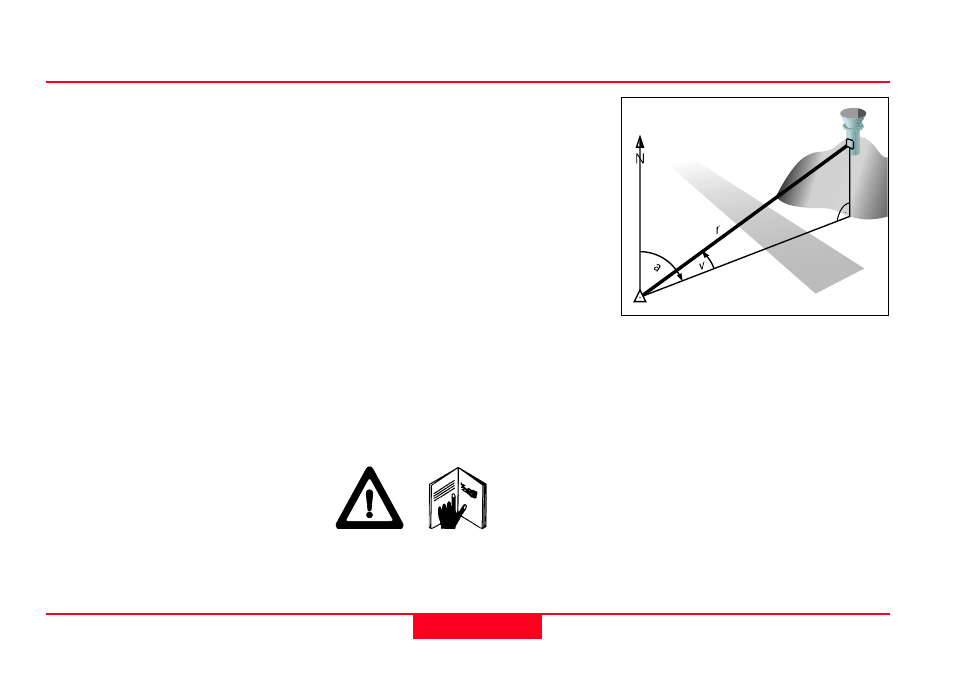

Range (slope distance)

a Azimuth (bearing, horizontal

direction, angle between
north and object)

v Vertical angle (inclination,

elevation)
