CABINET
Air Passageways
• Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture.
Wipe the cabinet to remove dust.
LOGS
• If you remove logs for cleaning, refer to Installing Logs, page 9,
to properly replace logs.
• Replace log(s) if broken or chipped (dime-sized or larger).
MAIN BURNER
Periodically inspect all burner flame holes with the heater running. All
slotted burner flame holes should be open with yellow flame present.
All round burner flame holes should be open with a small blue flame
present. Some burner flame holes may become blocked by debris or
rust, with no flame present. If so, turn off heater and let cool. Remove
blockage. Blocked burner flame holes will create soot.

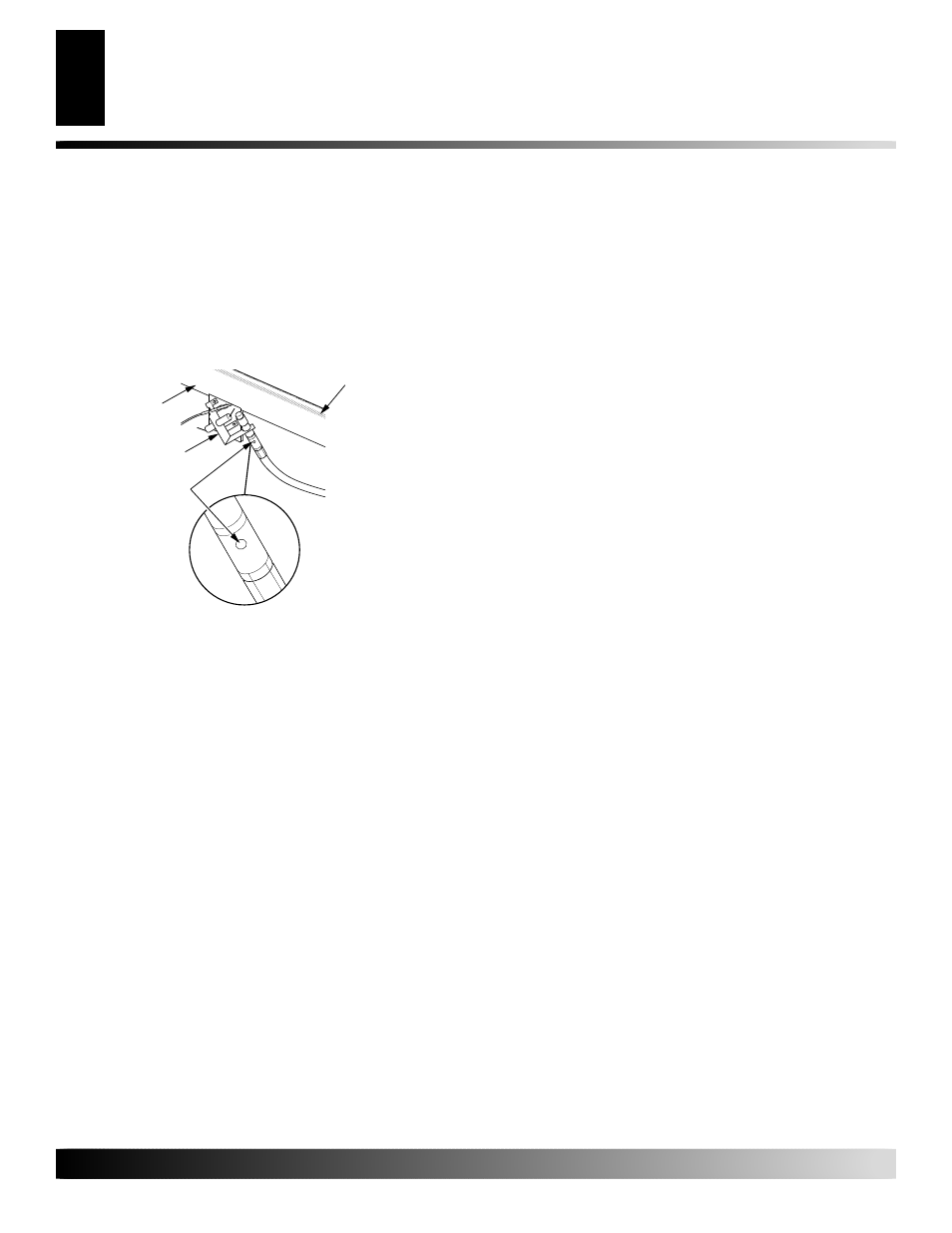

Figure 28 - Pilot Inlet Air Hole
Burner
Tube
Pilot
Assembly
Pilot Air
Inlet
Hole
Ports/Slots
Clean the pilot assembly also. A yellow tip on the pilot flame
indicates dust and dirt in the pilot assembly. There is a small pilot
air inlet hole about two inches from where the pilot flame comes out
of the pilot assembly (see Figure 28). With the unit off, lightly blow
air through the air inlet hole. You may blow through a drinking straw
if compressed air is not available.
CLEANING AND
MAINTENANCE
Continued
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA International’s Technical Ser-
vice Department at 1-866-672-6040. When calling, please have your
model and serial numbers of your heater ready.
You can also visit DESA International’s technical services web site
at
www.desatech.com.
SPECIFICATIONS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specified heat
• natual gas supply may be low
You may feel your gas pressure is too low. If so, contact your local
natural gas supplier.
SERVICE HINTS
Btu (Variable) 20,000/39,000
Type Gas Natural Only
Ignition Piezo
Manifold Pressure 3.5" W.C.
Inlet Gas Pressure
(in. of water) *
Maximum 10.5"
Minimum 5"
Dimensions, Inches (H x W x D)
Stove 31 x 32 x 19 1 / 4
Carton 24 x 31 1 / 2 x 35 1 / 4
Weight, pounds
Stove 78 lbs.
Shipping 95 lbs.
* For purposes of input adjustment
