Introduction and description, Tools and equipment, Electrical installation – Dynon Avionics EFIS-D100 Installation Guide User Manual

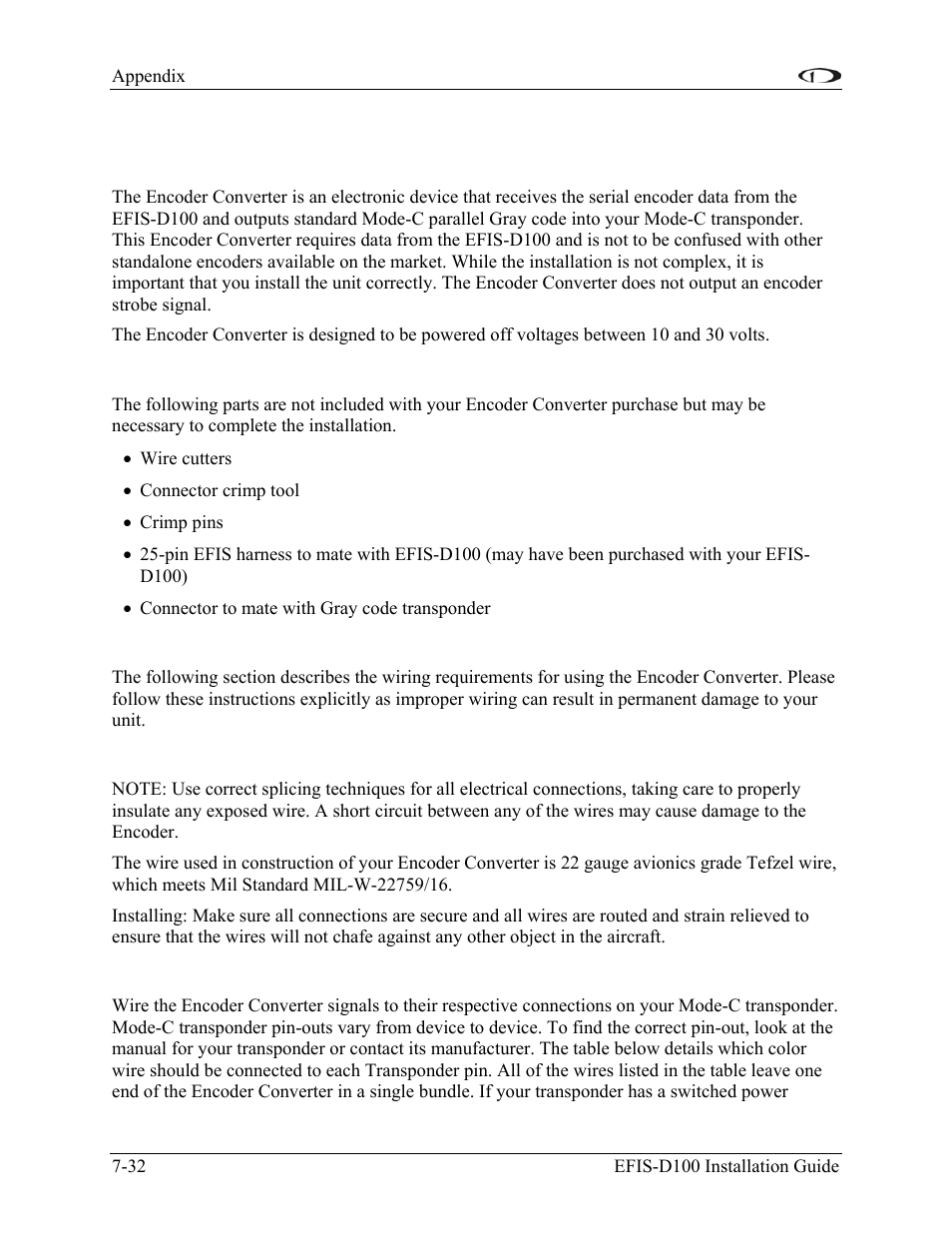

Page 100: Recommended wiring practices, Step 1: transponder wiring
