1 stand alone unit, 2 rack mount installation – CANOGA PERKINS 9119 Rack Mount 100BASE-TX/FX Media Converter User Manual
Page 14
14
Canoga Perkins
9119 Media Converter
2.4.1 Stand Alone Unit
In addition to being placed on a desk top, the 9119 stand alone can be attached to the side of any surface (PC, cabinet, desk,
etc.). An attachment kit is shipped with the 9119 stand alone unit for this purpose.
Wherever the unit is mounted, the decision for the location will include determining a mounting place for a transformer as
well. The power supply is furnished with a 6-foot power cord. The connector for the power supply is located on the rear
panel of the unit.
2.4.2 Rack Mount Installation
Up to twelve 9119 Media Converters can be inserted into a Canoga Perkins Model 9101 LAN Chassis for high-density
installation (see Figure 2-5). For rack-mount applications requiring alarm-relay usage, it is recommended to remove the
relay terminal blocks, connect the alarm leads, and then reinstall after the 9119s are mounted in the rack. Refer to the Model
9101 LAN Chassis User Manual for 9119 installation instructions.

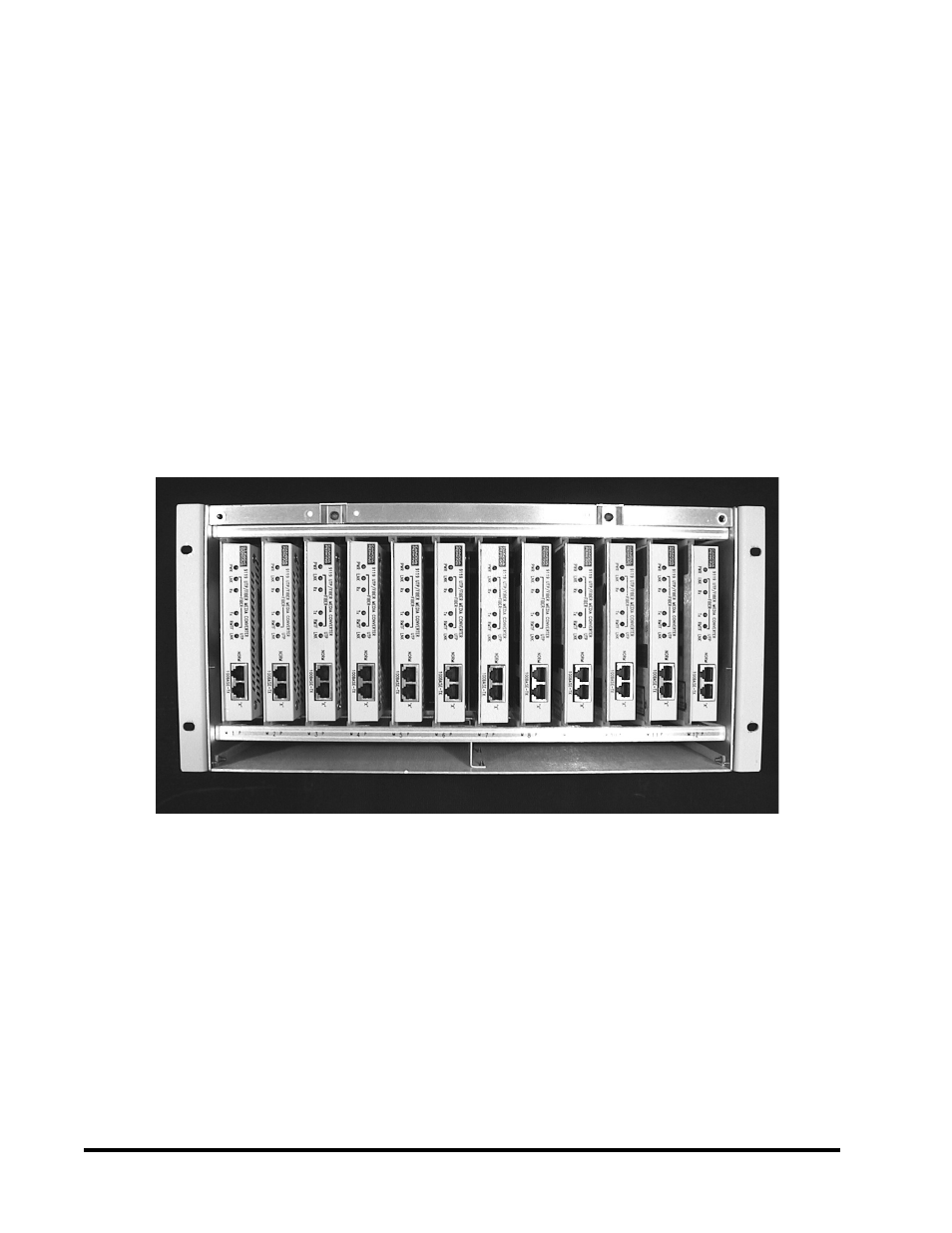

Figure 2-5
9101 LAN Chassis
