2240 Fiber Optic Modem
91
4.10.3 Model T22
The signaling used on this interface is RS-422A. Five TwinAx connectors (BJ-77,
3-lug) are used for the physical connection (see Figure 4-17).
4.10.4 Model T88
The signaling used on this interface is Mil-Std 188-114C. Five TwinAx connec-
tors (BJ-77, 3-lug) are used for the physical connection (see Figure 4-17).
4.10.5 Model D22
The signaling used on this interface is RS-422A. A standard 37-position, D-type
female connector (DC-37) is used as the physical connection (refer to Table 4-V).
4.10.6 Model D88
The signaling used on this interface is Mil-Std 188-114C. A standard 37-position,
D-type female connector (DC-37) is used as the physical connection (refer to
Table 4-V).

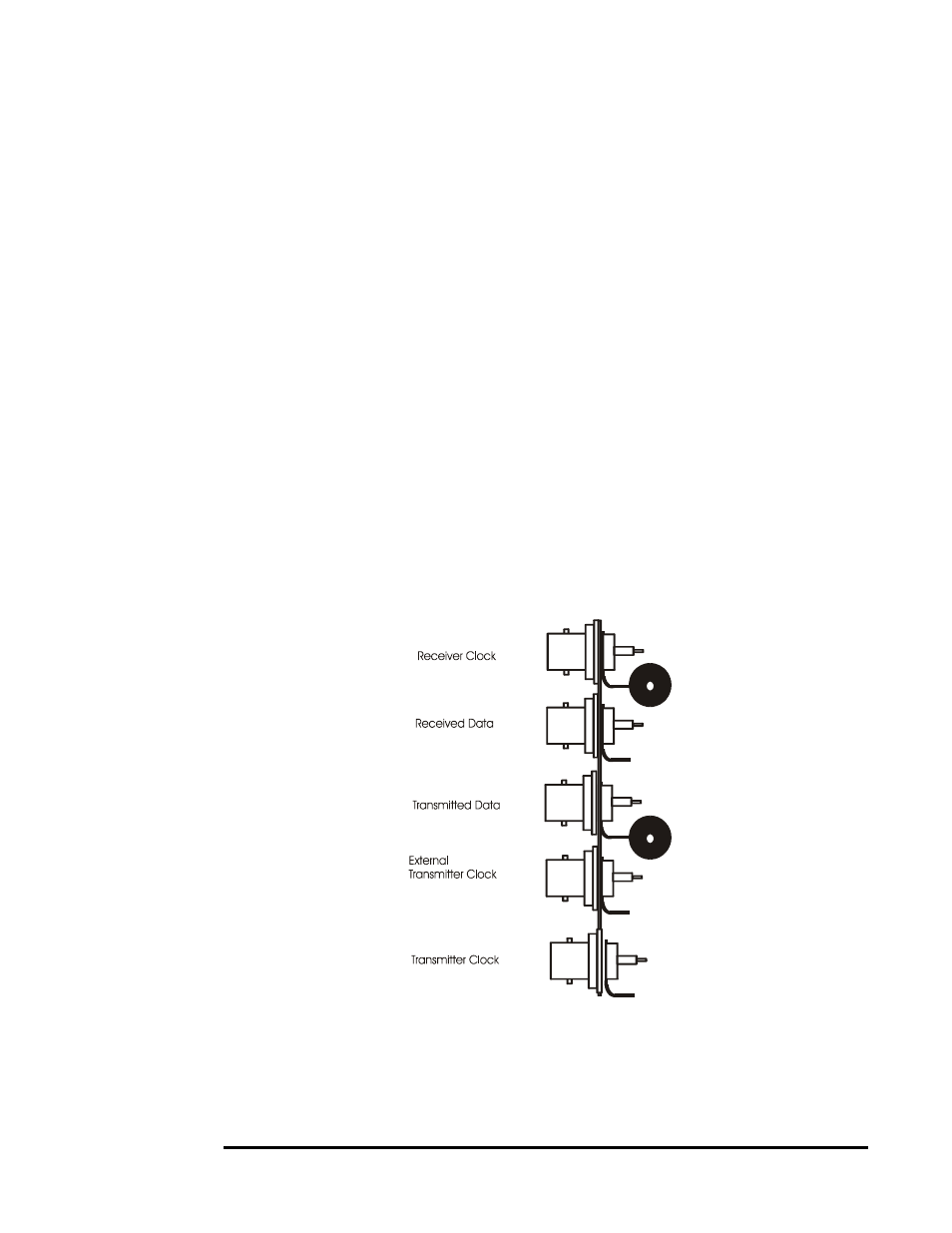

Figure 4-17.
Five TwinAx
Connectors
(BJ-77, 3-Lug)
