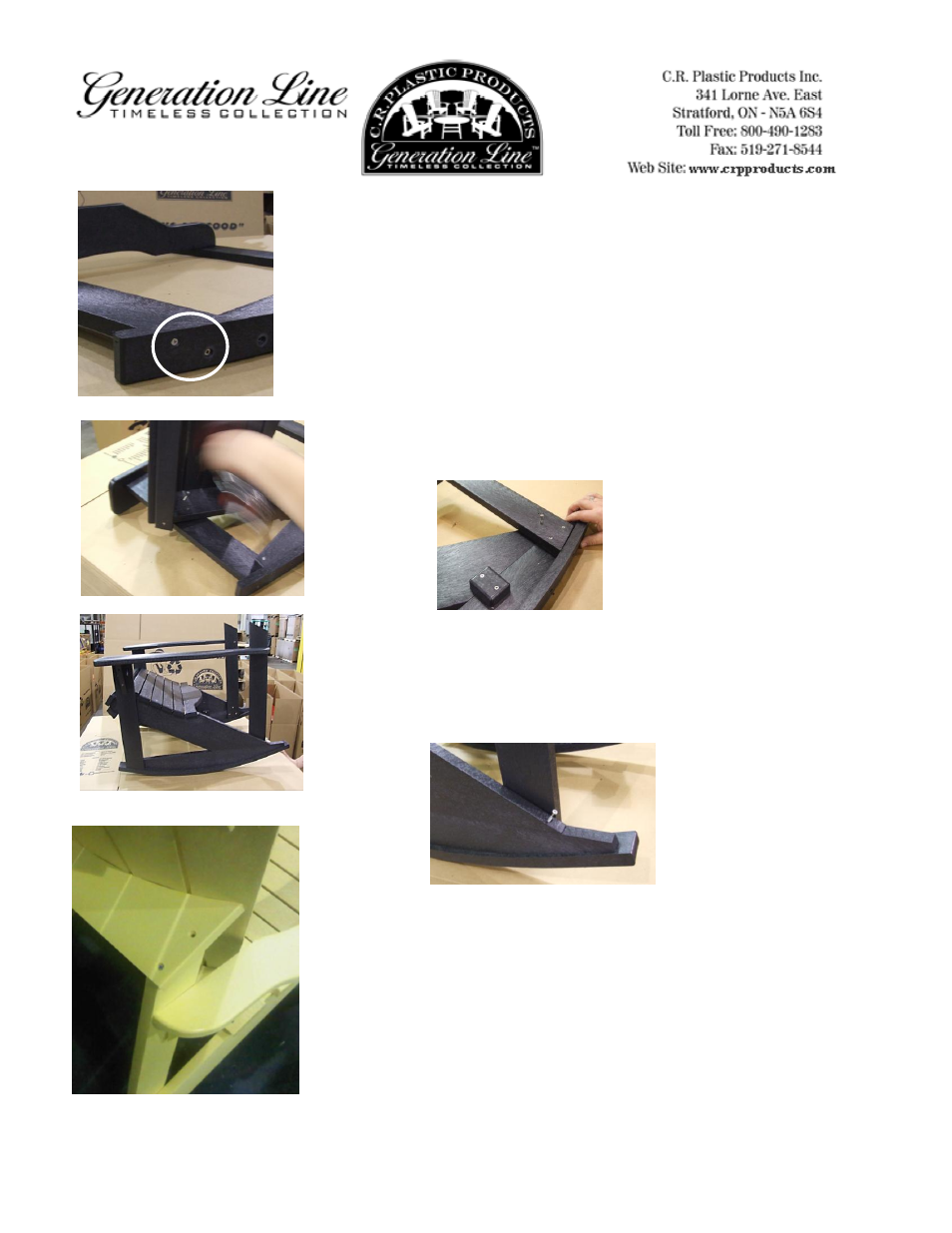

Repeat Steps 3 and 4 for the other Arm and Runner Assembly.
Step 6:When the Seat is fastened to both Arm and Runner assemblies place the
rest of the screws into the Front Legs under the Seat, and at the bottom of the seat
supports. Then stand up the chair and place the screws through the bottom of the
seat supports into the top of the Runners.
Step 5: Lay one Arm and Runner assembly on the ground with the Arm facing
down. Place the Seat (A) with the rear of the side supports under the Rear Leg (F)
and the front of the Seat side on top of the Front Leg(C), and place 1 screw
through the underside of the seat into the proper peck mark on the front leg. Then
place a screw through the support block into the seat support. Place a screw
through the Runner into the seat support and tighten. Flip chair over and repeat for
Note: Care should be taken to not over tighten the screws. Having someone assist during assembly will ease
construction.
With proper assembly our furniture will provide years of enjoyment with little maintenance.
Step 7: Place the Back(B) onto the Seat. Line up the bottom back brace so the
screws will not miss the seat supports. Put one screw in each side. Now centre the
holes on the upper back brace over the tops of the Rear Legs and secure with four
screws. Put the remaining screws into the bottom brace.
Step 4: Place a screw into the Front Leg by placing it in the bottom of the Runner.
Rear Leg, back of
Seat side Support
and Runner Front Leg,
Seat,
Runner
