DELHE-UA User’s Guide

B-1

APPENDIX B

FEPIM SPECIFICATIONS

This appendix provides specifications for the Fast Ethernet (Port)
Interface Modules. Cabletron Systems reserves the right to change these
specifications at any time without notice. The DELHE-UA supports the
following Fast Ethernet (Port) Interface Modules: the DELTX-UI, the
DELFX-UI, and the DELF3-UI.

B.1

DELTX-UI

The DELTX-UI uses an RJ45 connector supporting Category 5
(85 – 111 ohms) Unshielded Twisted Pair (UTP) and Shielded Twisted
Pair (STP) cabling.

The slide switch on the DELTX-UI determines the crossover status of the
cable pairs. If the switch is on the

X

side, the pairs are internally crossed

over. If the switch is on the

=

side, the pairs are not internally crossed

over. Figure B-1 shows the pinouts for the DELTX-UI with the switch in
each position.

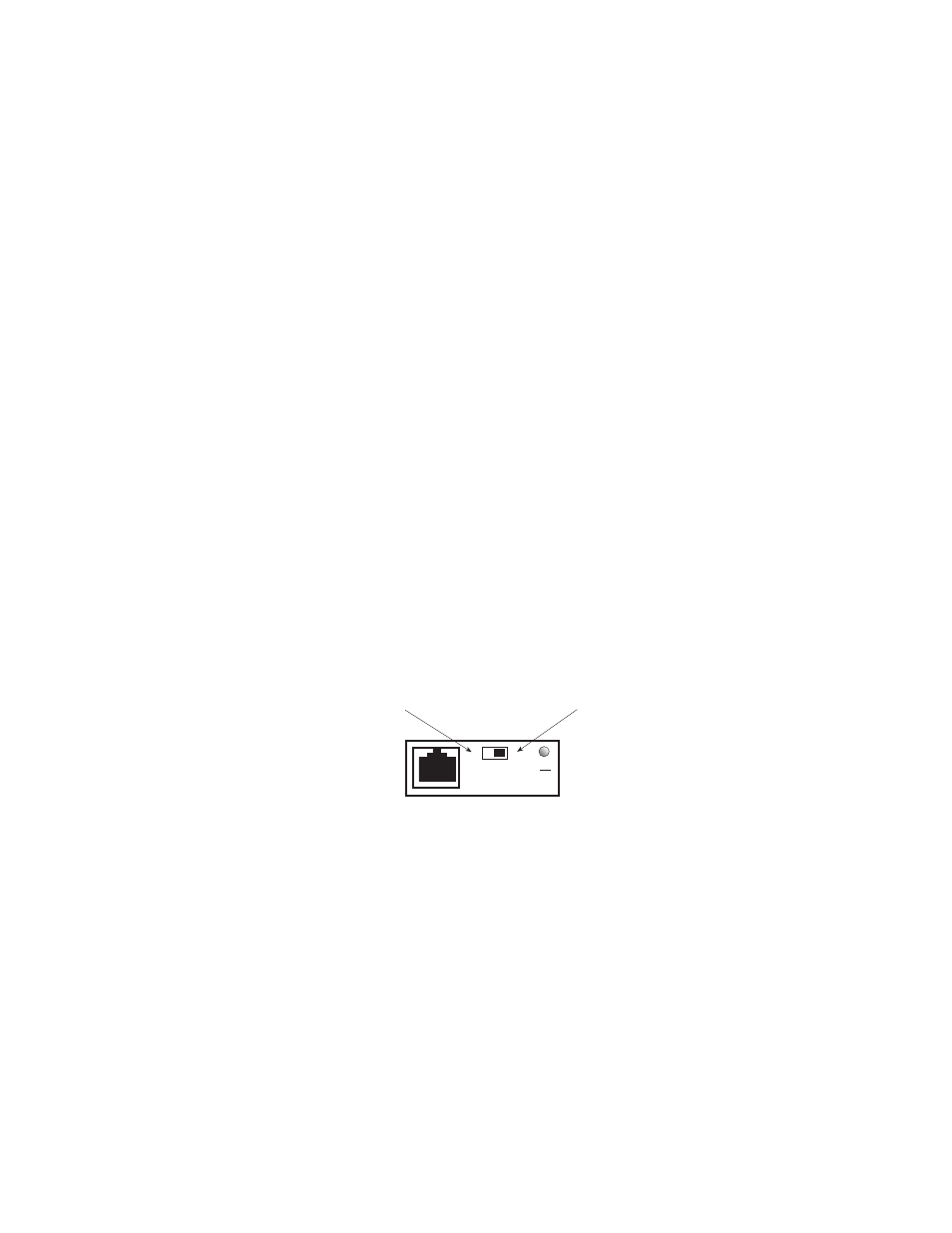

Figure B-1

DELTX-UI Pinouts

DELTX-UI

10

100

=

x

fecrossover

Position =
(not crossed over)

1. TX+
2. TX-
3. RX+
4. NC

5. NC
6. RX-
7. NC
8. NC

Position X
(crossed over)

1. RX+
2. RX-
3. TX+
4. NC

5. NC
6. TX-
7. NC
8. NC
