12
Wire the Burner (GeniSys 7505)
Install the burner and all wiring in accordance with the
National Electrical Code and all applicable local codes or
requirements.
Wire the burner in compliance with all instructions
provided by the appliance manufacturer. Verify operation
of all controls in accordance with the appliance
manufacturer’s guidelines.
See Figure 13 (7505P) for a typical wiring diagram
(for reference purposes only).
Electrical Shock Hazard
Electrical shock can cause severe personal
injury or death.
Disconnect electrical power before installing or
servicing the burner.
Provide ground wiring to the burner, metal control
enclosures and accessories. (This may also be
required to aid proper control system operation)
Perform all wiring in compliance with the National
Electric Code ANSI/NFPA 70 (Canada CSA C22.1). y
y
y
Incorrect Wiring Will
Result in Improper
Control Operation
GeniSys 7505 Control wiring label colors may
not match the wire colors of the burner or other
manufacturers’ controls.
The GeniSys Control should be wired according to
the appliance manufacturer’s instructions. y
y
Fire or Explosion Hazard
Can cause severe injury, death, or property
damage.
The control can malfunction if it gets wet, leading to
accumulation of oil or explosive oil vapors.
Never install where water can fl ood, drip or
condense on the control. Never use a control that
has been wet - replace it. y
y
y
Section: Burner Controls
Display Module:
Permanent device for
programming and diagnostics
Alarm Module:
For adding isolated low voltage
alarm contacts to the base control.
See Alarm Module Instructions for
specifi cations.
Contractor’s Tool:
Hand-held device for
programming and diagnostics
Cad Cell
Connections
Wiring
Connections
Communication Port 2
Reset Button
with Red Light
Communication Port 1
Thermostat Terminals
Green Light
Yellow Light
Optional Components :

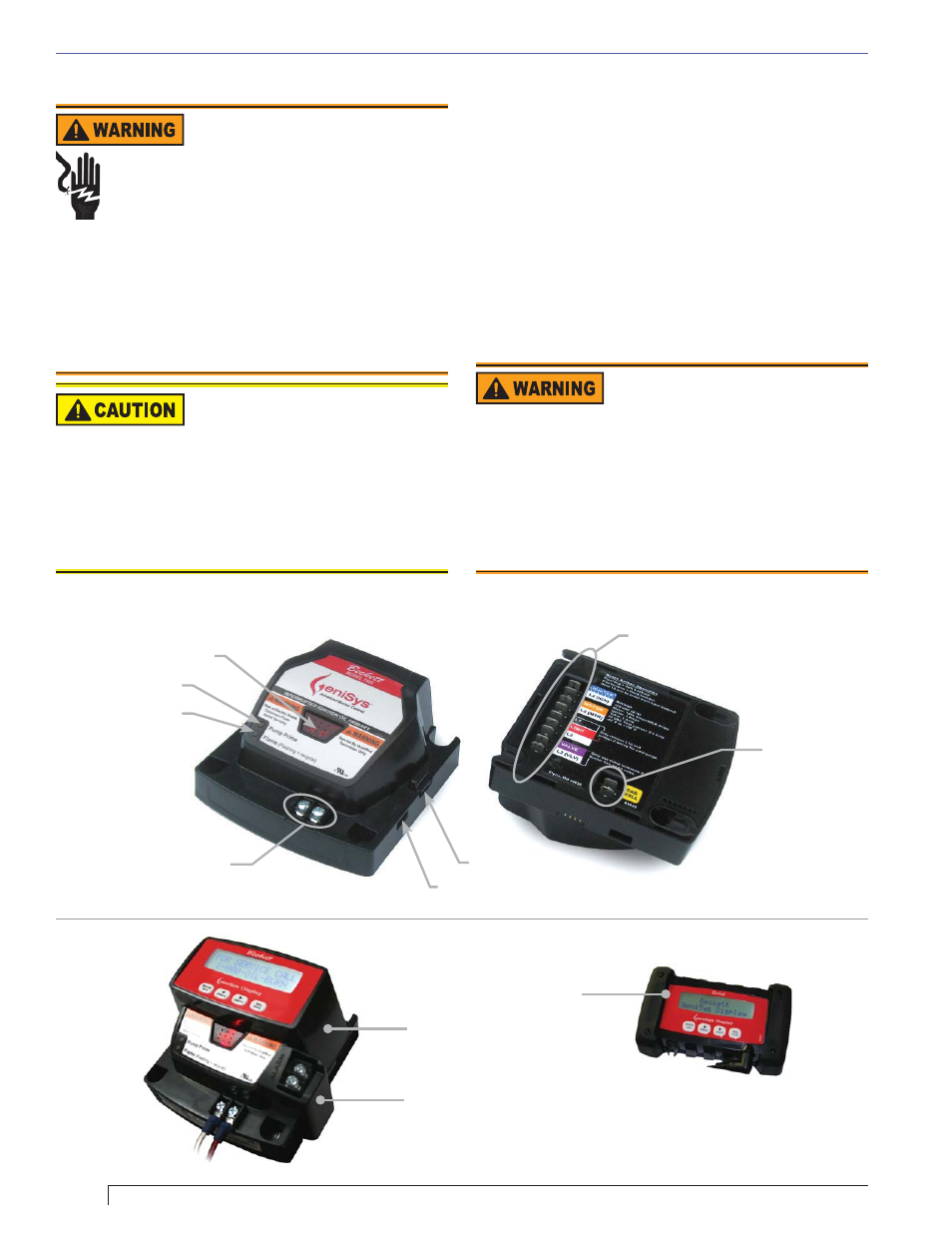

Figure 12 - GeniSys 7505 Control with Optional Components
