MOUNTING INSTRUCTIONS:
• A mounting plate is provided on the back of the strobe light. This mounting

plate is installed on the electrical box between the electrical box and the
strobe light.

• Remove the mounting plate from the back of the strobe light by holding the

mounting plate and twisting the strobe light in the direction indicated by the
"OFF" arrow on the cover.

CAUTION: THIS UNIT IS SEALED. THE COVER IS NOT REMOVABLE! After
selecting the proper strobe light location as described in section 3, and wiring
the AC QUICK CONNECT harness as described in the WIRING INSTRUCTIONS,
attach the mounting plate to the electrical box (see fig. 2).

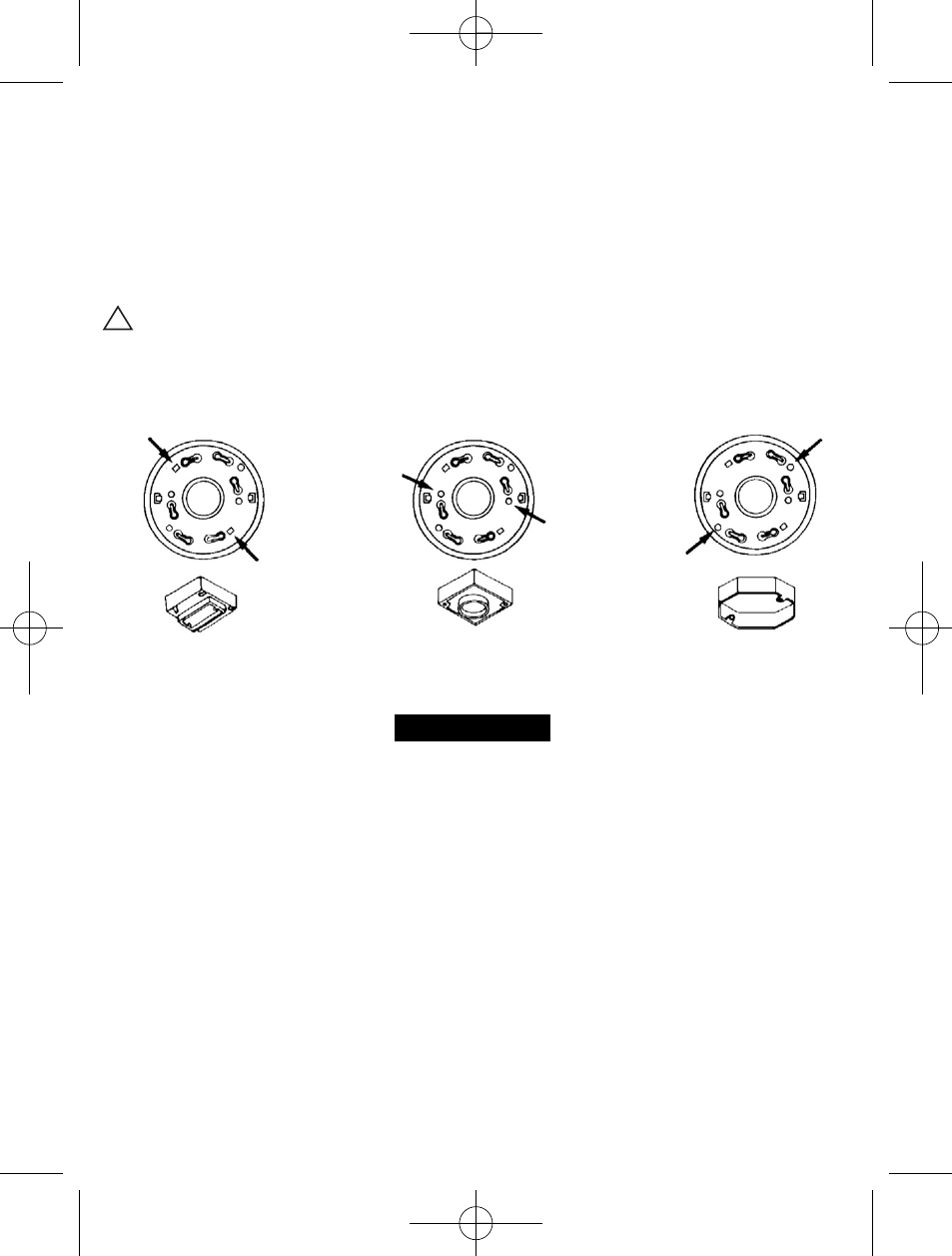

FIGURE 2: SELECT PROPER MOUNTING HOLES ON THE MOUNTING PLATE

• Use a screwdriver to punch out only the pair of holes in the mounting plate

that match your type of electrical box or plaster ring. Mount the mounting
plate to the electrical box using the appropriate holes. NOTE: Use the circle,
square, and octagon markings near each mounting hole in the mounting plate
to help you select the correct mounting holes (see fig. 2).

Rectangular

Plaster Ring

Circular

Plaster Ring

Octagonal

Electrical Box

FIGURE 2

!
