4. The maximum wire run distance between the first and last device in an inter-
connect system is 1000 ft.
5. Figure 1 illustrates interconnection wiring. Improper connection will result in
damage to the strobe light or alarms, failure to operate, or a shock hazard.
6. Make certain that all devices in the interconnect system are wired to a contin-
uous (non-switched, non-GFI or GCFI protected) power line.

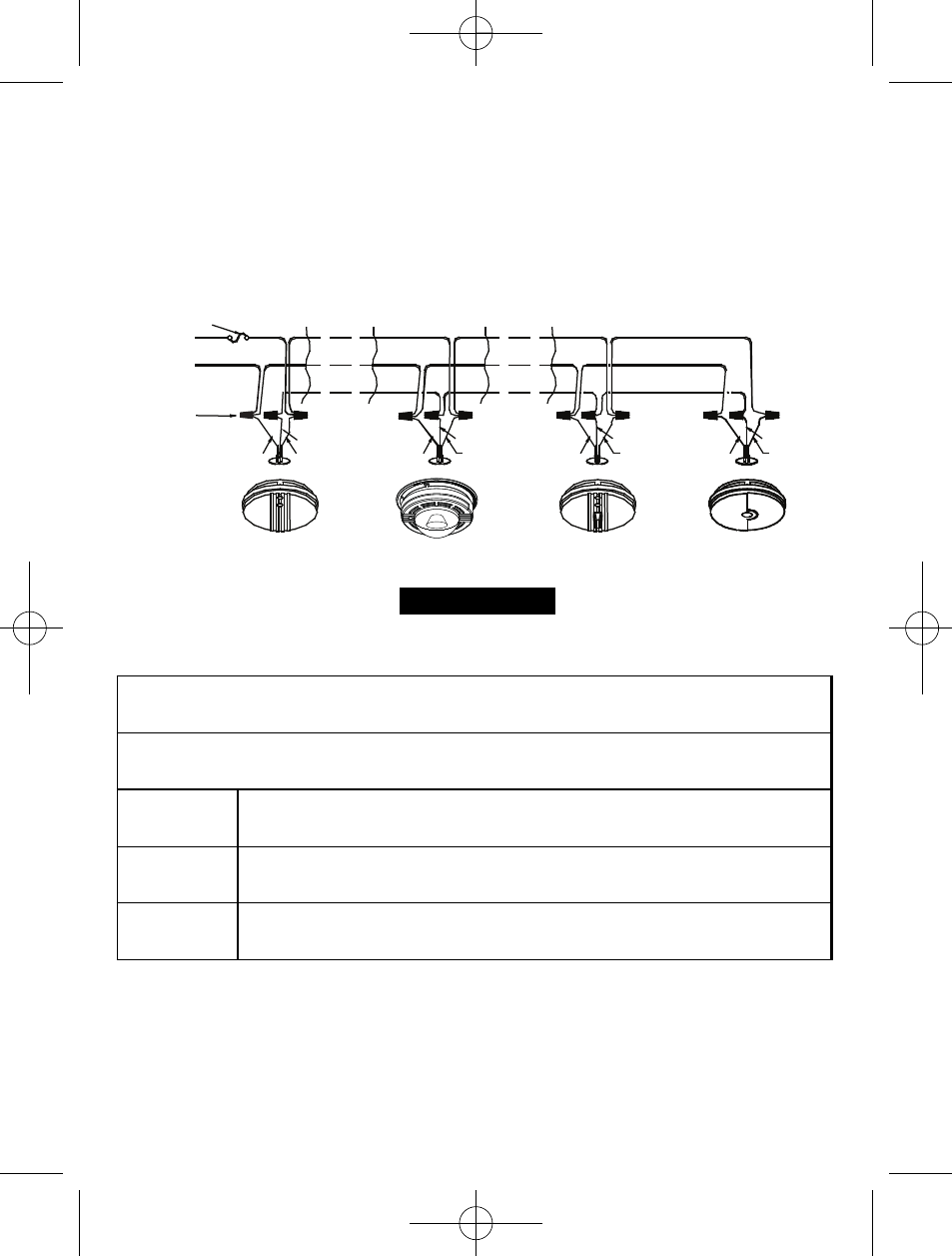

FIGURE 1: INTERCONNECT WIRING DIAGRAM.
N N
L
WIRE NUT WIRE NUT
OR
OR
EQUIVALENT
EQUIVALENT
WHITE WHITE BLACK BLACK
RED RED
WHITE WHITE
RED RED
BLACK BLACK
WHITE WHITE WHITE WHITE
RED RED RED RED
BLACK BLACK BLACK BLACK
FUSE OR CIRCUIT BREAKER FUSE OR CIRCUIT BREAKER
SMOKE ALARM SMOKE ALARM STROBE LIGHT STROBE LIGHT HEAT ALARM HEAT ALARM CO ALARM CO ALARM
FIGURE 1
WIRING OF STROBE AC QUICK CONNECT THREE WIRE HARNESS
WIRES ON ALARM HARNESS CONNECTED TO:
BLACK HOT SIDE OF AC LINE
WHITE NEUTRAL AC LINE
RED
INTERCONNECT LINES (RED WIRES) OF THE OTHER UNITS IN
THE MULTIPLE STATION SET UP
