7. Gently insert the monitor into the bezel.

Press only on the edges of the monitor, not on the screen. You should hear a few
soft clicks as the monitor locks into place.

CAUTION!

NEVER press on the surface of the screen! Gently press on
the edges of the monitor case. If you find that you cannot in-
sert the monitor without excessive force, you may need to check
your wire harness position for interference with the insertion
process. You may also need to make the opening slightly larger.

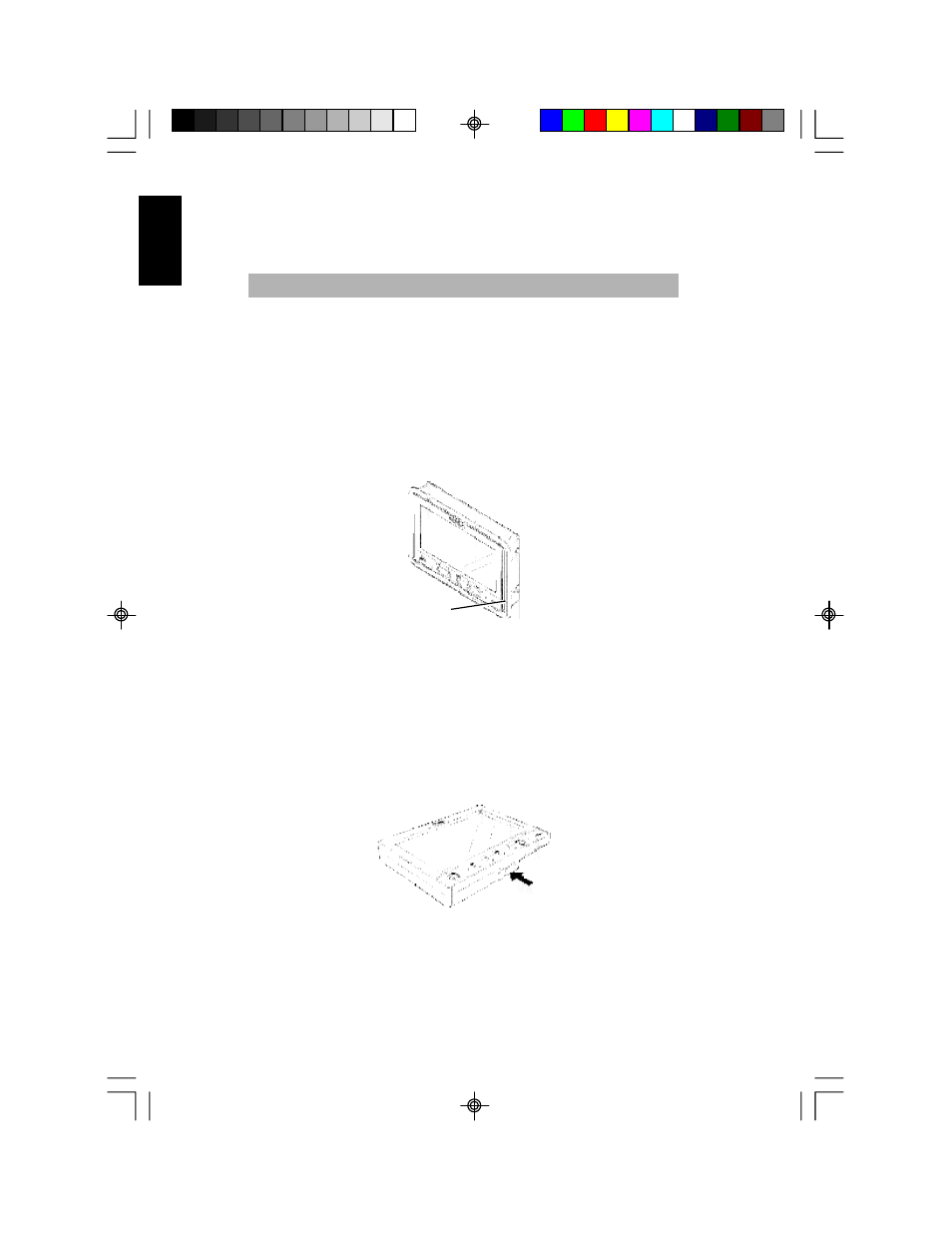

Removing the monitor from the bezel

To remove the monitor from the bezel, insert the flat card (included in the box)
between the monitor case and the side of the bezel to release the spring clips.

Bezel with monitor mounted

Custom mounting using the threaded insert

The monitor base has a threaded insert (1/4 - 20) that can be used with the optional
Clarion ZMT009 gooseneck mounting kit or with a 1/4 -20 machine screw in custom
applications.

Location of the threaded insert

Insert card here
