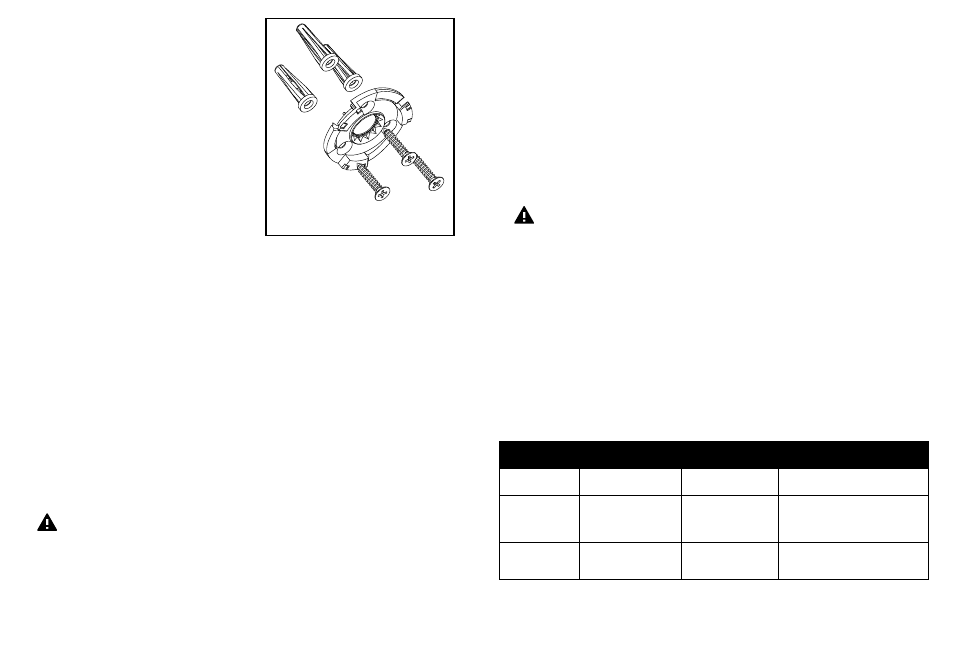

OPTION 2:
Mounting on Other Surfaces
1. Choose a mounting location (wall or
ceiling) and using the mounting plate
provided as a template, mark three-
hole locations.
2. Install the three provided screws
through the mounting plate and tighten.
DO NOT over-tighten screws. (If
mounting in plasterboard or similar
surface, drill 3/16” holes and use the
plastic anchors provided.) Anchors are
not required for mounting on hard
surfaces such as wood.
ATTACHING AND ACTIVATING THE ALARM
This model is equipped with a feature that automatically activates the alarm
when the alarm is attached to the mounting plate for the first time. Once acti-
vated, the battery will supply power to the alarm for the life of the alarm (10
years) under normal conditions.
Align the alarm with the mounting plate and rotate clockwise (right) approxi-
mately 45° until the unit stops and clicks into place. DO NOT over-tighten. If
unit needs to be re-aligned, rotate the alarm counter clockwise, remove and
rotate to desired alignment. NOTE: The alarm will mount to the plate in three
(3) positions (every 120 degrees).
You will know power has been supplied when alarm briefly chirps. Unit will
remain on until unit is disabled by the user at alarm’s end of life. Do not over
tighten the alarm as damage to alarm or mounting surface may occur.
The alarm is now activated! After installation/activation, test your alarm
as described in Operation and Testing section.
Warning: Failure to properly install and activate this alarm
will prevent proper operation of this alarm and will prevent
its response to fire hazards.
Model P3010B will issue a voice prompt at activation asking the user to press
the test button. Proceed to Operation and testing section.
Alarm
Mode
Visual
Indications
Audible
Indications Note:
Smoke or Fire
detected
3 blinks synchronized
with audible alarm
3 long beeps,
repeating
Model P3010L
Smoke or Fire
detected
3 blinks synchronized
with audible alarm
3 long beeps,
repeating with
voice “Fire-Fire”
announced
Model P3010B with Voice
Smoke or Fire
detected
3 blinks synchronized
with audible alarm &
amber light illuminated
3 long beeps,
repeating
Model P3010H with
Emergency Safety Light
If you require further information please contact
Product Support at 1-800-880-6788 or write us at: Kidde, 1016 Corporate
Park Drive, Mebane, NC 27302. Our internet address is www.kidde.com.
5. OPERATION AND TESTING
OPERATION: The alarm is operating once it is activated and testing is complete.
When products of combustion are sensed, the unit sounds a loud 85db pulsat-
ing alarm until the air is cleared.
TESTING: Test your alarm by pressing the test button until the unit chirps, then
release the test button. The unit will then emit 2 sets of three slow beeps.
Model P3010B will also issue a voice prompt stating “Fire Fire”.
Model P3010H will briefly illuminate the amber safety light.
The alarm will sound if the electronic circuitry, horn, and battery are working.
If the alarm does not sound, the unit must be replaced
Warning: Due to the loudness (85 decibels) of the alarm, always
stand an arm’s length (about 2.5 feet) away from the unit or use ear
protection when testing.
Weekly testing is required to ensure proper operation. Erratic or low
volume sound (or no sound) coming from your alarm may indicate a defective
alarm and it should be returned for service. See deactivation section to deter-
mine how to prepare the unit for shipment or disposal.
Warning: DO NOT use an open flame to test your alarm, you could dam-
age the alarm or ignite combustible materials and start a structure fire.
The following tables describes the visual and audible alarm conditions the unit
may encounter and illustrates how the unit will indicate normal standby, alarm
and error conditions.
6. Alarm Visual and Audible Indicators
Mounting
Option 2
