2. After selecting the proper smoke alarm location as described in
section 1, attach the mounting plate to the ceiling as shown in
figure 4. For wall mounting see figure 5. Place mounting plate
on the wall. Use the screws and anchors provided to secure the
mounting plate (use 3/16” drill bit for anchor holes).
3. Battery installation instructions are provided on the inside of the
battery door. To ensure proper installation of the smoke alarm
battery, follow the instructions.
4. When installing the battery, press the battery reminder finger
down into the battery compartment and install the battery (see
figure 6).
CAUTION! IF THE BATTERY REMINDER FINGER IS NOT HELD
DOWN IN THE BATTERY COMPARTMENT BY THE BATTERY,
THE BATTERY DOOR WILL NOT CLOSE AND THE UNIT WILL
NOT ATTACH TO THE MOUNTING BRACKET.
5. After installing the mounting plate, place the alarm on the
mounting plate. Twist the alarm in the direction indicated by
the “ON” arrow on the alarm cover (see figure 7) until it locks in
place.
6. USING TAMPER RESIST LOCKING PIN: To make your smoke
alarm tamper resistant, a locking pin has been provided in the
bag with the screws and anchors. Using this pin will help deter
children and others from removing the alarm from the mounting
plate. To use the pin, insert it into the hole in the side of the
alarm after the alarm has been installed on the mounting plate
(see figure 8).
NOTE: THE TAMPER RESIST PIN
WILL HAVE TO BE REMOVED IN
ORDER TO CHANGE THE BAT-
TERY. USE LONG NOSE PLIERS
TO PULL THE PIN OUT OF THE
HOLE. IT IS NOW POSSIBLE TO
REMOVE THE ALARM FROM THE
MOUNTING PLATE.
7. After installation, test your alarm by depressing and holding
down the test button for at least 5 seconds. This should sound
the alarm.

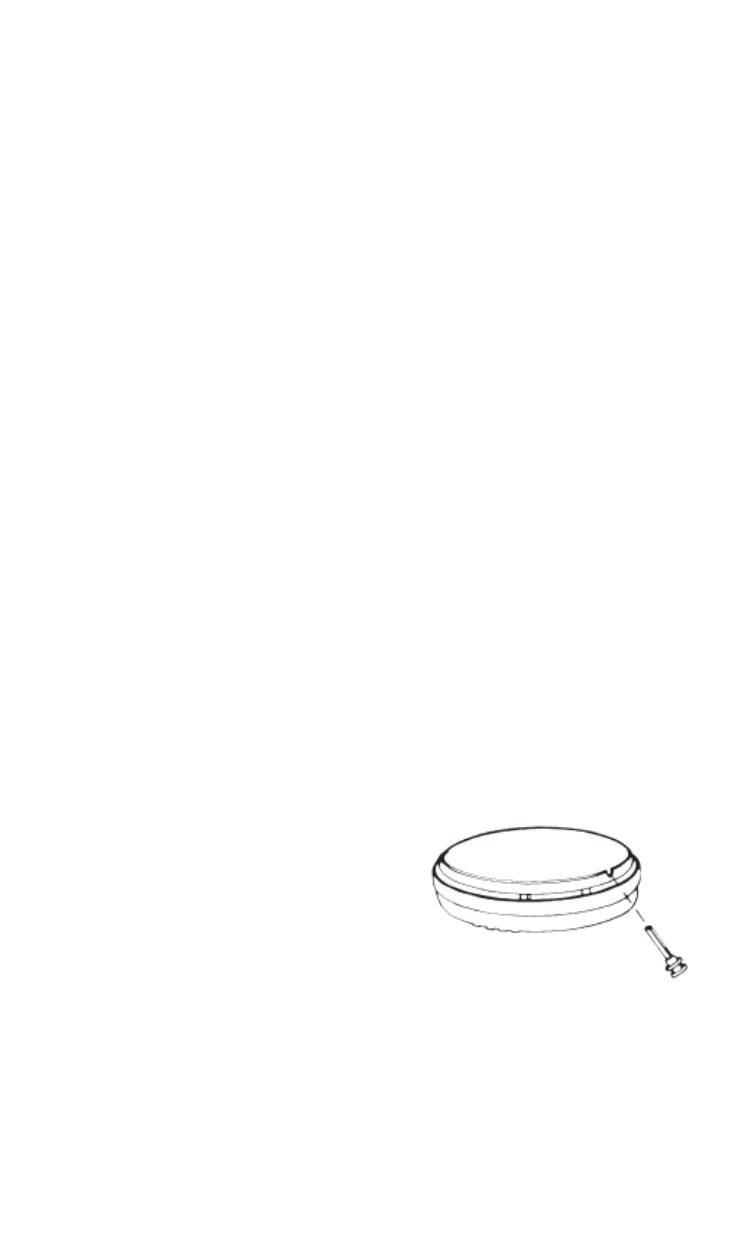

Tamper Resist
Locking Pin FIGURE 8
