PIN

1

2

3

4

5

6

7

8

RS-232

TXD

RXD

RTS

CTS

DSR

SG

DTR

DCD

RS-485

D+

D-

GND

RS-422

RX+

TX+

RX-

TX-

FULL

GND

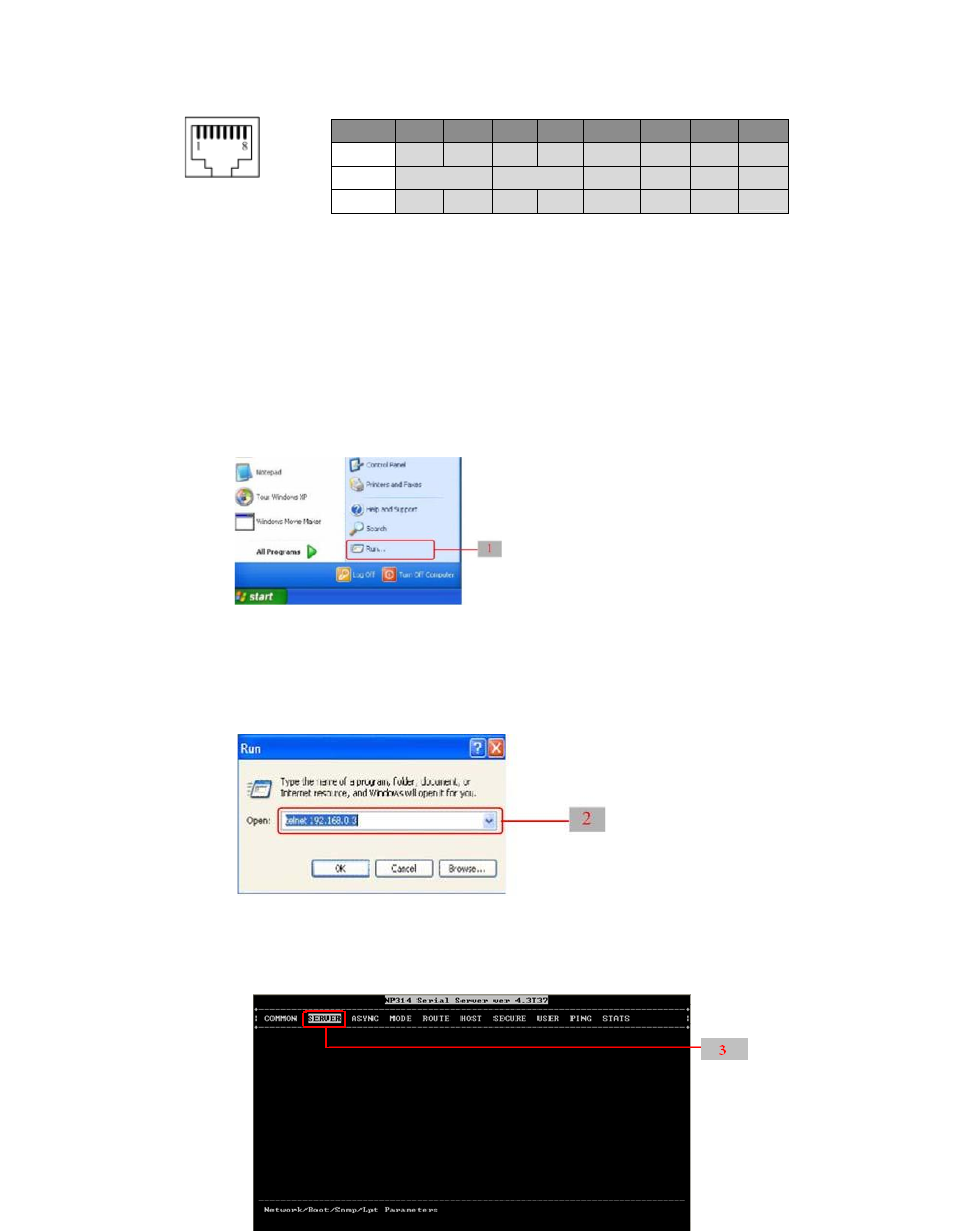

Software installation and setting

1 Set the IP address of the device

The IP address of the device and the PC must in the same subnet network

(the default IP address of the device is 192.168.1.233). First, must make the IP address of

the device in the same subnet network of PC.

If they are not in the same subnet network or the IP address have been used by another device,

Use Telnet change the IP address of the device

1 “Start”------“all programs”------“Running

Input default IP address of the device “Telnet: 192.168.1.233

2. Click “OK”, setting the IP of device by telnet. Choose the menu by

↑↓←→

of the
