Assembly of the front plate and steering rod – OFNA Racing Ultra MBX Pro User Manual
Page 19
0 10 20 30 40 50
mm
3 x 20mm
Flat Head Screw
3 x 20mm Flat Head
Screw
3 x 15mm Screw
3 x 25mm Screw
3mm Flange Nut
( Steel )
Front Steering Rod
( Right )
Front Steering Rod
( Left )
34049
Center Chassis
Brace
( Front )
3x12mm
Screw

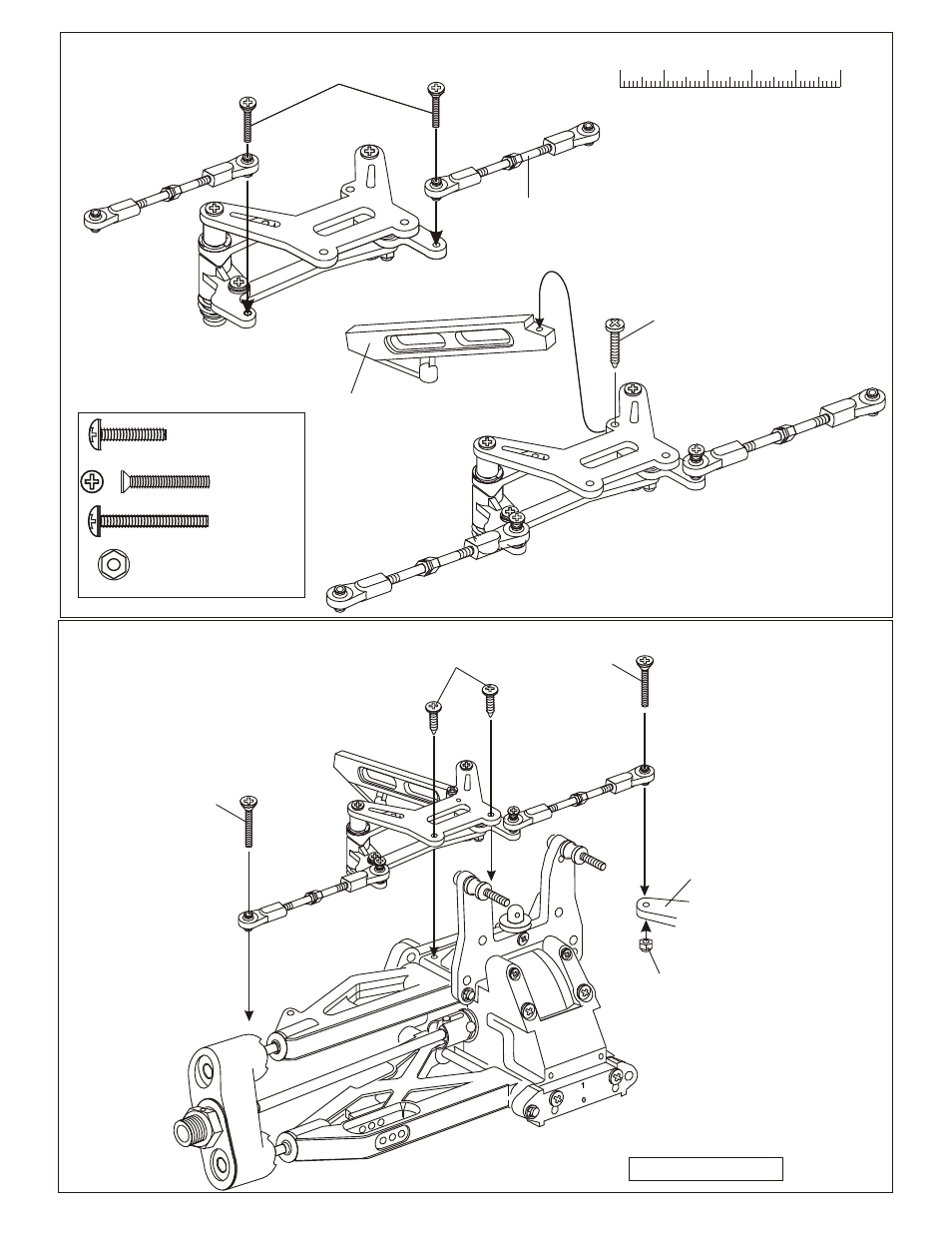

ASSEMBLY OF THE FRONT PLATE AND
STEERING ROD
R
R
3 x 10mm
Tapping Screw
3 x 15mm
Flat Head
Screw
3 x 15mm
Flat Head
Screw
ASSEMBLY OF THE FRONT PLATE
ONTO THE FRONT GEAR BOX
Assembly of the right and left hand side
are the same.
3mm
Nylon Lock Nut
Knuckle Arm
( Left-Side )
