Assembly of the wing support, Assembly of the wing stay onto the shock tower – OFNA Racing Ultra MBX Pro User Manual
Page 17

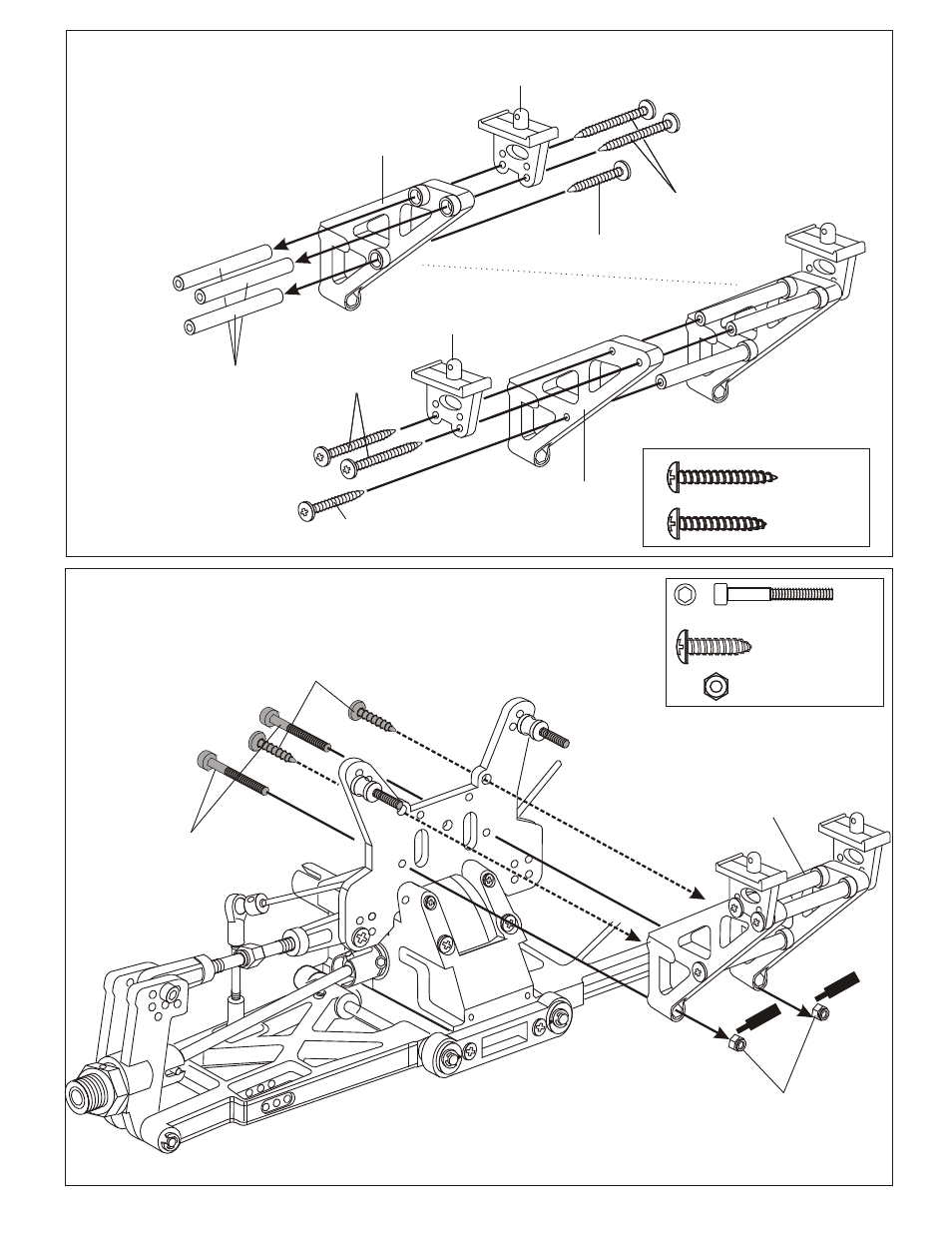

ASSEMBLY OF THE WING SUPPORT
3 x25mm
Tapping Screw
3 x25mm
Tapping Screw
3 x 20mm
Tapping screw
3 x 20mm
Tapping screw
30271
Wing Support
30270
Wing Support
30271
Wing Support
30270
Wing Support
30270
Plastic Post
3 x 25mm
Tapping Screw
3 x 20mm
Tapping Screw
3 x 25mm
Tapping Screw
3 x 20mm
Tapping Screw
30270
Rear Wing Support Kit
ASSEMBLY OF THE WING STAY ONTO THE SHOCK TOWER
90019
3 X 25mm Cap Screw
4 x 15mm Tapping Screw
35313
M3 Nylon Locknut
Wing Stay
Assembly
* Insert 3mm nylon lock Nut
into win stay.
3 x 25mm
Cap Screw
4 x 15mm
Tapping Screw
3mm
Nylon Lock Nut
Scr
ew
Cem
ent
Scr
ew
Cem
ent
