OFNA Racing Ultra MBX Comp User Manual
Page 8
94005
3X15mm
Hex Screw
94005
3X15mm
Screw
36660
Brake Pad
36661
Brake Pad
Linings
36650
Brake Disk
Steel
36650
Brake Disk
Steel
0.5mm
*Leave a 0.5mm space
between brake disk and
brake pad.
30211
Plastic Bushing
30212
Ball Bearing
30213
Brake Cam
30652
Center Diff.
Plate
94004
3X12mm
Hex Screw
30211
5x8x2.5mm
Plastic Bushing
94033
M3x3 Set Screw
X2
X2
94005
3X15mm Hex Screw
X4
94004
3X12mm Hex Screw
X4
94033
M3x3
Set Screw
30171
Brake Lever
* Remove the double-side tape
before assembly.

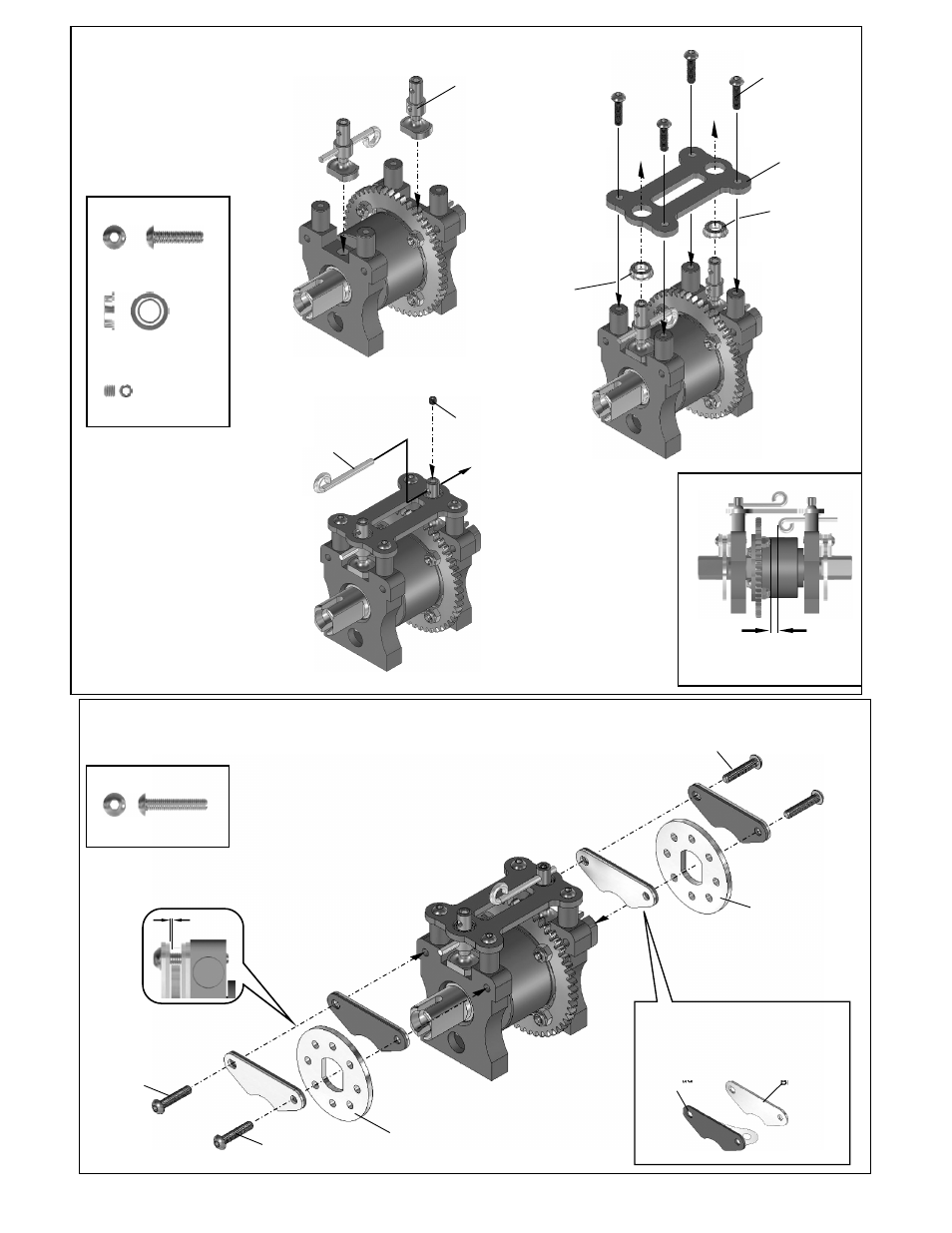

ASSEMBLY OF THE BRAKE CAM AND BRAKE PADS
*Leave 3mm gap
between the brake cam
and nut.
3mm
Note:
ASSEMBLY OF THE BRAKE CAM AND CENTER PLATE
ASSEMBLY OF THE BRAKE PADS
30211
Plastic Bushing
30212
Ball Bearing
94005
3X15mm
Screw
