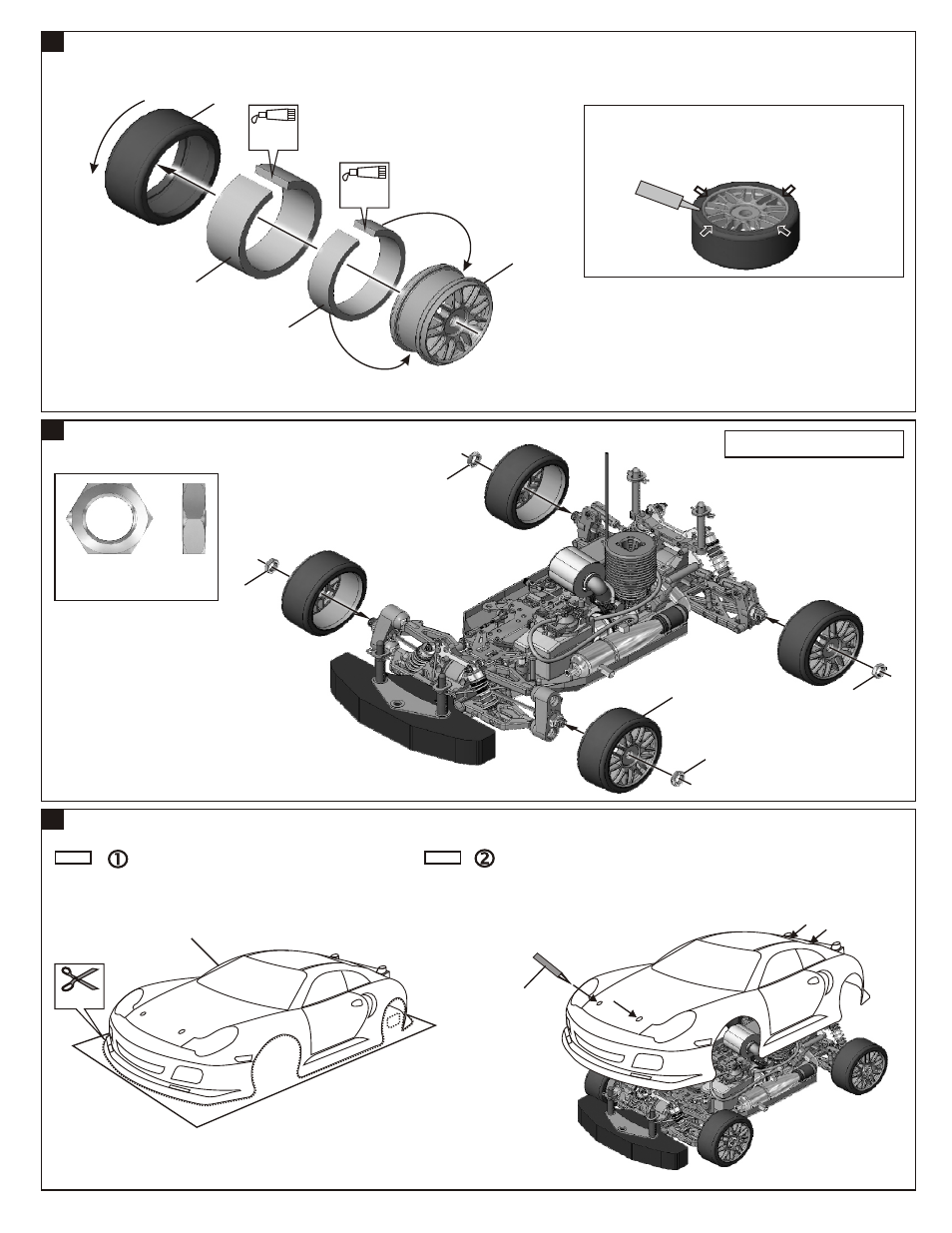

ASSEMBLY OF THE TIRES AND WHEELS

86026

86059
Inner Sponge
(WidE)

86050

86059
Inner Sponge
(Narrow)

Contact
Adhesive

*Pull back the tire bead slightly and spot glue in four spots as
shown. When dry, glue the rest of the wheel between the spots.
Repeat the procedure on the other side of the wheel until fully
glued.

ASSEMBLY OF THE BODY

ASSEMBLY OF THE WHEELS ONTO THE FRONT KNUCKLE AND REAR HUB

40550

Assembly for both right and left side.

Tire and wheel
assembly.

40550
Wheel Nut

.....x4

40550

Step 1

Step 2

Cut out the body as shown.

Before cutting and making holes in the body, put the unpainted body on the chassis to
confirm the mounting position and location for holes.
Use body reamer or drill to make two 8mm holes in the front and two 8mm holes in the rear.

Body Reamer
(Not included.)

Cut Out

31139

10239

91009
