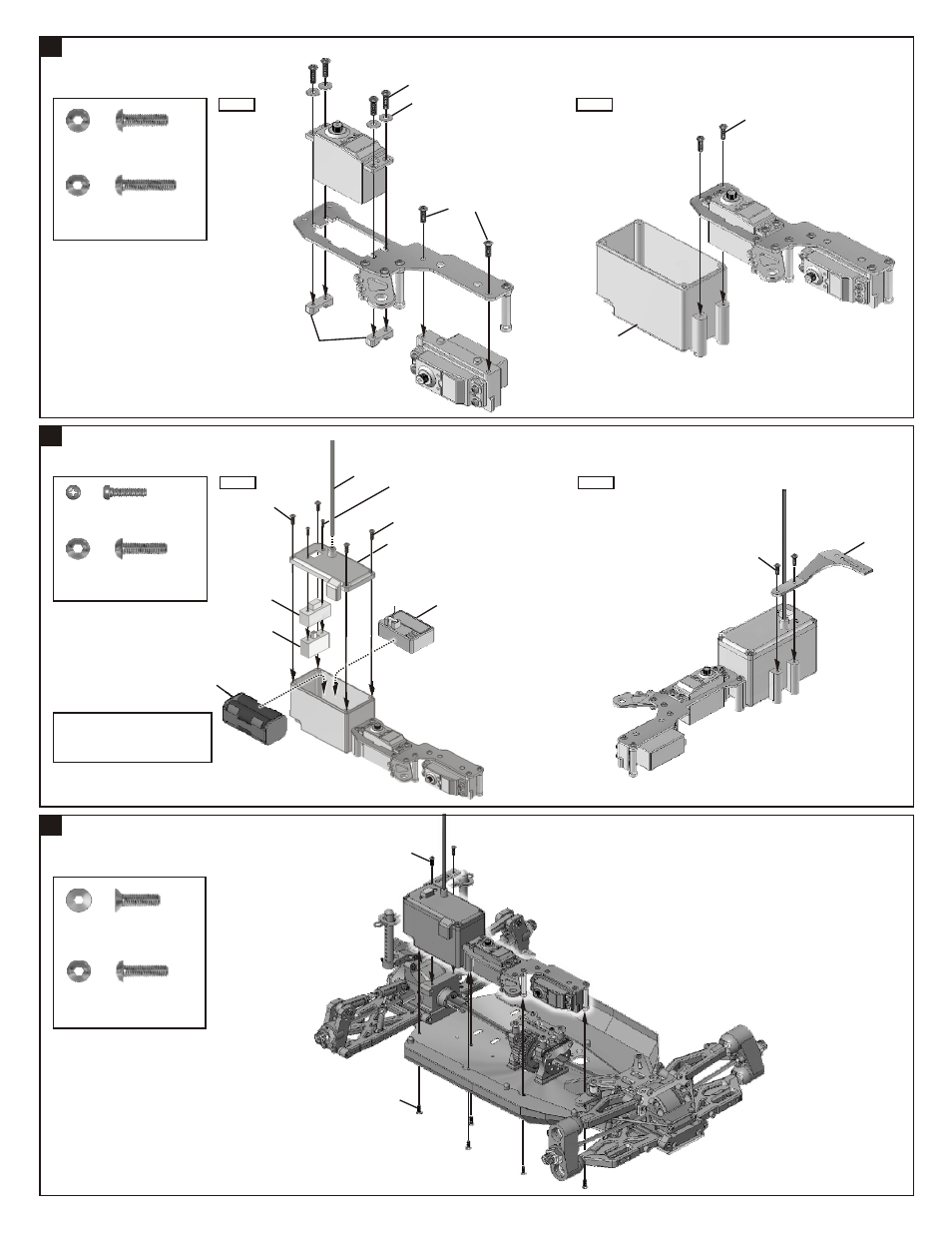

ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS

11

94018
3x10mm
Flat Head Hex Screw

.....x5

3x10mm

3x10mm

94003
3x10mm
Hex Screw

.....x2

ASSEMBLY OF THE RADIO TRAY AND RECEIVER BOX

Step 1

Step 2

3x10mm

30560

3x10mm

34013

10282

30647

3x10mm

94003
3x10mm
Hex Screw

.....x6

2X8mm
Screw

.....x2

Battery

Receiver

*Use the screw provided
with your switch

*Put the servo wire into
receiver box and connect to
receiver.

Switch

*Use the original battery case or
rechargeable hump pack battery.

*Connect battery wire to switch.

ASSEMBLY OF THE FRONT SERVO AND RADIO TRAY

94003
3x10mm
Hex Screw

.....x4

Step 2

Step 1

3x12mm

3x8x0.8mm

3x10mm

94004
3x12mm
Hex Screw

.....x4

34026

3x10mm

34013
