OFNA Racing Nexx10sc User Manual
Page 23
43
45

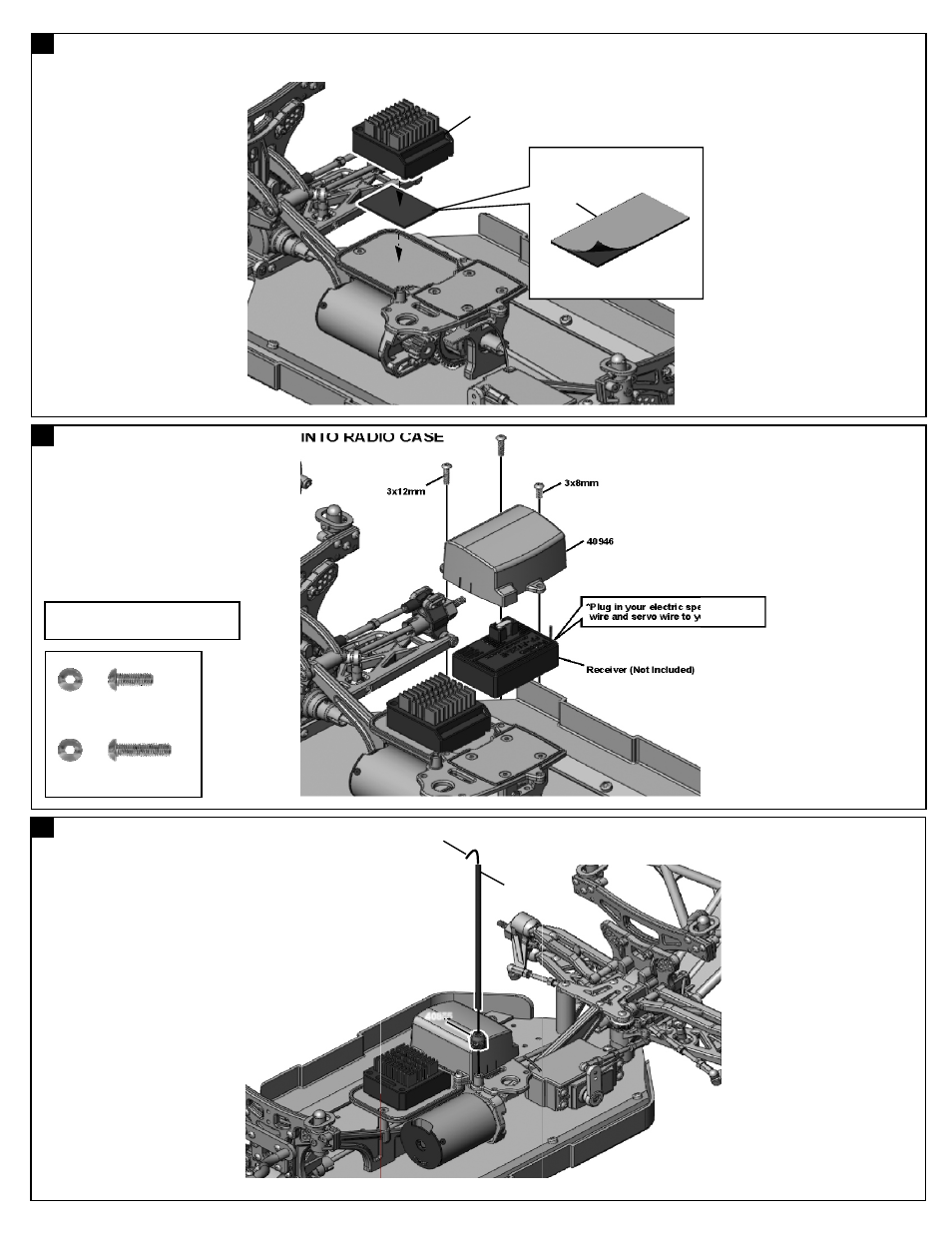

ASSEMBLY OF THE ELECTRIC SPEED CONTROLLER ONTO CONTROLLER MOUNT
ASSEMBLY OF THE RECEIVER INTO RADIO CASE
ASSEMBLY OF THE ANTENNA TUBE
44
94002
3x8mm
Hex Screw
.....x1
30560
Antenna Wire
94004
3x12mm
Hex Screw
.....x2
Electric Speed Controller (Not Included)
40946
3x12mm
3x8mm
Receiver (Not Included)
40855
*To assemble your personal transponder
see page 21.
*Plug in your electric speed controller
wire and servo wire to your receiver.
37420
*Use double-sided tape to secure
your Speed Controller.
Peelr off paper before use.
