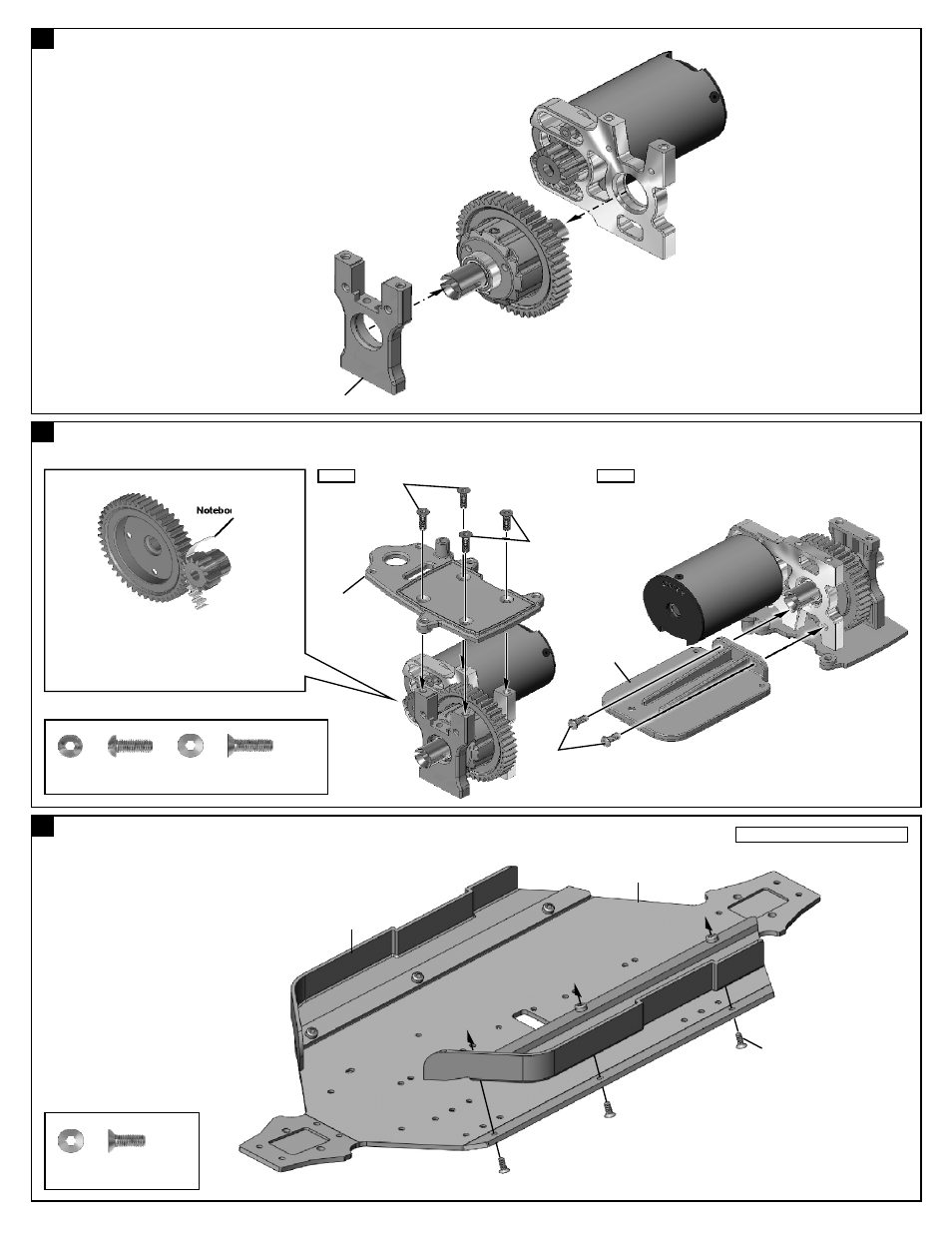

36

ASSEMBLY OF THE STONE GUARD

94017
3x8mm
Flat Head Hex Screw

.....x6

Assemble both right and left sides.

3x8mm

40975

40971

34

ASSEMBLY OF THE MOTOR MOUNT

35

ASSEMBLY OF THE CENTER DIFF. PLATE

Step 2

Step 1

40844

Notebook paper

*Use notebook paper to set gear backlash between
spur gear and pinion gear, apply pressure
while tightening the motor and then pull out the
paper.
*If the gear backlash is not correct, the spur gear
will be damaged.

94002
3x8mm
Hex Screw

.....x2

94019
3x10mm
Flat Head Hex Screw

.....x4

3x10mm

3x10mm

3x8mm

40946

40946
