OFNA Racing Nexx10sc User Manual

Page 11

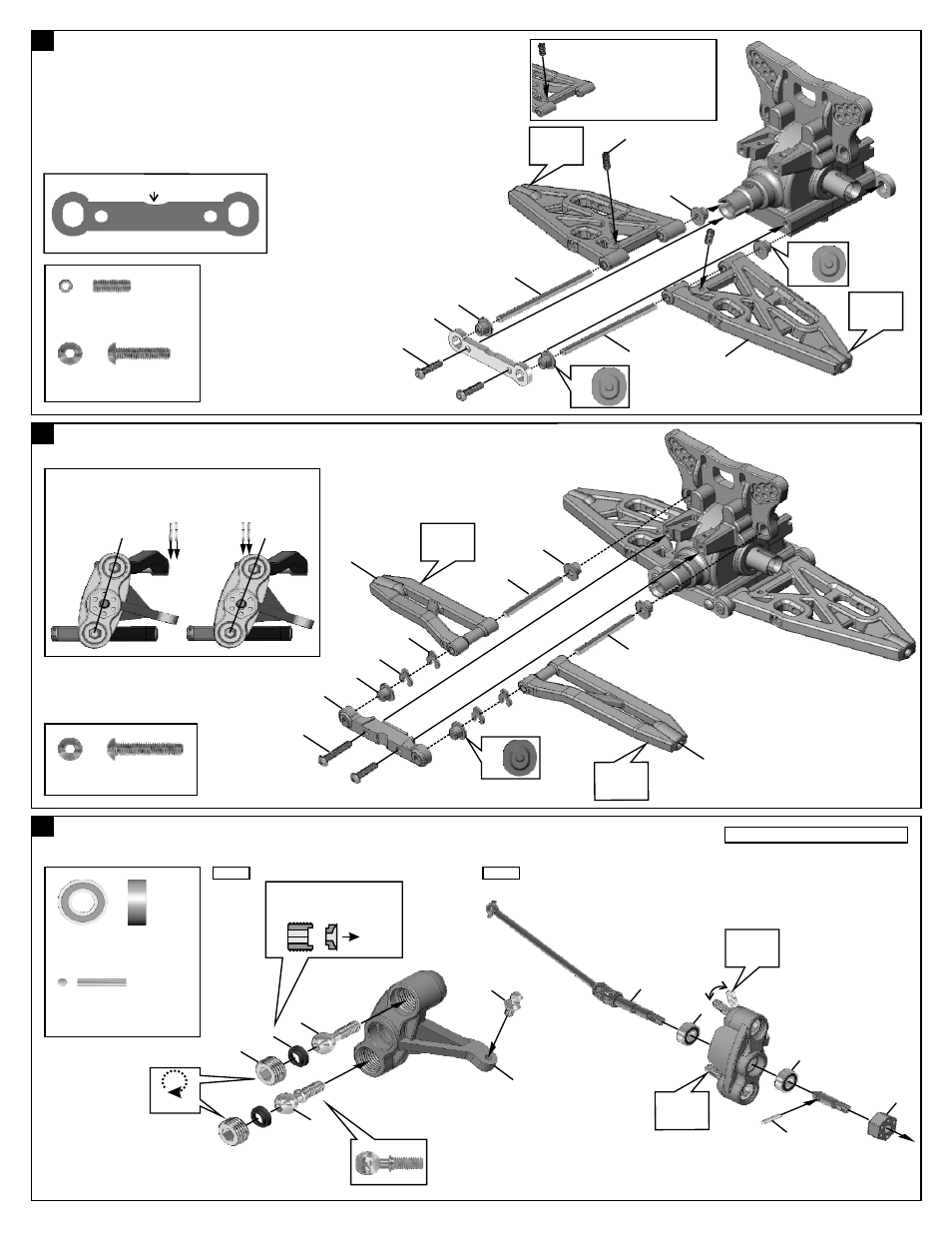

ASSEMBLY OF THE FRONT LOWER ARMS

ASSEMBLY OF THE FRONT UPPER ARMS

ASSEMBLY OF THE KNUCKLE ARMS

Assemble for both right and left side.

Step 2

Step 1

3x8mm

3x12mm

40813

40825

40931

94035
3x8mm
Set Screw

.....x2

94004
3x12mm
Hex Screw

.....x2

94005
3x16mm
Hex Screw

.....x2

37430
5x11mm Ball Bearing

.....x4

1:1

.....x2

Ensure
Free
Movement

* Notice the direction of the front lower arm holder
in rear.

3x15mm

40930(Left Side)

Ensure
Free
Movement

1:1

Ensure
Free
Movement

* A 3x8mm set screw is used to
adjust Droop.

37430

40875

40840

37390

Ensure
Free
Movement

37360

*Notice the direction of the
plastic washer.

Do Not
Over Tighten

40930
(1mm)

40930

39140

40932

39150

40932

40934

40933

40930
(1mm)

40930(Right Side)

*Adjust the caster angle by changing the position of the
caster angle spacer on the top arm.
*Caster angle adjustments can be made from 20 degrees
to 24 degrees.

20 Degree

24 Degree

37390
2x10.8mm Pin
