31

32

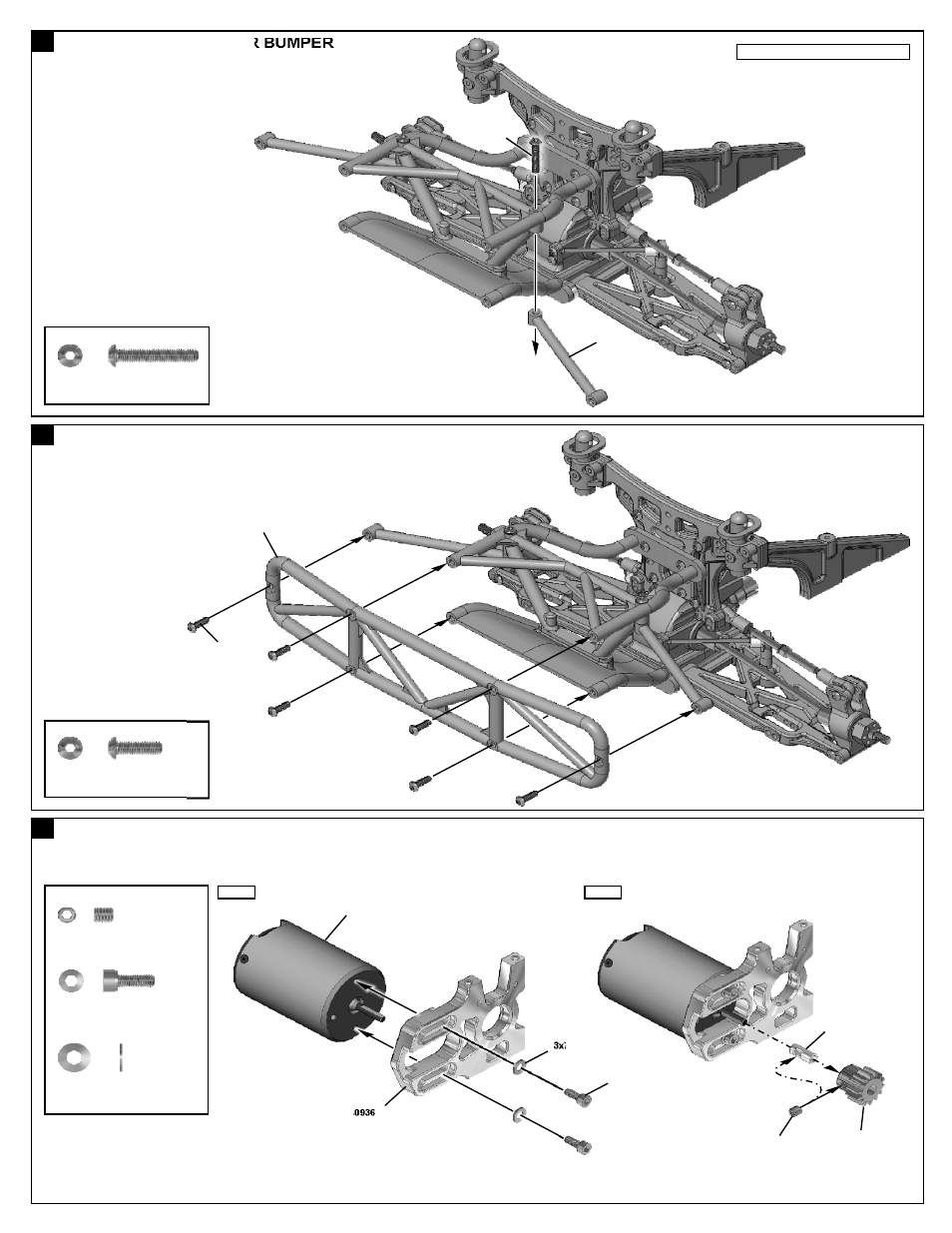

ASSEMBLY OF THE REAR BUMPER

ASSEMBLY OF THE REAR BUMPER

40944

3x18mm

94003
3x10mm
Hex Hex Screw

.....x6

94006
3x18mm
Hex Hex Screw

.....x2

3x10mm

40944

Assemble both right and left sides.

33

MOTOR INSTALL

Step 1

Step 2

94056
3x8mm
Cap Screw

.....x2

3x7x0.5mm

4x4mm

30669

94034
4x4mm
Set Screw

.....x1

30664 (13T) STOCK
30665 (14T)
30666 (15T)
30667 (16T)
30668 (17T)

40936

Motor (Not included)

3x8mm

94061
3x7x0.5mm
Washer

.....x2
