OFNA Racing Jammin SCRT Electric User Manual
Page 23

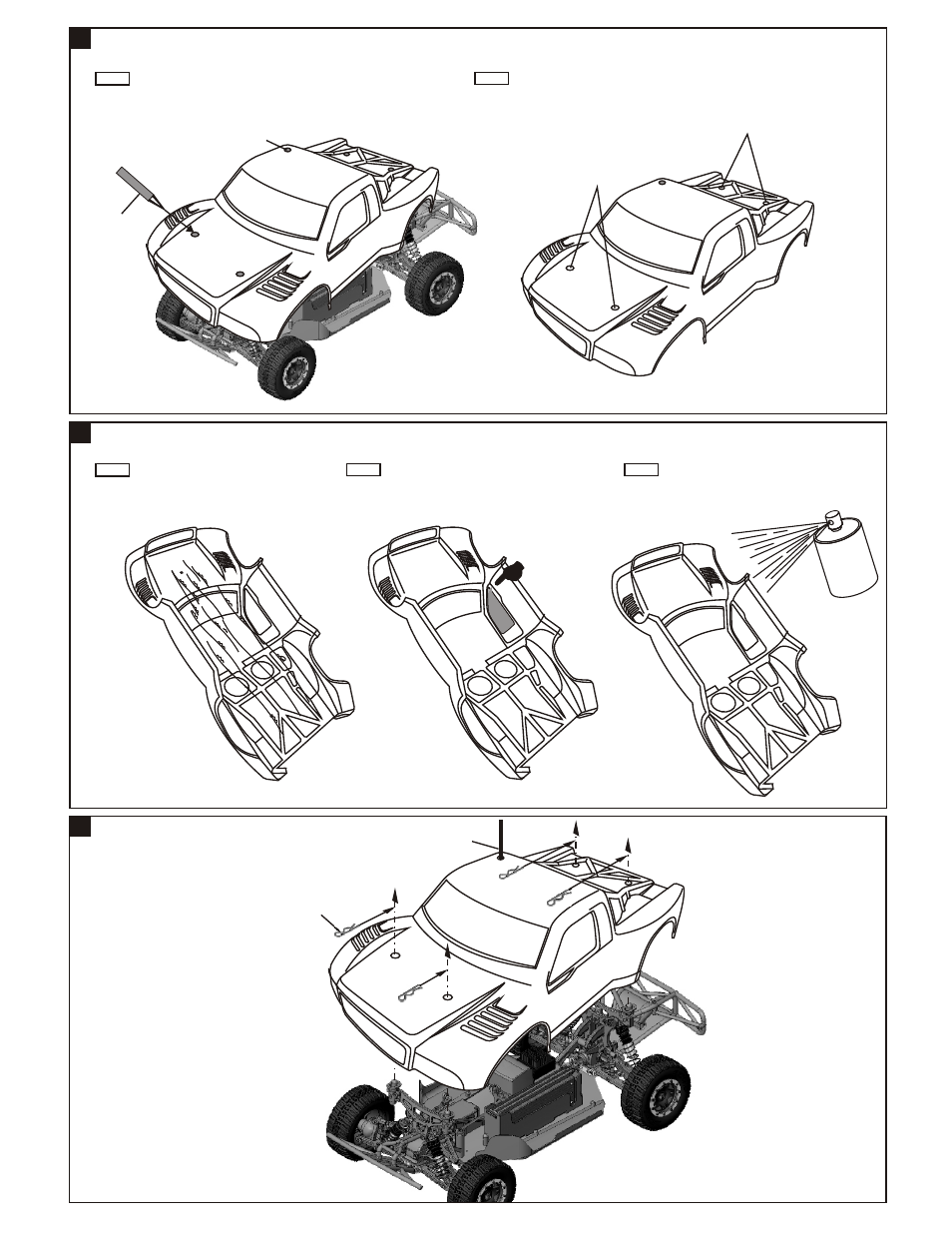

Step 2
*Use body reamer or drill to make two 8mm holes in the front and two 8mm holes in the rear.
Step 1
*Before cutting and making holes in the body, put the unpainted body on the chassis
to confirm the mounting position and location for the holes.
10803 BLACK
10804 BLUE
10805 PURPLE
Body Reamer
(Not included.)
8mm
8mm
57
58
59
ASSEMBLY OF THE BODY
BODY PAINTING
MOUNTING BODY
19
31159
Step 2
*
Mask the windows from the inside with masking tape.
Step 1
*
Use a neutral detergent to remove any dirt and oil.
Step 3
*
Paint the body with polycarbonate spray paints.
Spray Paint
* For antenna.
Antenna
