OFNA Racing Jammin SCRT Electric User Manual

Page 21

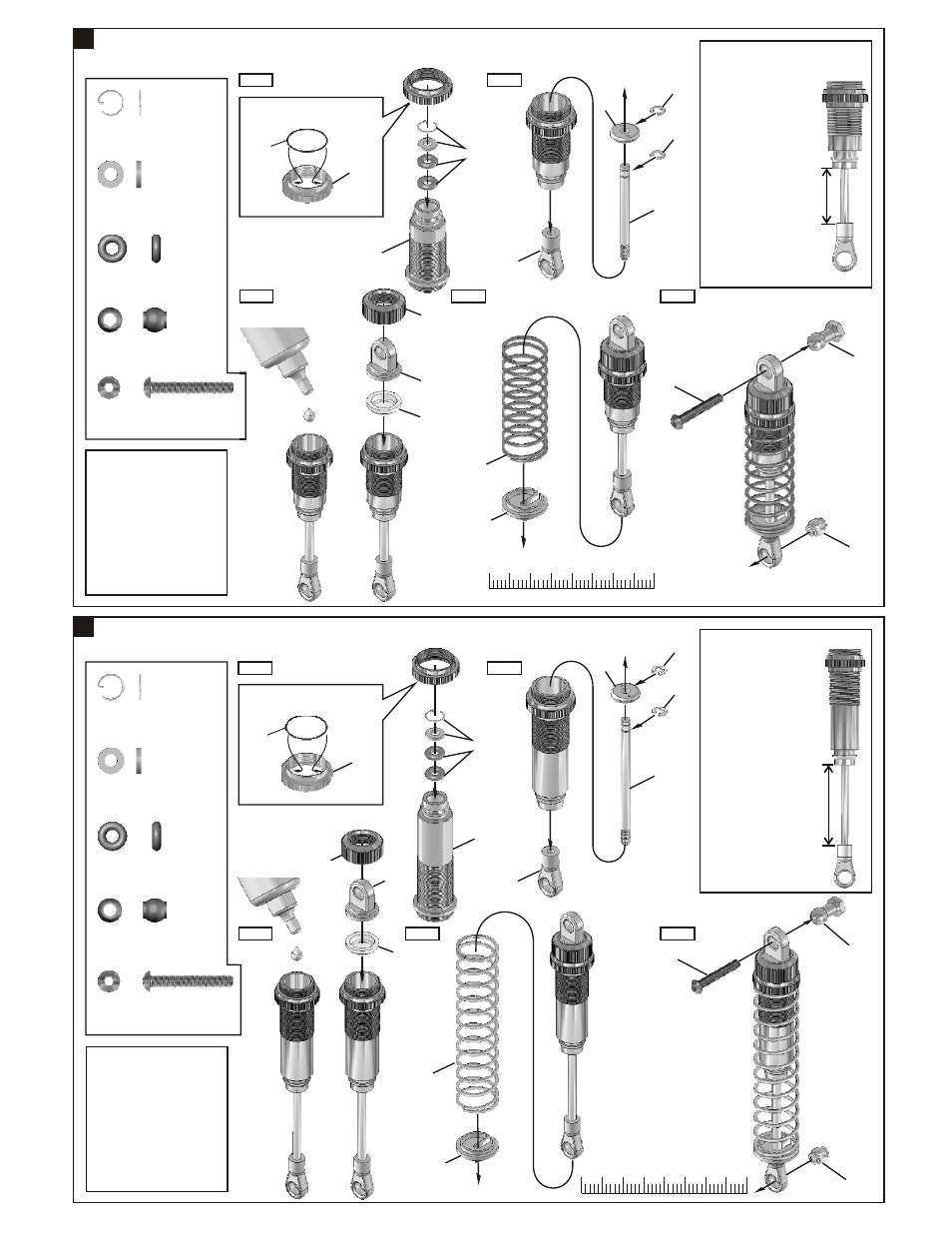

ASSEMBLY OF THE FRONT SHOCKS

ASSEMBLY OF THE REAR SHOCKS

Step 1

Step 2

Step 3

Step 4

*Fit the o-ring into groove before
assembly.

*Fill the shocks with oil #45.

CORRECT SHOCK ASSEMBLY

*Carefully screw the
shock shaft into the
bottom of the plastic
ball until the distance
between the ball end
and the shock body
is 18mm for the front.

*N.B. Do not over tighten
as the plastic will strip.

Step 5

Step 1

Step 2

Step 3

Step 4

*Fit the o-ring into groove before
assembly.

1.Pull down piston and pour oil
into shock cylinder.
2.Remove air bubbles by
slowly moving piston up and
down.
3.Pull down piston and place
pressure top wipe shock oil
overflow with tissue paper.

*Fill the shocks
with oil #40.

CORRECT SHOCK ASSEMBLY

*Carefully screw the
shock shaft into the
bottom of the plastic
ball until the distance
between the ball end
and the shock body
is 32mm for the front.

*N.B. Do not over tighten
as the plastic will strip.

Step 5

37966

37967

40863

40881

37100

40845

2mm

37100

40862

37100

37080

40891

37100

3x20mm

40854

30403

40883

37967

37966

40863

40846

40854

30403

40891

37100

40862

37100

37080

1.Pull down piston and pour oil
into shock cylinder.
2.Remove air bubbles by
slowly moving piston up and
down.
3.Pull down piston and place
pressure top wipe shock oil
overflow with tissue paper.

94007
3x20mm
Hex Screw

.....x2

37967
P3 O-Ring

.....x4

.....x2

30403
6mm Ball

37967
C-Ring

.....x2

37967
Washer (Black)

.....x2

94007
3x20mm
Hex Screw

.....x2

37967
P3 O-Ring

.....x4

.....x2

30403
6mm Ball

37967
C-Ring

.....x2

37967
Washer (Black)

.....x2

*Assemble 2 sets for front.

*Assemble 2 sets for rear.

2mm

37100

2mm

37100

3x20mm
