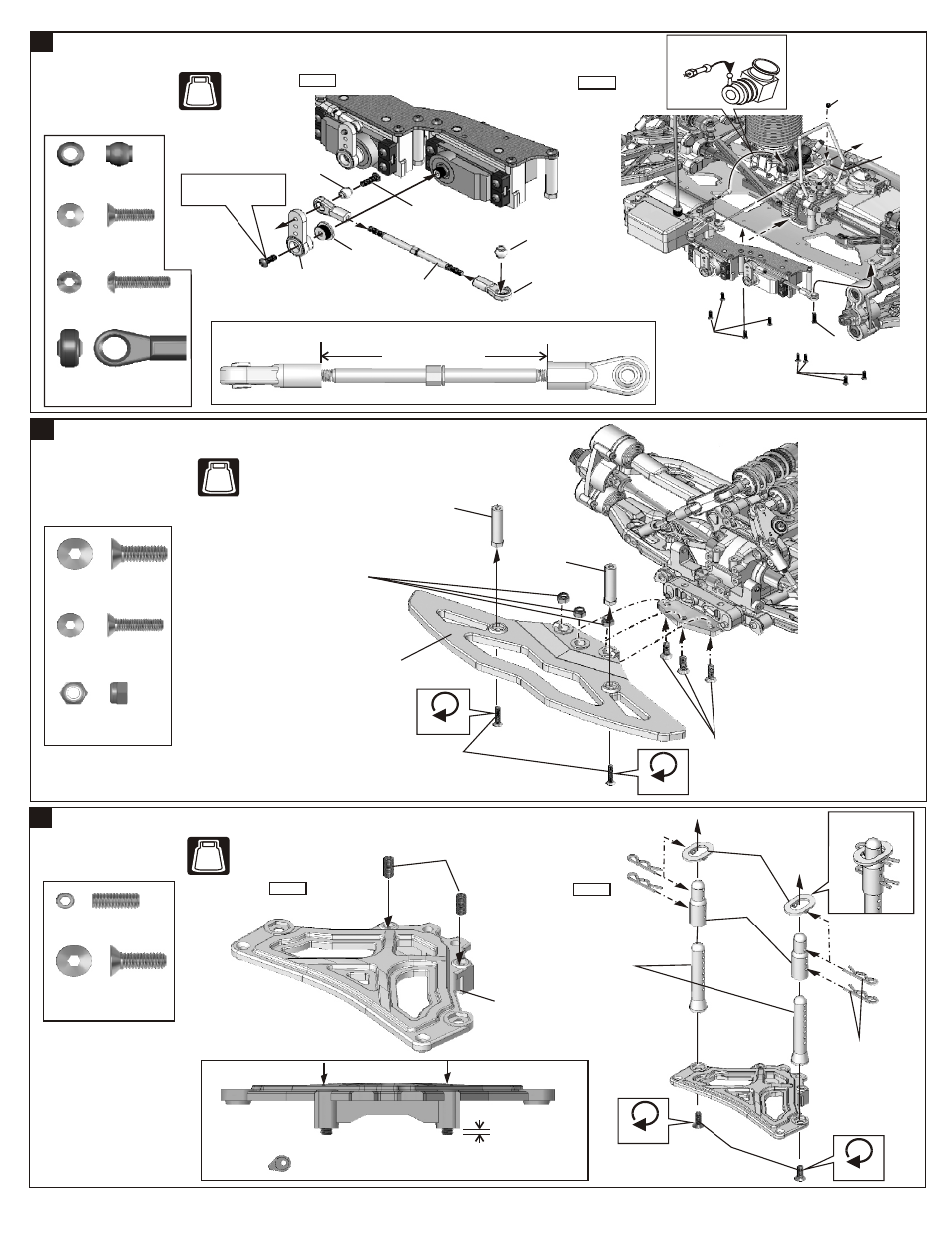

ASSEMBLY OF THE STEERING ROD AND RADIO TRAY ONTO THE CHASSIS

Step 1

Step 2

.....x1

.....x2

.....x1

94004
3X12mm
Hex Screw

30401
Plastic Ball End

30403
6mm Ball End

10765
Servo Horn
Adapter

10765
Servo Horn

3X12mm
Hex Screw

30403
6mm
Ball

*Use the screw provided
with your servo.

.....x8

94019
3x10mm
Flat Head
Hex Screw

3x10mm
Flat Head
Hex Screw

3X12mm
Hex Screw

30401
Plastic Ball End

NO.9

BAG

Approx. 49 mm

1:1

¬ ù

40713
3x64mm
Turnbuckle

3x3mm
Set Screw

10300
Alum
Stopper

*Snap on.

ASSEMBLY OF THE FRONT BUMPER

40721
Front Bumper
Post

40721
Front Bumper

94042
4mm
Nylon Nut

94026
4x12mm
Flat Head
Hex Screw

.....x3

.....x2

94020
3x12mm
Flat Head
Hex Screw

4x12mm
Flat Head
Hex Screw

3x12mm
Flat Head
Hex Screw

4mm
Nylon Nut

NO.8

BAG

.....x3

Tighten

Step 1

Step 2

ASSEMBLY OF THE FRONT BUMPER

40721
Front Bumper
Top Plate

40117
Body Post

.....x2

36870
4x10mm
Set Screw

94026
4x12mm
Flat Head
Hex Screw

.....x2

4x10mm
Set Screw

4x12mm
Flat Head
Hex Screw

40117
Body Post

31159
Body Clip

40720
Body Post

NO.8

BAG

Approx. 4 mm

4mm

* The 4x10mm set screw
is used to adjust down stop.

Completely Finished

Tighten
