Page 5
Brewer Model Café 1DB,
2DB, 3DB & AP (All 208-
240VAC Units)
Table 2. MODEL & ELECTRICAL (All 208-240VAC Units) “Export Only”
MODEL
HEATING
ELEMENT CIRCUIT
VOLTS
WATTS
AMPS
CAFE0AP30
WC- 906
A
240VAC
2000W
8.3A
CAFE1DB30
WC- 906
A + B
240VAC
2100W
8.8A
CAFE2DB30
WC- 906
A + B + C
240VAC
2200W
9.2A
CAFE3DB30
WC- 906
A + B + C + D
240VAC
2300W
9.6A
MODEL AND ELECTRICAL TABLE
5

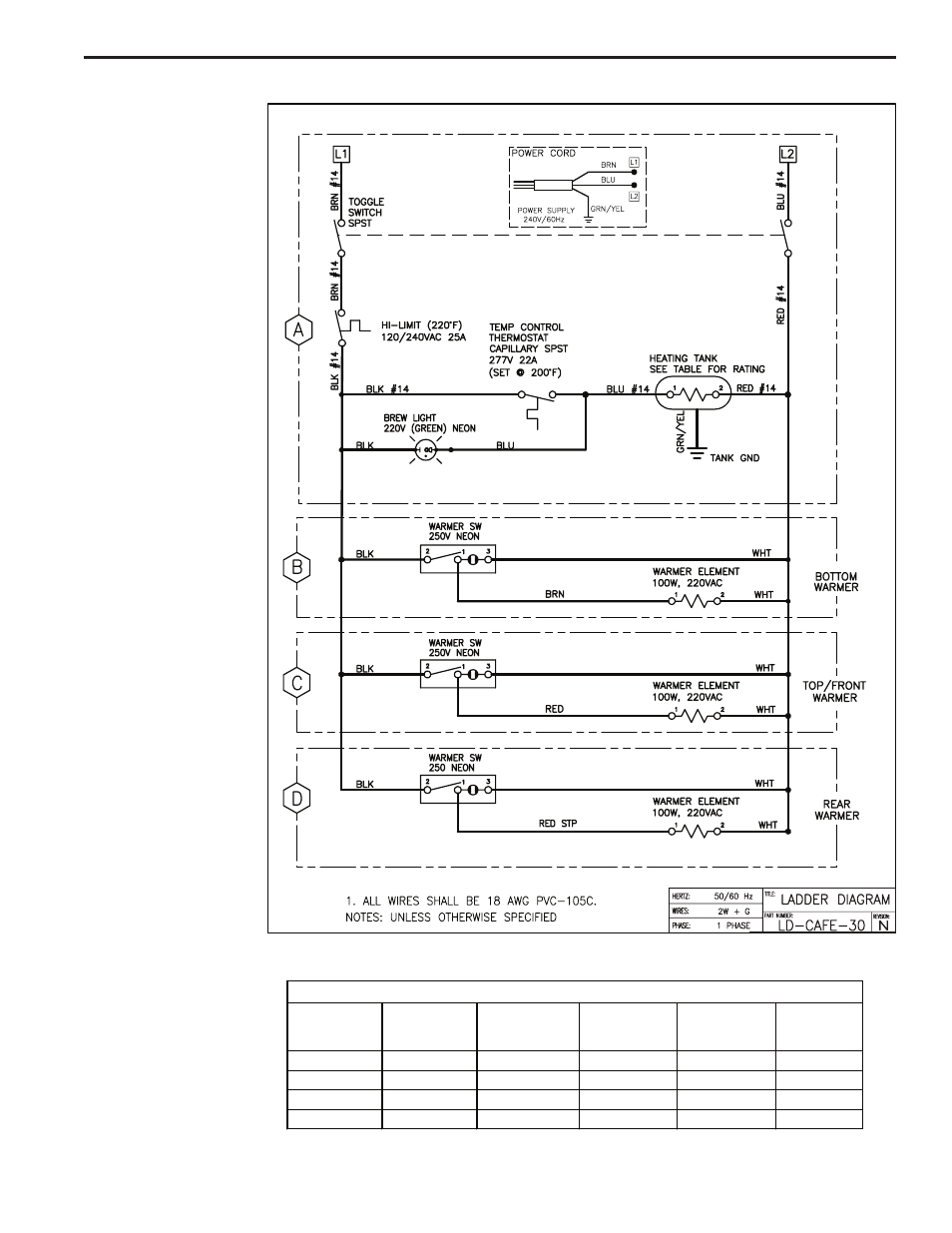

ELECTRICAL LADDER DIAGRAM – 220V
