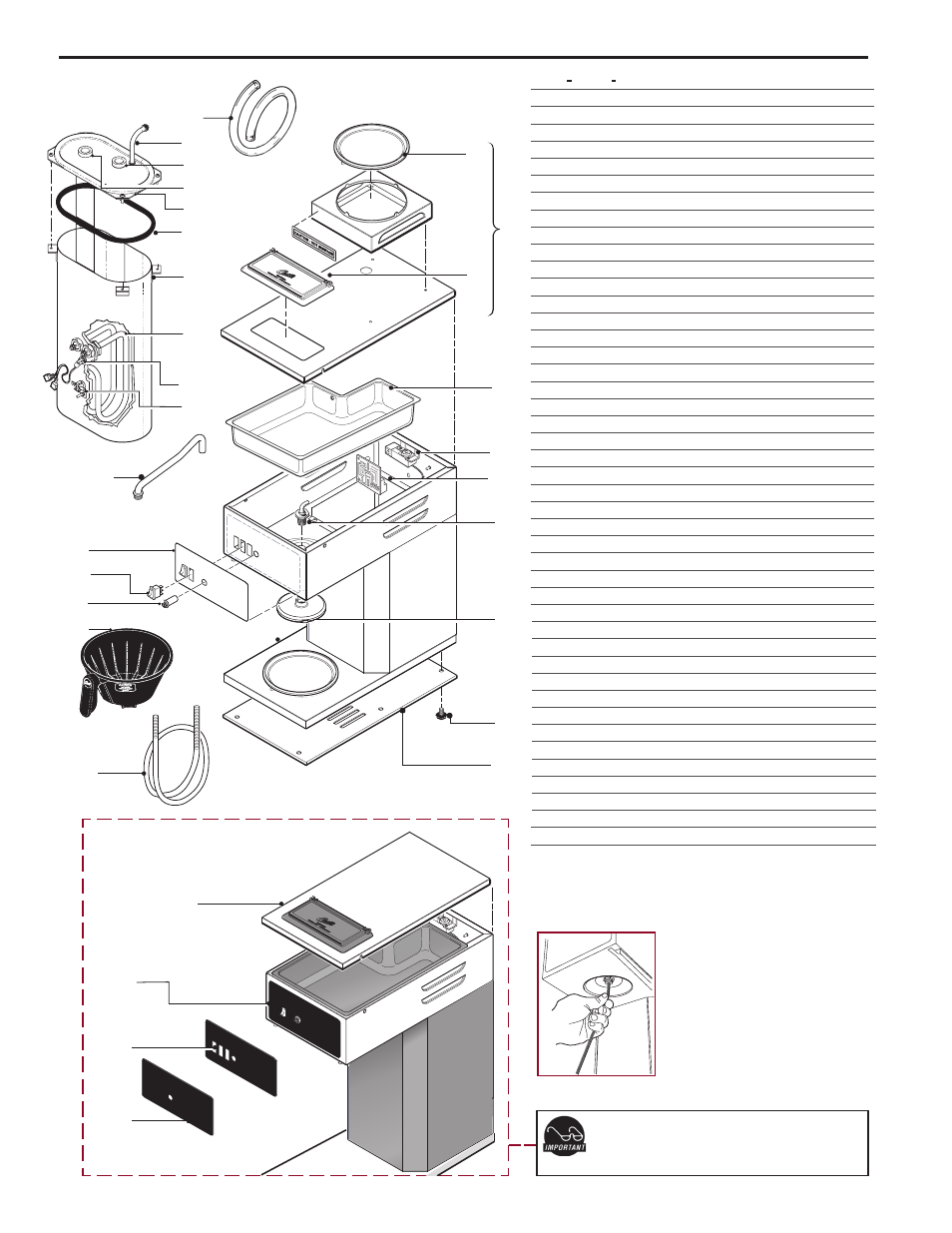

PARTS
DIAGRAMS
1
2
3
4
5
5A
6
7
8
9
26
21
22
23
Item Nº Part Nº Description
1 WC-68101 TOP WARMER ASSY, 120V (CAFÉ 2DB)
1A WC-68103 TOP WARMER ASSY, 220V (CAFÉ 2DB)
2 WC-37135 WARMER ASSY 100W 120V w/PLATE
2B WC- 975 WARMER ASSY, COMPLETE 100W 220V
3** WC-54118 TRAY ASSY POUROVER
4** WC-54121 PAN, POUR CAFE’
5 WC- 517 THERMOSTAT (EXPORT MODELS)
5A** WC- 735 THERMOSTAT, TEMP CONTROL 120V
6 WC-2962* FITTING, SPRAYHEAD
7 WC-4213 NUT, 5/8-18 JAM BRASS
8** WC-29025 SPRAYHEAD, PURPLE ASF
9 WC-3502 LEG, SCREW BUMPER
10 WC-38099* LABEL, SW PANEL CAFÉ 2DB (OLDER UNITS)
10A WC-38113* LABEL, SW PANEL CAFÉ 1DB (OLDER UNITS)
10B WC-38114* LABEL, SW PANEL CAFÉ 3DB (OLDER UNITS)
10C WC-38127* LABEL, SW PANEL CAFÉ AP (OLDER UNITS)
10D WC-39373 LABEL, SW PANEL CAFÉ 2DB (ON/OFF SW)
10E WC-39372 LABEL, SW PANEL CAFÉ 1DB (ON/OFF SW)
10F WC-39374 LABEL, SW PANEL CAFÉ 3DB (ON/OFF SW)
10G WC-39371 LABEL, SW PANEL CAFÉ AP (ON/OFF SW)
11** WC- 165 SWITCH, WARMER RED 115V
11A WC- 166 SWITCH, WARMER (RED) 250V
11B WC- 137* SWITCH, WARMER RED 220V (OLDER UNITS)
12 WC- 207 LIGHT, BREW 115V GREEN
12A WC- 208 LIGHT, BREW 250V GREEN
13 WC-3621-101 BREWCONE, 7⅛” BLK PLASTIC
14** WC-5310 TUBE, 5/16 ID X 1/8 W SILICONE
15 WC-29042 HOSE, VENTILATION HEATING TANK
16 WC-2627 GROMMET, COVER HEATING TANK
17 WC-2628 BUSHING, CONICAL.47 ID x .95 OD x .99L 8mm
18 WC-54125-101 COVER, TOP HEATING TANK
18A WC-54125* COVER, TOP HEATING TANK (OLDER UNITS)
19 WC-43062 GASKET, TANK LID
20 WC-54117 TANK, COMPLETE 1450W 120V
20A WC-54145 TANK, COMPLETE 3500W 240V
21 WC- 917-04 ELEMNT, HEAT1.45KW 120V W/NUTS & WSHRS
21A WC- 906-04 ELEMENT, HEATING 2KW 220V W/NUT & WSHR
22** WC-1438-101 SENSOR, TEMPERATURE TANK
23** WC- 523* THERMOSTAT, MANUAL RESET
23A WC- 521 THERMOSTAT, THERMOSTAT, AUTO RESET
24** WC-29054 TUBE, CAFÉ SPRAYHEAD/SYPHON
25 WC-3645 SPRING, DELIMING CAFE SERIES
26 WC-73106 COVER, BOTTOM
27 WC-68102 COVER ASSY, TOP (CAFÉ 1DB, 3DB, AP
27
2
14
15
16
17
18
19
20
10
11
12
13
24
25
NOTE: Items, called out in this illustration, are
specific to Cafe 1DB, Cafe 3DB & Café AP.
All other parts are common.
10A
10D
10B
10E
10C
10F
DELIMING SPRING This spring
is for cleaning lime deposits from
within the siphon tube. Remove the
sprayhead. Insert spring into the
siphon tube.
Twist the spring clockwise as you
push inward. Once past the bend in
the tubing, you can slide it back an
forth to remove hard lime deposits.
* Component Used on Older Units
** Suggested Parts to Stock
