Quick Installation

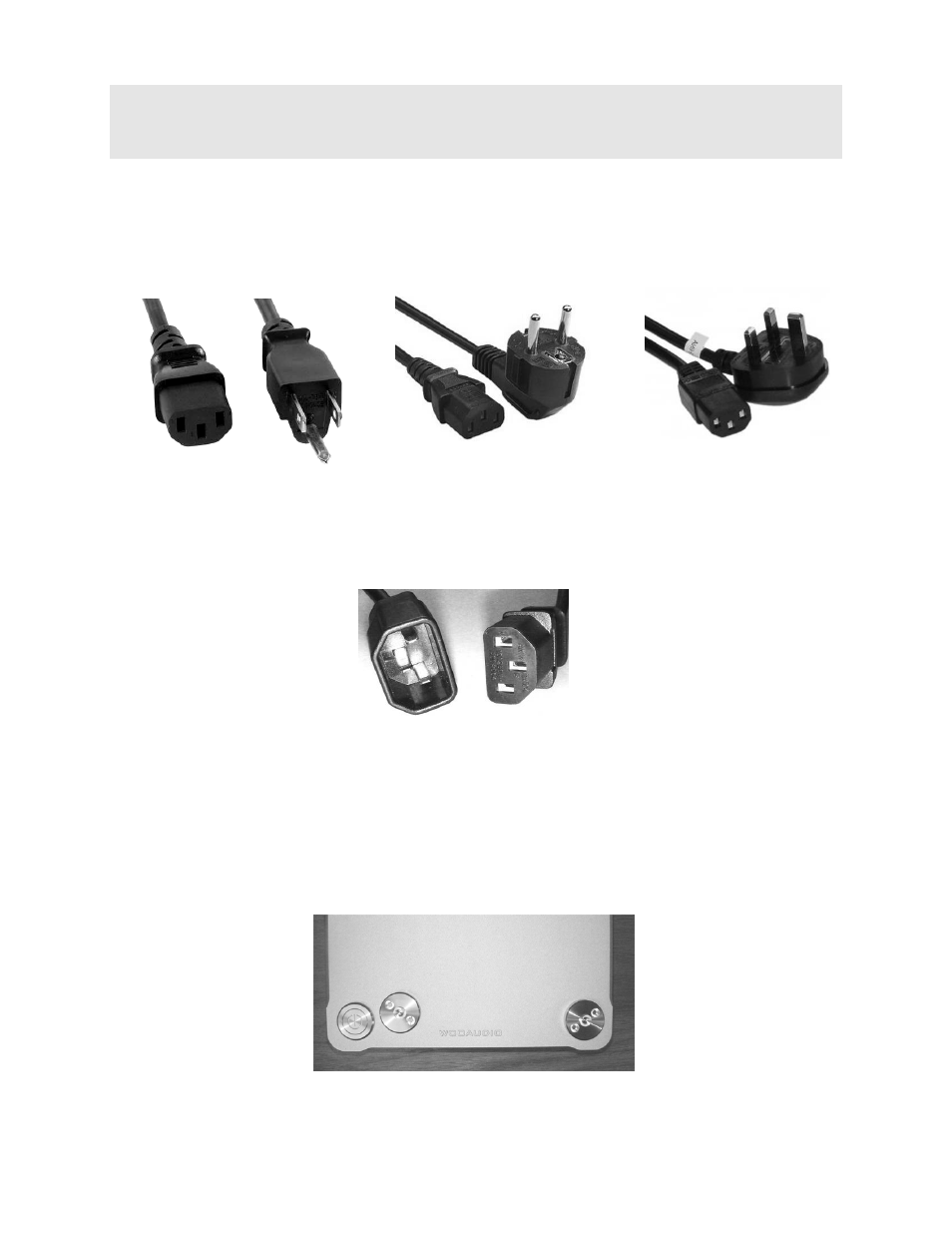

Installing the power cord:

Plug the power cord into the AC inlet; see

① in the above diagram. The AC inlet socket is a

standard IEC type. You will need to obtain the correct type for your region.

Take the AC umbilical cord and plug it into AC Female Outlet

② of the WTP-1 and AC

Male Inlet of WDS-1

③. Refer to the above diagram.

* If you are intending to use the AC umbilical cord to stack the two units, attach and
power up the two units first side by side before stacking the units together. This is to
make sure that both the WTP-1 and WDS-1 are powered up.

Stacking:

The WTP-1 and WDS-1 are capable of stacking together when the optional foot
stands are purchased.

U.S.

European

U.K.
