22 − English
ASSEMBLY
MITER
TABLE
COMBINATION
SQUARE
BLADE

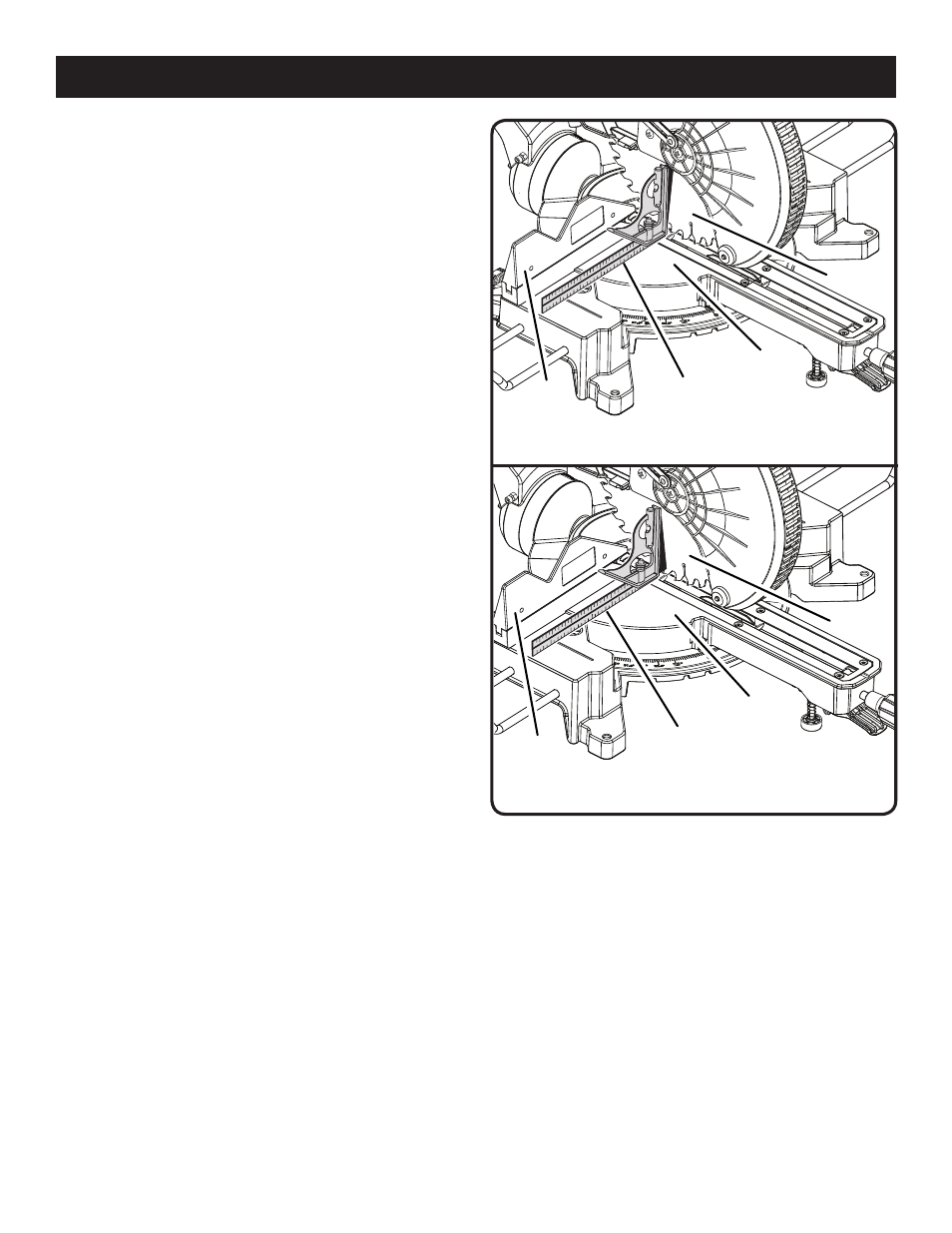

VIEW OF BLADE NOT SQUARE WITH MITER TABLE,
ADJUSTMENTS ARE REQUIRED Fig. 28
Fig. 29
VIEW OF BLADE NOT SQUARE WITH MITER TABLE,
ADJUSTMENTS ARE REQUIRED
MITER
TABLE
COMBINATION
SQUARE
BLADE
SLIDING
MITER FENCE
SLIDING
MITER FENCE
 If the top or bottom of the saw blade angles away from
the square as shown in figures 28 and 29, adjustments
are needed.
 Loosen bevel lock knob.
 Adjust positive stop adjustment screw to bring saw
blade into alignment with the square. See Positive Stop
Adjustment in the Adjustment section.
 Tighten bevel lock knob. Recheck blade-to-table
alignment.
NOTE: The above procedure can be used to check blade
squareness of the saw blade to the miter table at both 0°
and 45° angles.
Your saw has several scale indicators. After squaring
adjustments have been made, it may be necessary to loosen
the indicator screws and reset them to zero. See Figures
25 - 26.
