Page 10
ADJUSTMENTS

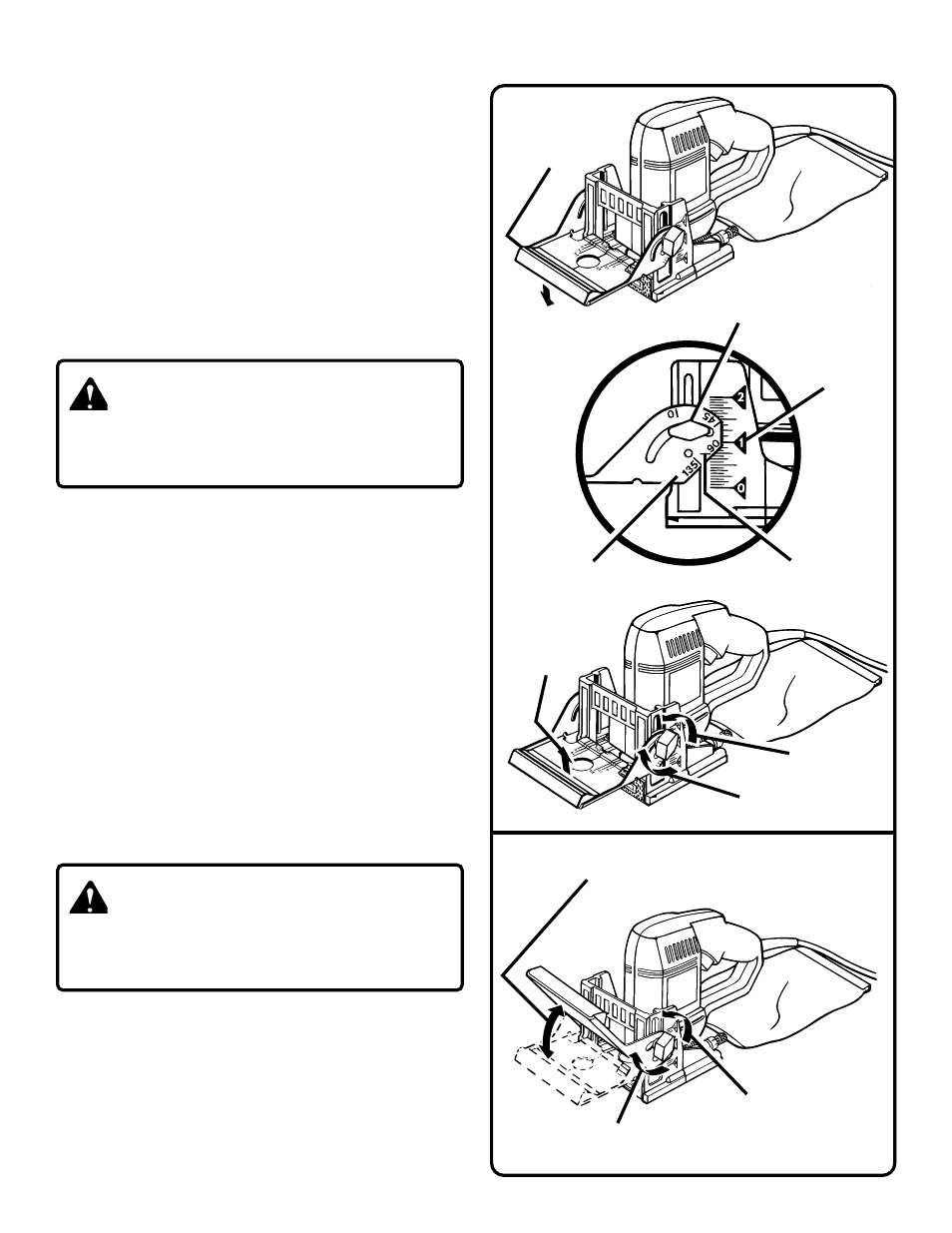

FENCE HEIGHT ADJUSTMENT
See Figure 5.
The adjustable fence on your plate joiner can be moved up
and down to adjust the position of the blade in relation to the
top of the workpiece. A scale on both sides of the fence
indicates the height of the fence from the center of the blade.
The fence can be positioned up to two inches from the center
of the blade. However, the scale and indicator point can only
be set up to 1-1/2 in. from the center of the blade. Scale
marks are in increments of 1/16 in.
TO ADJUST HEIGHT SETTING
See Figure 5.
1. Unplug your plate joiner.
2. Loosen the two height adjustment knobs. NOTE: Loosen
each height adjustment knob approximately one turn.
3. Slide the fence up or down until the indicator point is
aligned with the desired dimension on the scale.
4. Tighten height adjustment knobs securely.
FENCE ANGLE ADJUSTMENT
See Figure 6.
The adjustable fence on your plate joiner can be set at angles
ranging from 0
° to 135°, with quick, accurate positive stops
set in 45
° increments. A scale is located on both sides of the
front handle for identifying these positive stop angles. Each
click you hear when rotating the adjustable fence from one
angle setting to another equals a 45
° positive stop angle
change.
TO ADJUST ANGLE SETTING
See Figure 6.
1. Unplug your plate joiner.
2. Loosen the two height adjustment knobs. NOTE: Loosen
each height adjustment knob approximately one turn.
3. Rotate adjustable fence up or down to the desired angle.
4. Tighten height adjustment knobs securely. See Figure
6.
Fig. 6
WARNING:
Failure to unplug your plate joiner could result in
accidental starting causing possible serious personal
injury.
WARNING:
Failure to unplug your plate joiner could result in
accidental starting causing possible serious personal
injury.
FRONT HANDLE /
ADJUSTMENT
FENCE
TO LOWER
ADJUSTABLE
FENCE
INDICATOR
POINT
ANGLE
SETTING SCALE
HEIGHT
SETTING SCALE
HEIGHT
ADJUSTMENT KNOB(S)
ROTATE ADJUSTABLE FENCE
TO DESIRED ANGLE SETTING
Fig. 5
TO RAISE
ADJUSTABLE
FENCE
TO
LOOSEN
TO
TIGHTEN
TO
LOOSEN
TO
TIGHTEN
