Cabela’s ® Gun Dog ® — Owner’s Manual 3
to Receiver Cradle
Quick Start Guide
Step 1
Charging the Batteries
1. Plug the AC Adapter into a 110VAC
electric outlet.
2. Connect the AC Adapter to the “Y” cable.
3. Connect the “Y” cable to the Receiver
Cradle.
4. Put the Receiver on the Receiver Cradle as
shown in figure 4 (both logos are on the same
side). The light on the Receiver glows red while
charging, and glows green when fully charged. If
the light does not come on, check Receiver orientation
on the Cradle.
5. On the Transmitter, move the Charge Port Cover away
from the Charge Port. Connect the remaining end of
the “Y” cable to the Transmitter’s Charge Port. Charge
the transmitter for at least 2 hours.

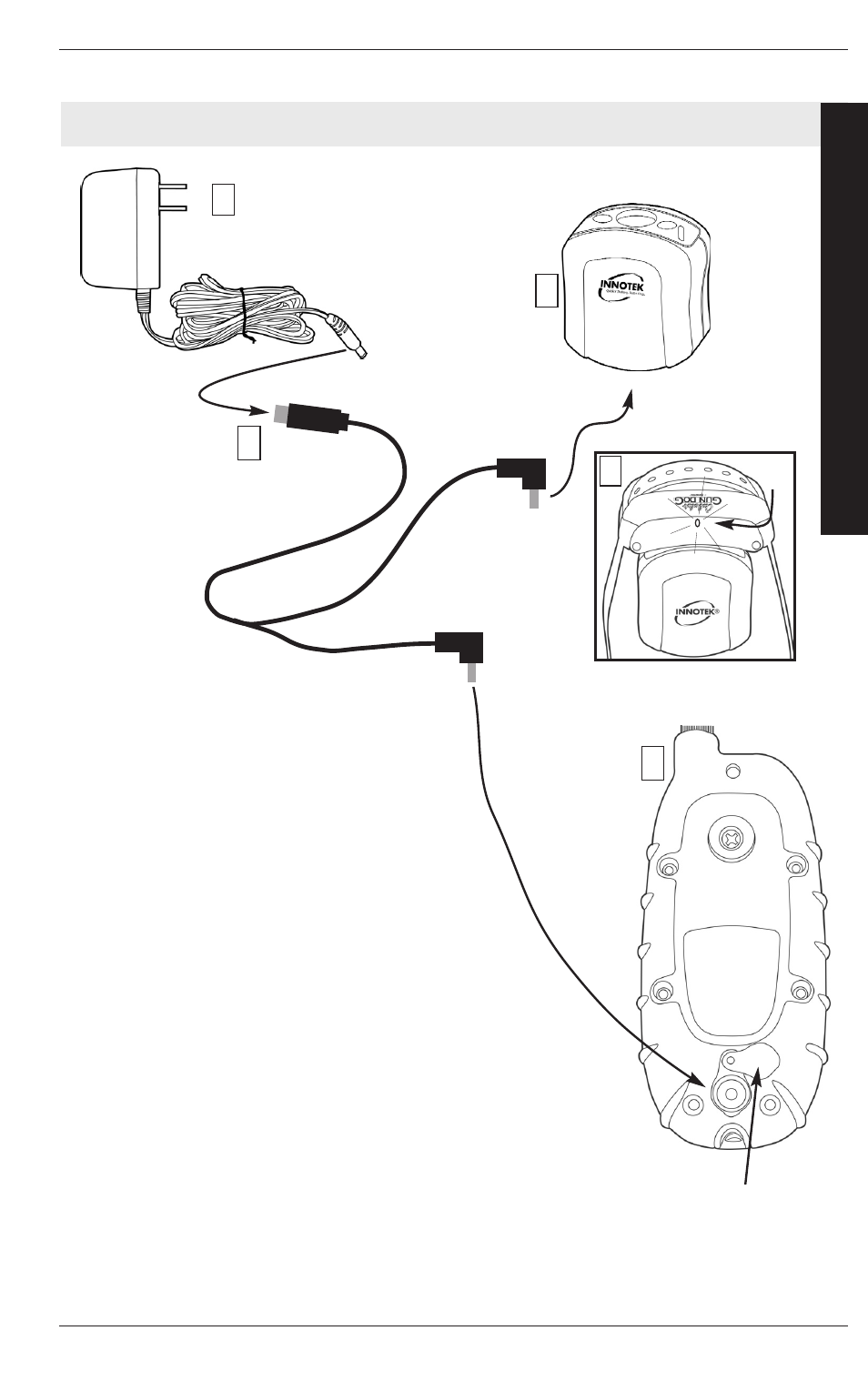

“Y” Cable
AC Adapter
to
Transmitter Charge P
ort
Back view of Transmitter
1 1
2 2
3 3
4 4
5 5
From AC Adapter to “Y” Cable
Charge Port Cover
Quick Start Guide
T To o m ma aiin ntta aiin n m ma axxiim mu um m rra an ng ge e,, k ke ee ep p tth he e T Trra an ns sm miitttte err a an ntte en nn na a a aw wa ayy ffrro om m a allll m ma ag gn ne etts s
(there is a magnet in the Charging Cradle), otherwise effective range may be
permanently diminished.
Receiver
Light
