PDR Mounts upm50 - Manual (Page 3)

F
G
4.3 mm x 8.9mm steel washer 4pcs
2.7mm x 6mm steel washer 4 pcs
I
H 9/32” x 47/64” Nylon washer 4 pcs
J
1/4-20 x 5/8 carriage bolts 4 pcs
Leveling barrels 4 pcs
K
L
M 3 x 25mm Pan Head Philips machine Screw 4 pcs
M2.6 x 25mm Cheese Head slotted machine Screw 4 pcs
O
M M4 x 25mm Pan Head Philips machine Screw 4 pcs
P
M6 x 25mm Pan Head Philips machine Screw 4 pcs
Black plastic knob 4 pcs
Q
R Adjustable arm (right) 2 pcs
Adjustable arm (left) 2 pcs

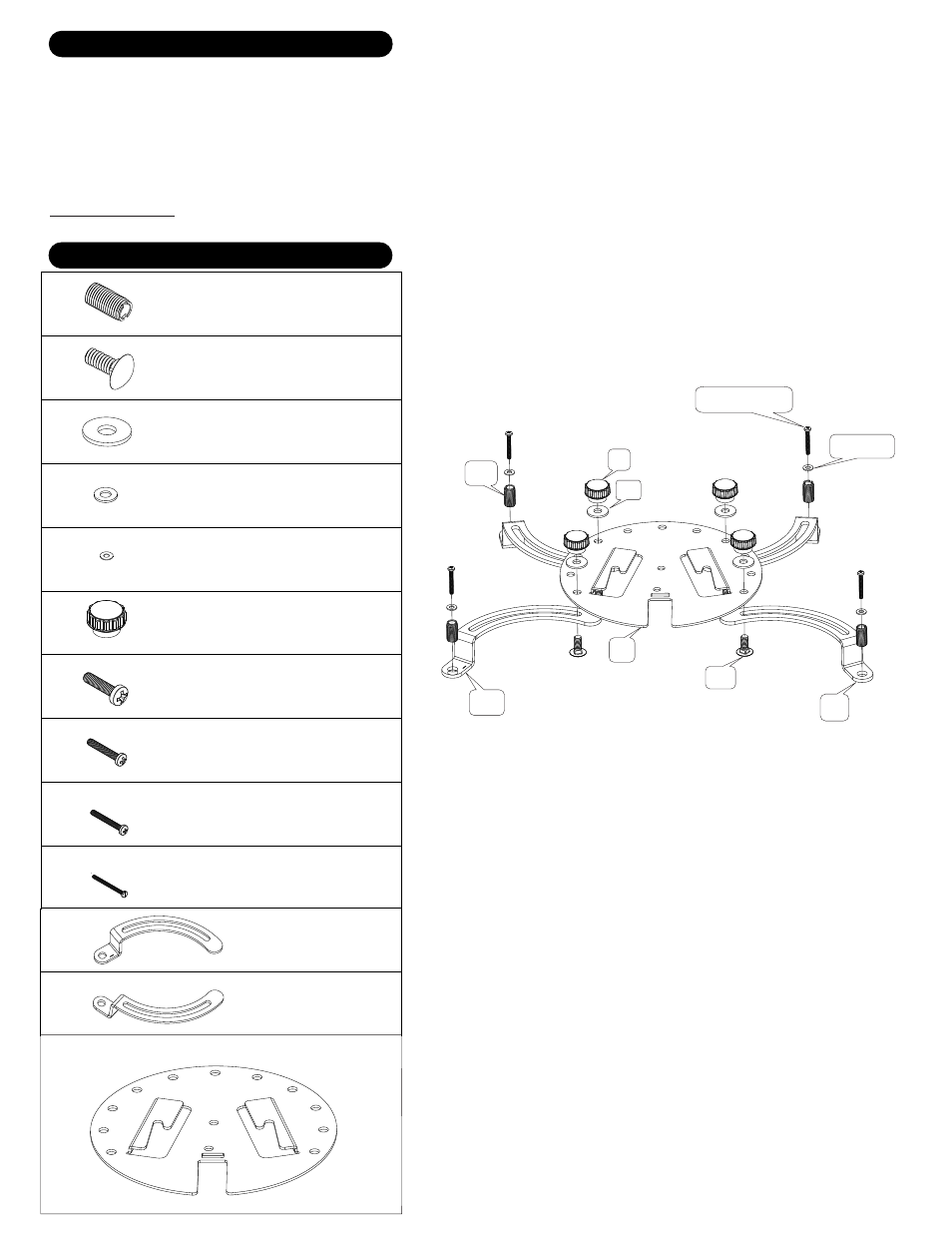

ADAPTER PLATE HARDWARE
ADAPTER PLATE ASSEMBLY
F
K
H
Q
G
R
I OR J
L,M,O, OR P
S
S
Adapter plate 1 pc
1: Start by screwing the leveling barrels ( F ) into the Adjustable arm (Q and R). A screwdriver slot is provided in the barrel ( F ) .The barrels only
need to be threaded approx. 1/8 “ through the bottom of the arm (Q and R) If the mounting plane of the projector is not flat ,the barrels can be
adjusted to make up the difference in height.
2: Using the adapter plate ( S ) attach the adjustable arms ( Q,R ) with the hardware supplied (G,H,K) No need to tighten at this time.
3: Place the Universal adapter plate onto the projector. (See fig 4) Using the proper hardware supplied ( screws L,M,O or P) (washers I or J )
lightly fasten to the projector.
4: Position the universal adapter plate approx over the center of the projector, tighten the screws to the projector and then tighten the Plastic knobs
( K ). Be carful to not over tighten the projector screws. Damage to the projector may occur if the screws to the projector are over tightened.
See fig 2b for details
Fig 2b
3
Note: must be used with washer “I”
