3. Back Panel

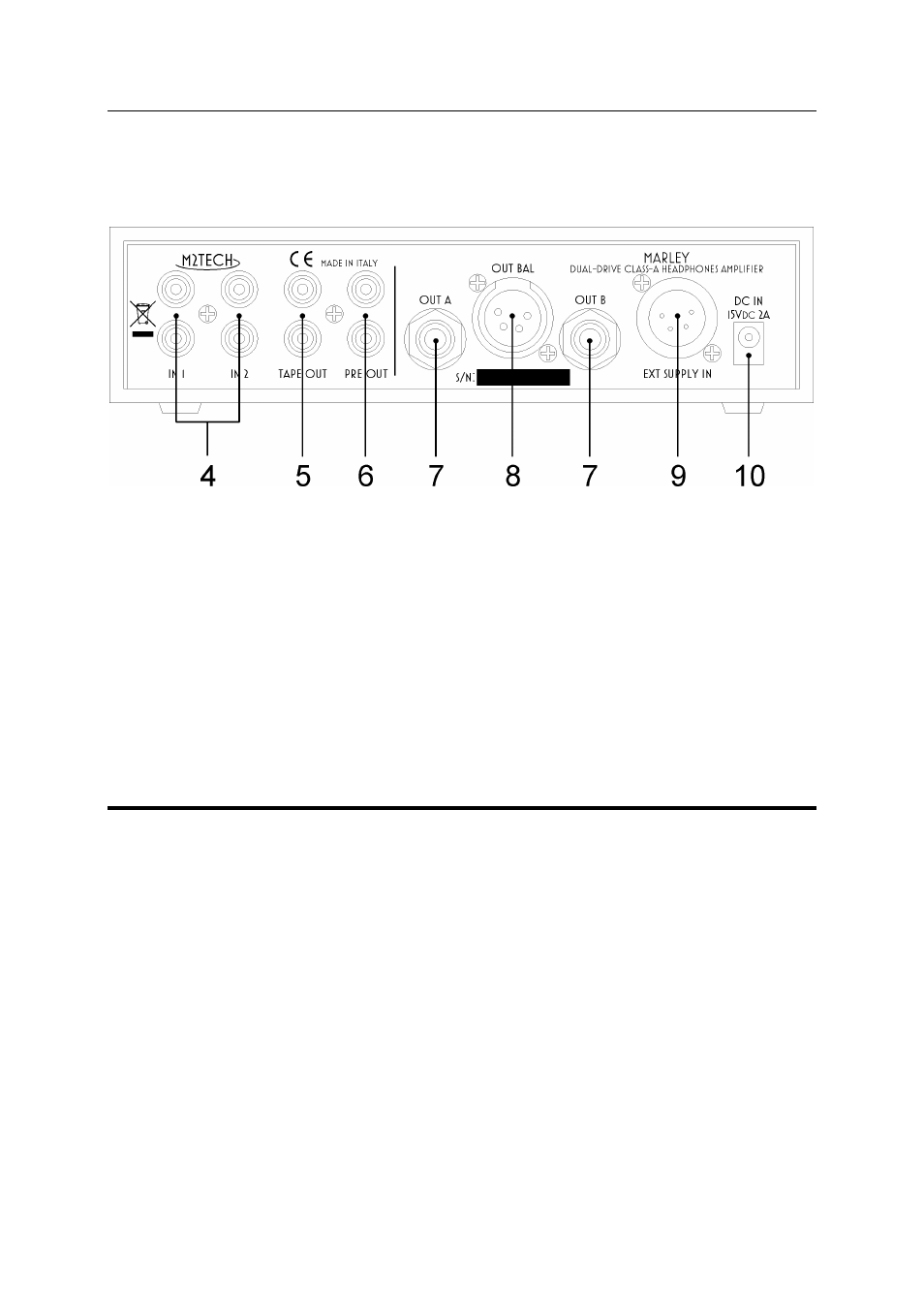

Figure 2

4) Inputs. Connect stereo music sources to these two inputs. Gold-flashed RCA
sockets. Black indicates left channel, red indicates right channel.

5) Tape output. Connect the input of a tape recorder or other recording device to this
output to record the selected source. Gold-flashed RCA sockets. Black indicates left
channel, red indicates right channel.

6) Preamplifier output. If used, connect a power amplifier to this output, to use the
MARLEY as a preamplifier. Gold-flashed RCA sockets. Black indicates left channel, red
indicates right channel.
