marley
DUAL-DRIVE CLASS-A HEADPHONE AMPLIFIER / PREAMP

REVISION 1.0 – NOVEMBER 2013

M2Tech

www.m2tech.biz

2. Front Panel

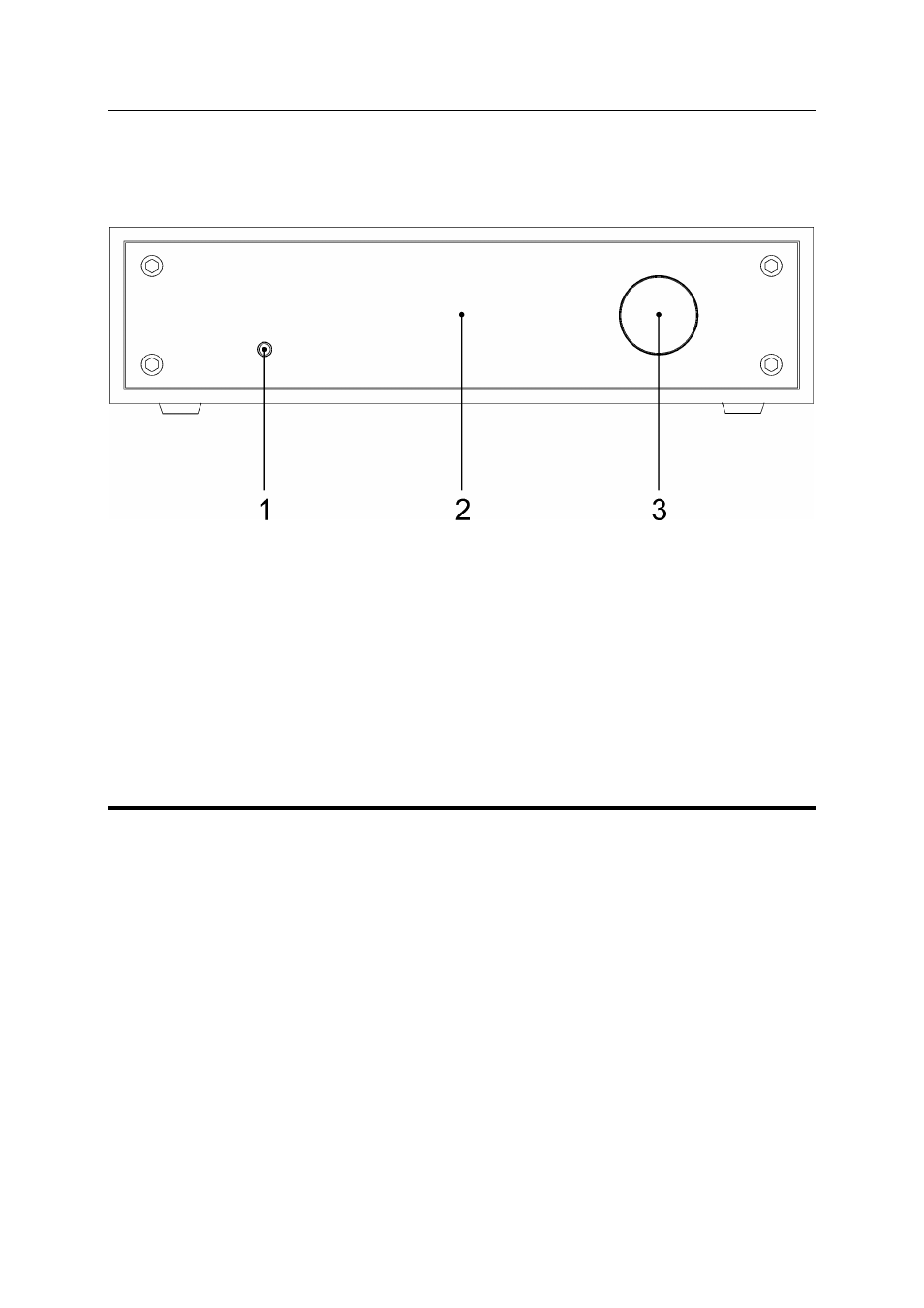

Figure 1

1) On/off/mute/menu escape button. Push this button to turn the MARLEY on when
it’s off. When the MARLEY is on, a short push will toggle muting, unless the menu has
been previously accessed: in the latter, a short push will cause immediate menu
escape and configuration changes discard. A prolonged button push while the MARLEY
is on will cause it to switch-off.

2) Display. Multi-function LCD display. During normal operation, it indicates the
listening level for the active outputs, the selected source and the mute status. When
