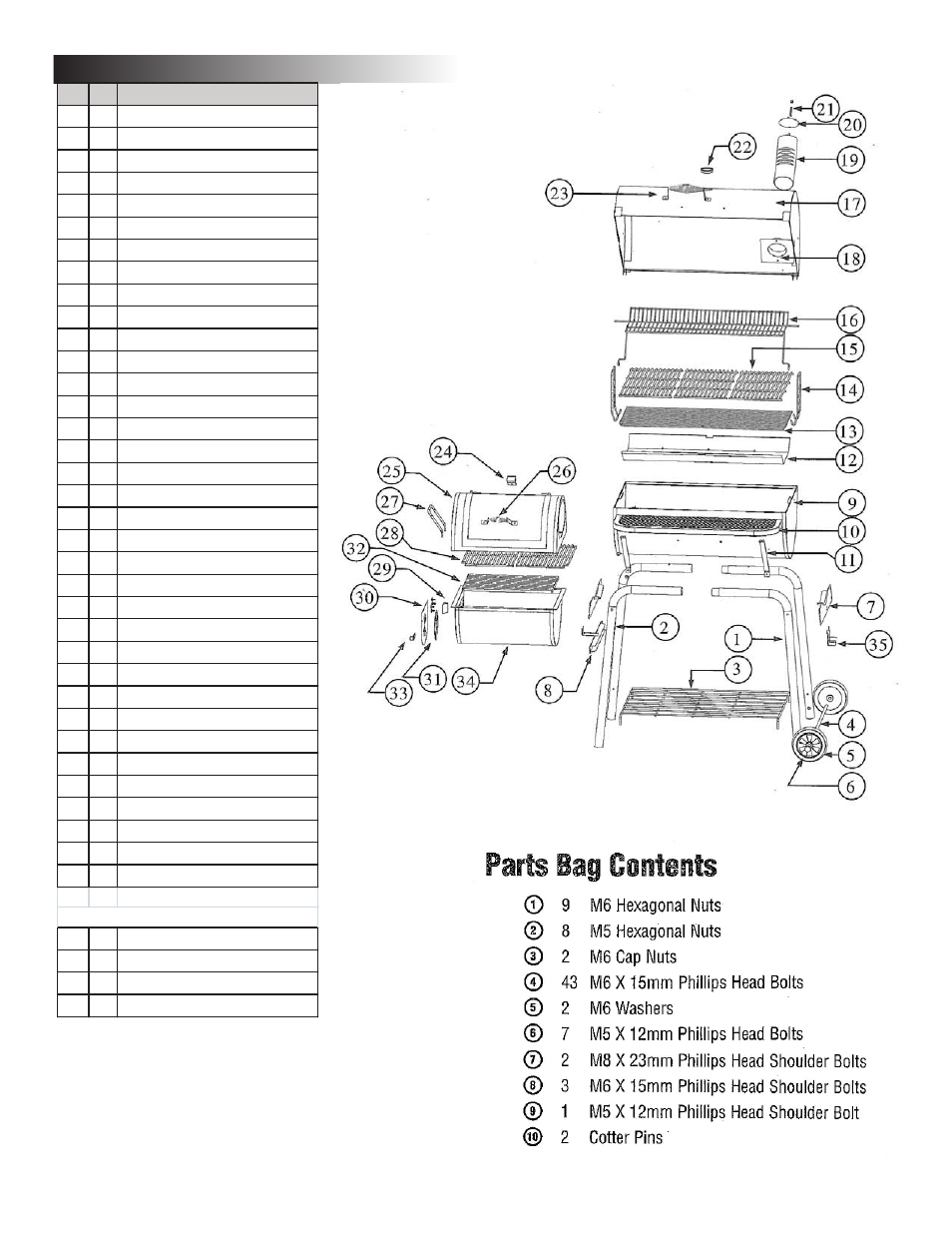

PARTS LIST

7

Key

Qty Description

1

1

RIGHT LEG

2

1

LEFT LEG

3

1

SHELF

4

1

AXLE

5

2

WHEEL

6

2

WHEEL CAP

7

2

LEG BRACE

8

1

FIREBOX SUPPORT

9

1

GRILL BASE

10

1

FRONT SHELF

11

2

FRONT TABLE SUPPORT

12

1

CHARCOAL TRAY

13

1

CHARCOAL GRATE

14

2

CHARCOAL GRATE ADJUSTER

15

3

COOKING GRATE

16

1

WARMING RACK

17

1

GRILL LID

18

1

SMOKESTACK BRACKET

19

1

SMOKESTACK

20

1

SMOKESTACK DAMPER

21

1

SPRING

22

1

TEMPERATURE GAUGE

23

1

GRILL LID HANDLE

24

1

FIREBOX LID STOP

25

1

FIREBOX LID

26

1

FIREBOX LID HANDLE

27

1

PUSH HANDLE

28

2

FIREBOX COOKING GRATE

29

1

FIREBOX DOOR HINGE

30

1

FIREBOX DOOR

31

1

FIREBOX AIR SHUTTER

32

1

FIREBOX CHARCOAL GRATE

33

1

FIREBOX DOOR LATCH

34

1

FIREBOX BASE

35

1

GREASE CUP HOLDER

NOT Pictured

…

1

HARDWARE BAG

…

1

LOGO PLATE

…

1

INSTRUCTION MANUAL, ENGLISH

…

1

INSTRUCTION MANUAL, SPANISH
