Char-Broil 11201566 User Manual
Page 10
5
6
10

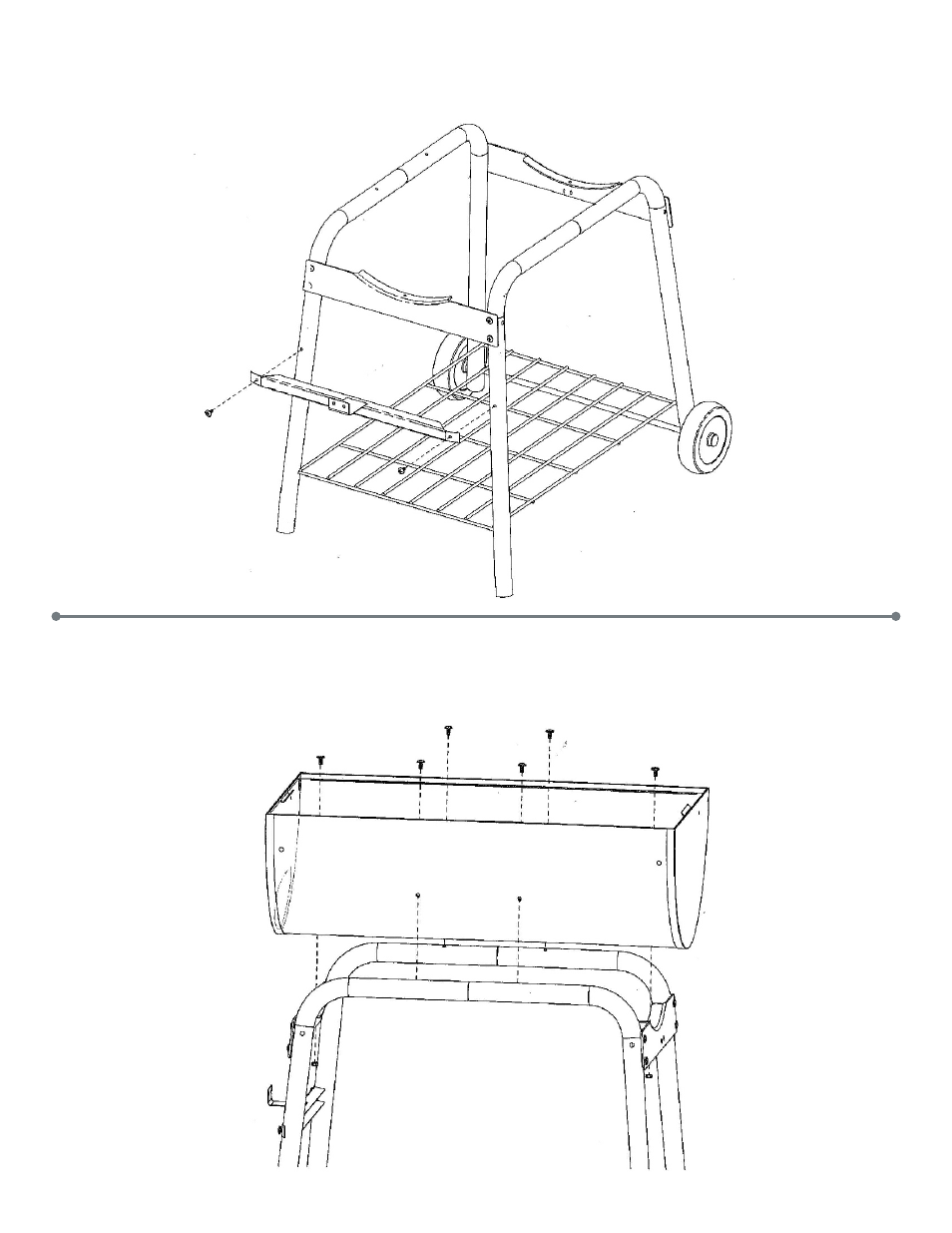

Install firebox support bracket (item #8) onto the holes on the left legs using two M6 x 15mm Phillips head bolts. Do not tighten bolts
until Step 6 is completed.
Install grill base (item #9), with firebox opening towards left side, on top of the legs using four M6 x 15mm Phillips head bolts.
Install two M6 x 15mm Phillips head bolts and M6 hex nuts through grill base (item #9) and flange on leg braces (item #7)..
FULLY TIGHTEN ALL SCREWS AND NUTS AT THIS TIME.
