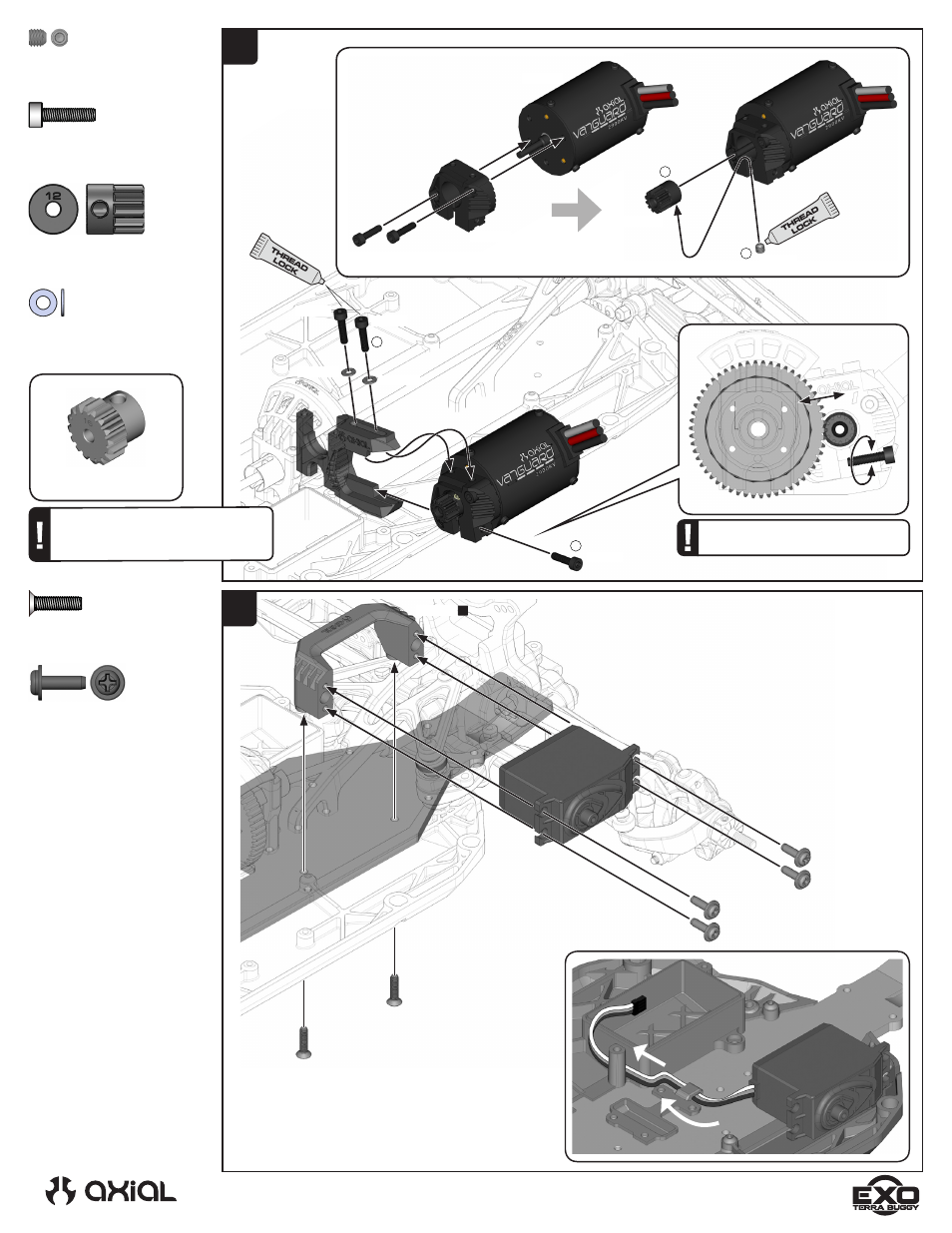

Axial Racing AX90024 User Manual
Page 27
27
23
22
1
2
AXA146
AXA1280
AXA086
AXA1280
AXA1280
AXA1280
AXA146
AX80105
2
AXA291
AXA086
AXA086
AXA086
AXA1070
AXA1070
AX30800
AX24010
AX30723
1
2
Note: Use screw to adjust for proper mesh.
Note:
16T pinion included. Do not exceed
7.4V LiPo or 7.2V NiMh with this pinion.
AXA146
M3x12mm
x2
AXA1280
M3x10mm Servo Flange Screw
x4
AXA291
M4x4mm
x1
AXA086
M3x12mm
x5
AX30723
12T 32P Pinion 3mm Motor Shaft
x1
AXA1070
Washer 3x6x0.5 mm
x2
16T 32P Pinion 3mm Motor Shaft X1
AX30727
See page 41 for safe gearing/battery choices.
