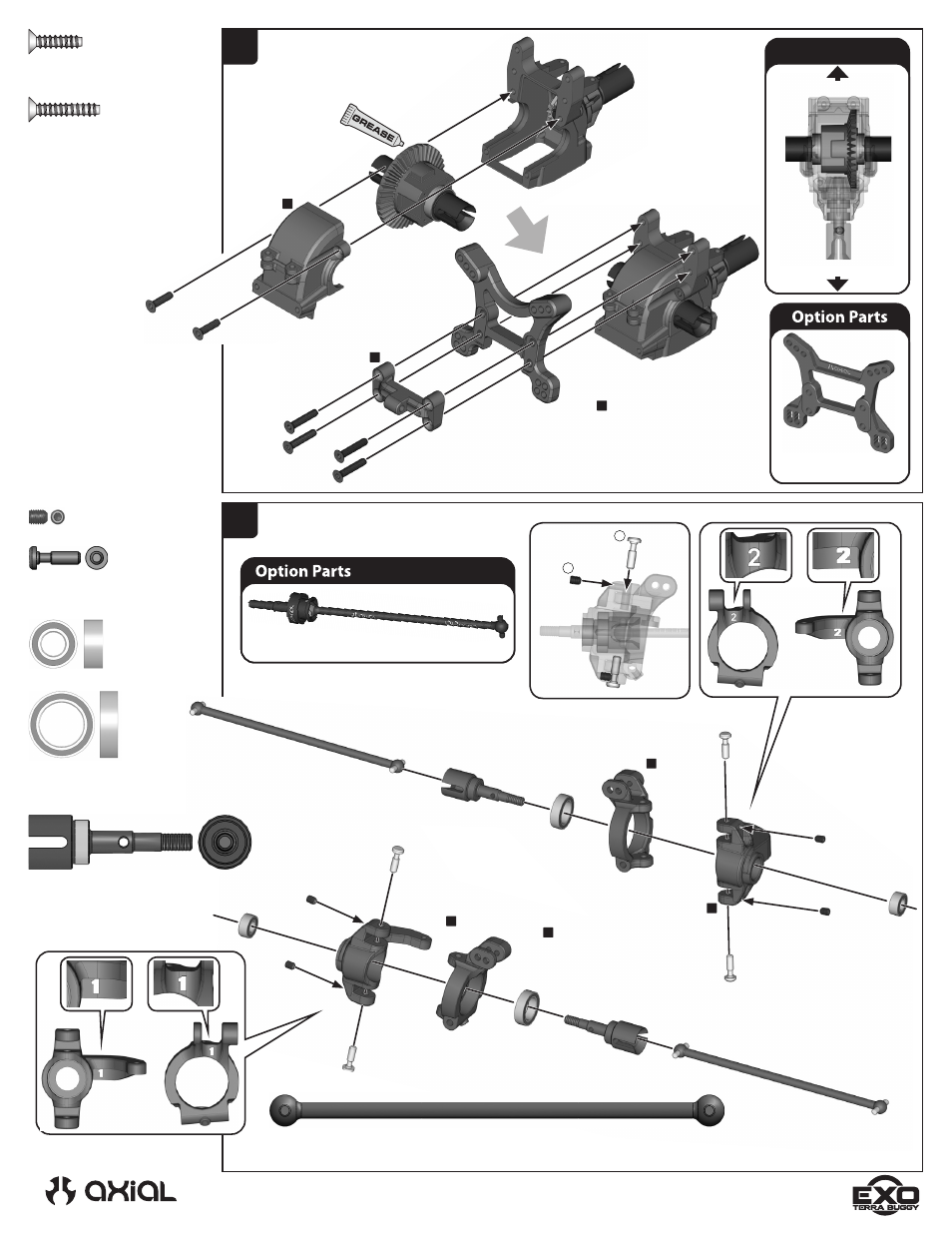

Axial Racing AX90024 - Manual (Page 17)

17
3
4
Right
Left
1
2
Front
AXA466
AXA466
AXA467
AXA467
AXA467
AXA467
AX30418
AX30418
AX30366
AX30366
AXA1230
AXA1230
AXA1218
AXA1218
AXA181
AXA181
AXA181
AXA181
AX80091 1
AX80097 2
AX80106 2
AX80106 1
AX80099 1
AX80099 2
AX80093 2
AX30382
AX30382
AX30382
AX30382
AXA466
M3x12mm
x2
AXA467
M3x16mm
x4
AXA1218
Bearing 5x10x4mm
x2
AXA1230
Bearing 10x15x4mm
x2
AX30382
EXO Steering King Pin
x4
AX30366
Axle 5x35mm
x2
AX30418
Dogbone Set 7x96mm (2pcs)
x2
AX30825
EXO Machined Aluminum Front
Shock Tower (Hard Anodized)
AX30415
EXO Front Universal J oint Axle Set (2pcs)
Note Direction From Top
Front
Rear
AXA181
M3x4mm
x4
