Allen&Heath IDR-4 Troubleshooting Guide User Manual
Page 16
16

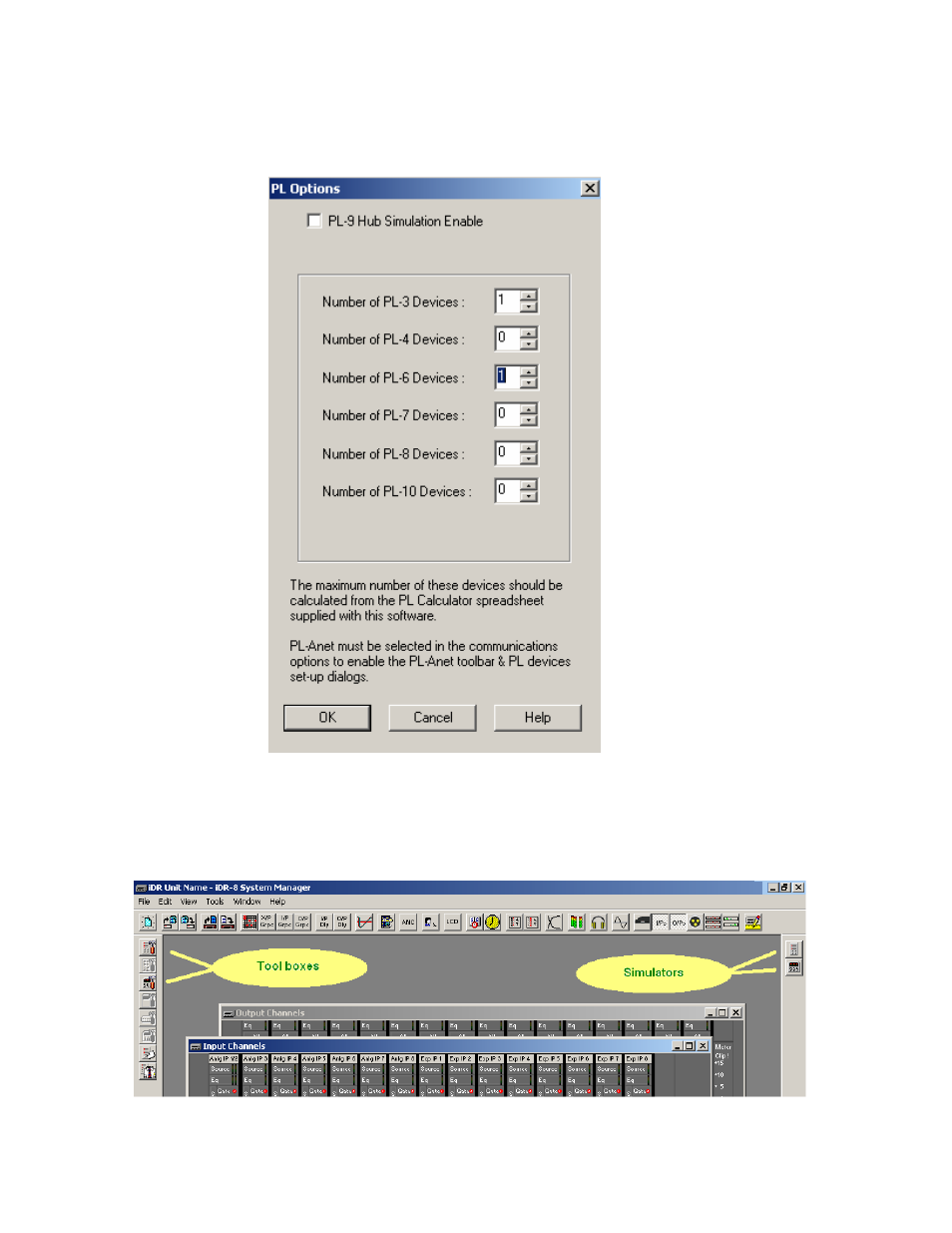

5. Return to File, Preferences but this time click PL Options.
6. Choose the number and type of PL devices you require for the configuration and click OK.
7. We have chosen 1x PL-3 and 1xPL-6 as an example.
The chosen PL devices will now appear on screen as simulators to the right and tool boxes to the left
as shown below.
