16 • 463360408
3

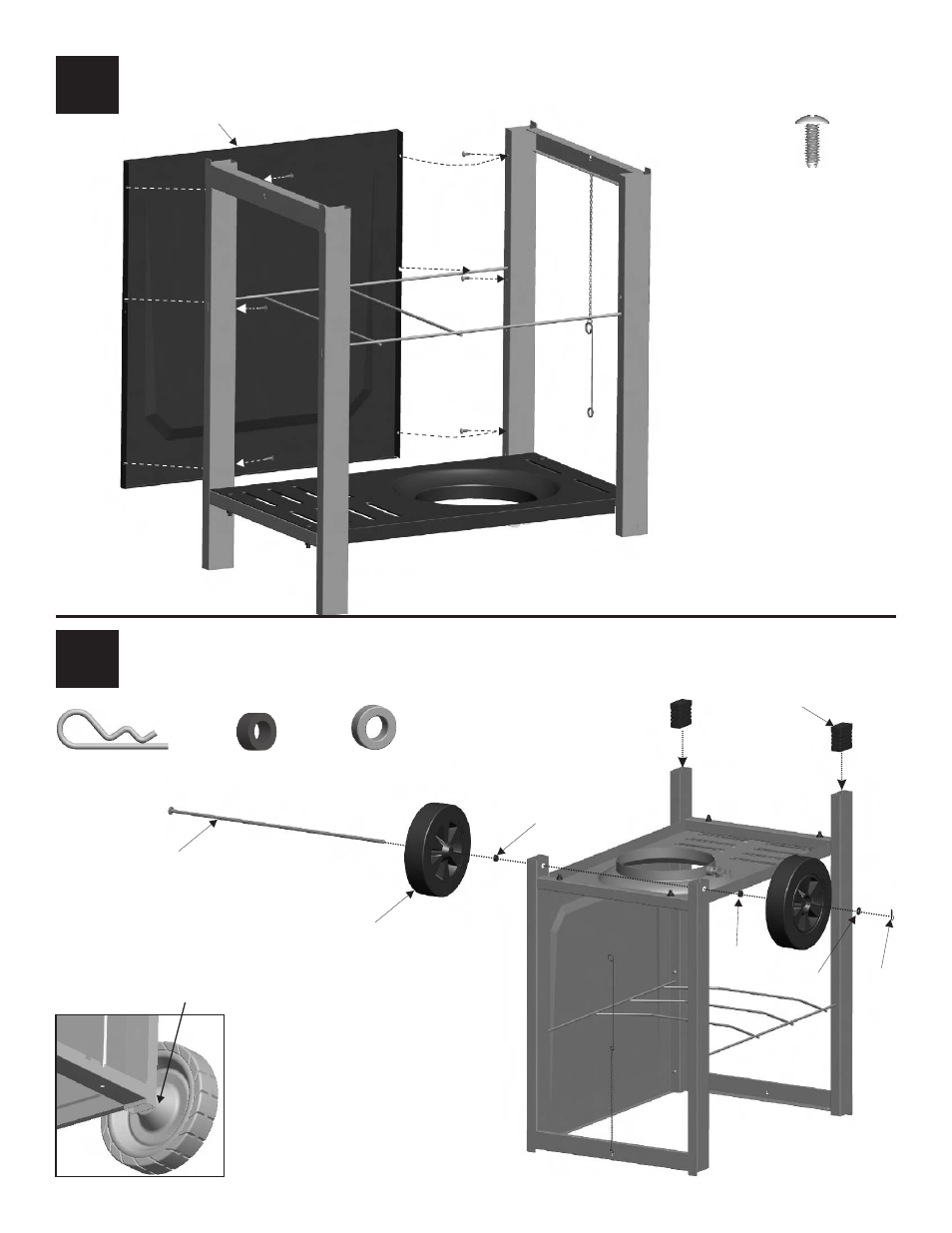

Front Panel
Back of cart
Qty. 6
#8x3/8"
Self-Tap Screw
•
Stand cart upright.
•
Attach front panel to cart with
#8x3/8" screws.
4
•
Turn assembly upside down.
•
Insert axle rod into wheel, wheel spacer, legs and other spacer and wheel. Attach with a axle washer and hitch pin.
•
Push leg extenders into right legs.
Axle Rod
Wheel
Leg Extenders
"Cone" side of wheel against leg
1” Hitch Pin
Qty. 1
Axle Washer
Qty. 1
Wheel Spacer
Wheel Spacer
Axle Washer
Hitch
Pin
Wheel Spacer
Qty. 2
