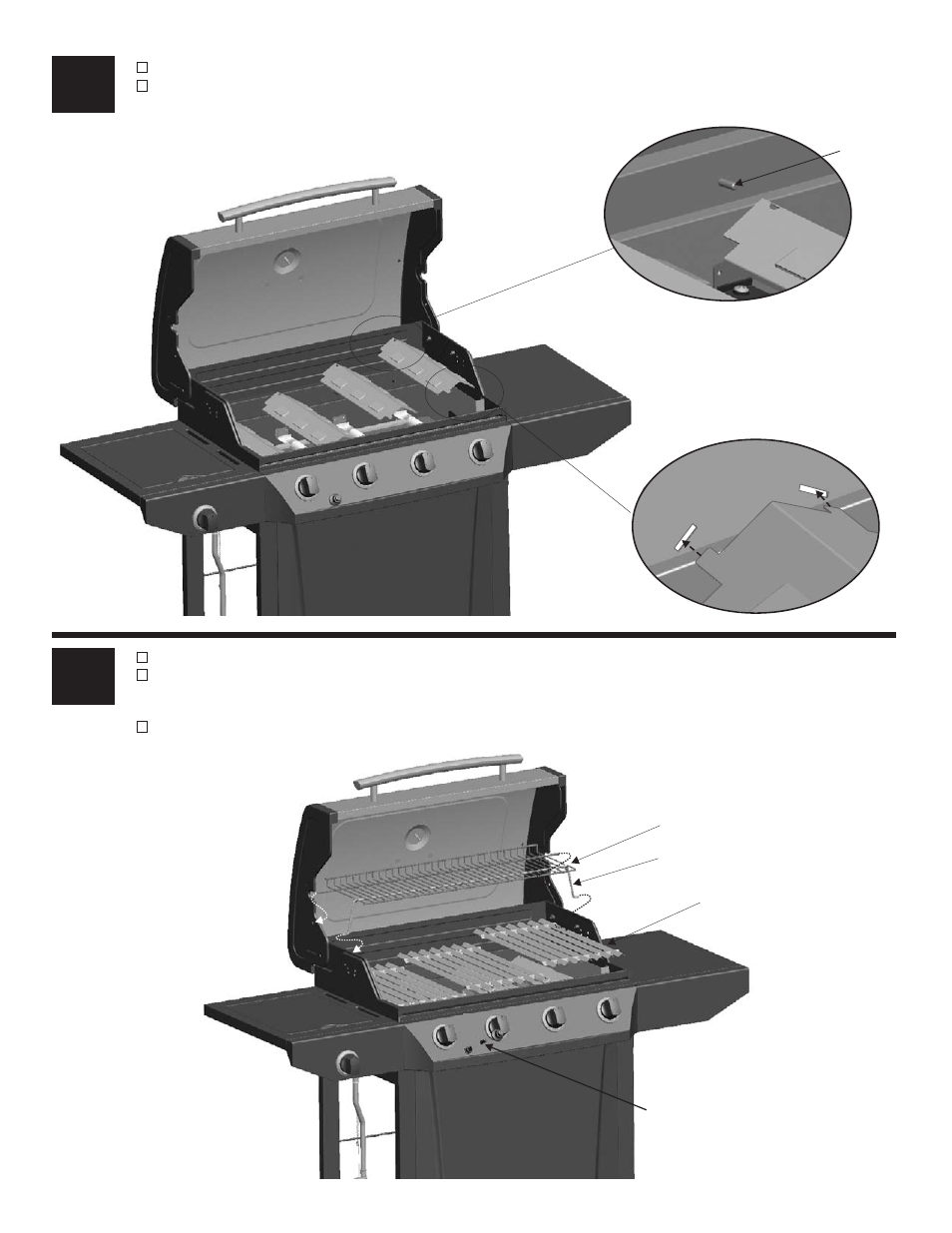

Place heat tents over burners by inserting tabs into slots in front of firebox.
Opposite ends of heat tents rest on pins in back of firebox.
Heat
Tent
Back
of Firebox
Pin
Heat
Tent
Front of Fireb
ox
Place cooking grates onto grate rests.
Insert ends of Swing Away pivot wire into holes in sides of grill lid. Insert ends of Swing Away leg wire into holes in sides of firebox.
NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are on top,
Swing Away is installed upside-down.
Unscrew ignitor cap and place AAA battery into ignitor slot with positive end (+) facing outward. Screw ignitor cap onto ignitor.
11
12
23
AAA Battery
Cooking Grate
Leg Wire
Swing Away
- +
