13
English

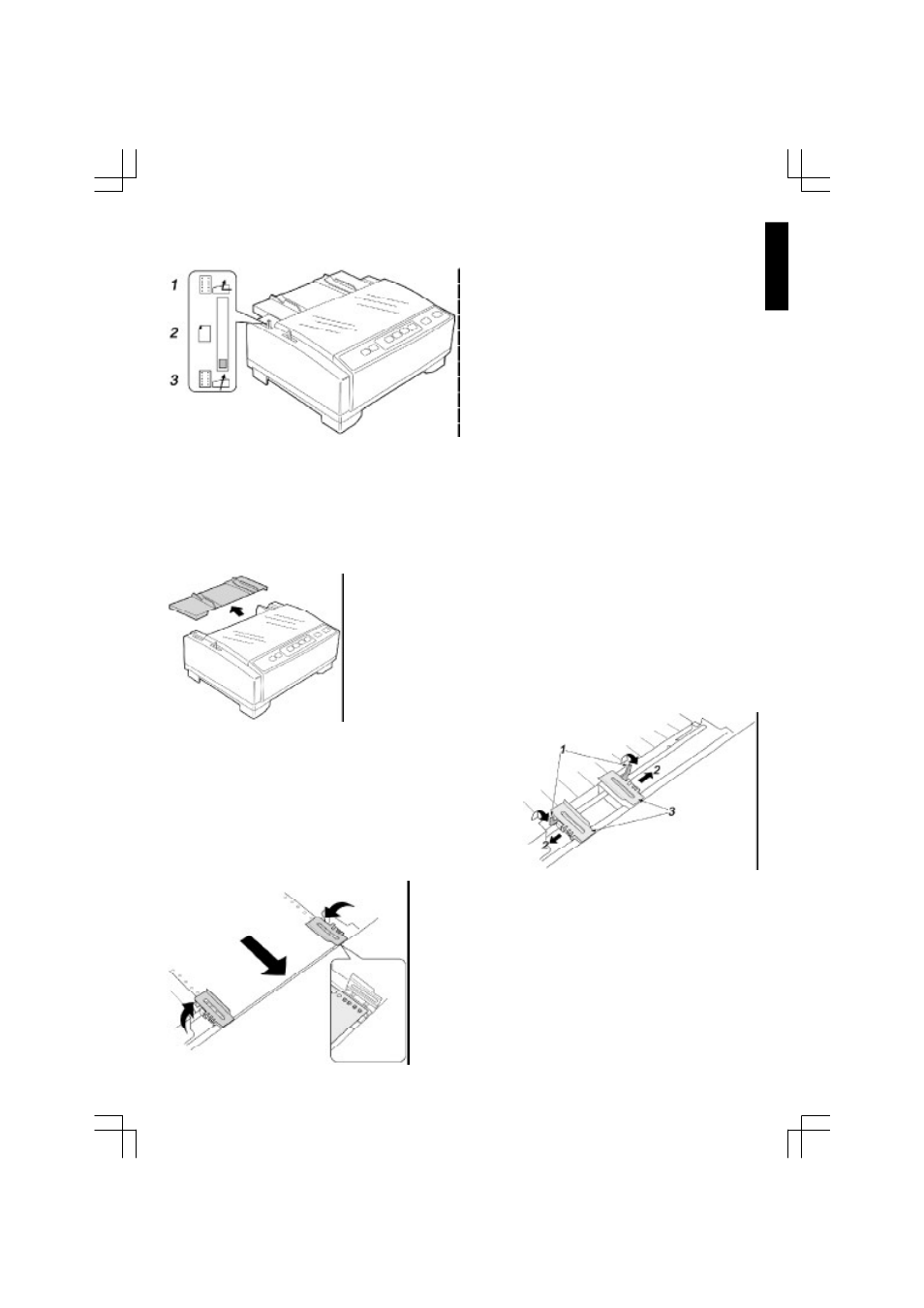

Paper Feed Selection - Paper Source
There are three settings on the paper feed
selector level on the rear-left of the printer:
1 Rear Tractor Mode: Fanfold tractor pa-
per from the rear tractor feeder unit.
2 Friction Feed Mode: Cut sheet paper
from the top sheet guide
3 Bottom Tractor Mode: Fanfold tractor
paper from the bottom tractor feeder unit.
Fanfold Paper (Rear Tractor Mode)
Turn the power on and the PAPER OUT indicator will flash indicating that no paper is installed
in the printer.
Adjust the head gap lever for the thickness of paper that you are
using, then set the paper feed selector to the rear tractor mode
position.
Then lift off the top cover at the rear of the printer to expose the
rear tractor guides
Unlock the tractors by pulling the tractor clamping le-
vers (1) forward. Slide the tractors to accommodate
the width of paper being used (2).
Lift the tractor covers (3) to expose the sprocket holes
with the tractor pins
Align the paper on the sprocket holes then close the
tractor covers
Adjust the tractors to remove any slack on the paper
and then lock the tractor clamping levers once again.
