TFX-FS360 User Manual

6

2010-07-20/14:53

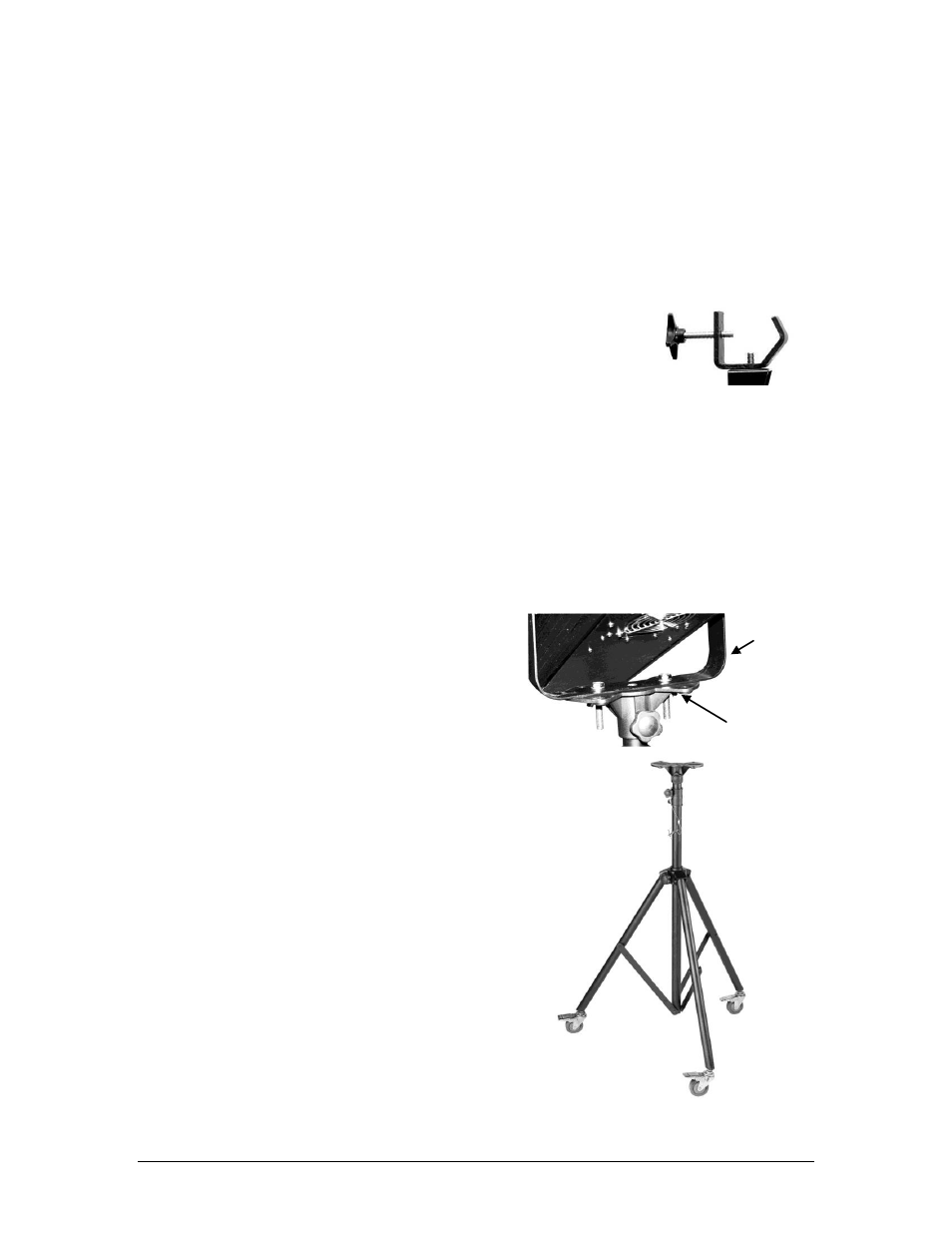

Hanging Clamp

Note!
Clamp is sold separately.

Mounting plate

Yoke

Mounting

O R I E N T AT I O N

This fixture may be mounted in any safe, position provided there is adequate room for ventilation.

ST AT I C M O U N T

The TFX-FS360 comes equipped with a yoke for pipe clamp

installations. The yoke will provide for a static mount or installation of

the followspot for pre-focused use. It is important never to obstruct the
fan or vents pathway. Mount the fixture using, a suitable “C” or “O”

type clamp. Adjust the angle of the fixture by loosening both knobs

and tilting the fixture. After finding the desired position, retighten both

knobs.

When selecting installation location, take into consideration lamp
replacement access and routine maintenance.

Safety cables should always be used.

Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature
changes or restricted ventilation.

T R I PO D ST AN D W I T H C A S T ER S C H - W 2 8 ( O PT I O N AL )

The CH-W28 is a multipurpose followspot/speaker stand with casters. Assemble tripod for use with

casters as indicated in the CH-W28 manual.

1.

Mount yoke bracket so the bracket side
runs across the bottom.

2.

Mount the followspot bracket onto the
tripod mounting plate

3.

Align screw holes with mounting plate
openings and fasten with supplied bolts.

Please visit your participating dealer and ask

for the CH-W28 Tripod from CHAUVET®. To

locate a dealer near you contact CHAUVET®

at (954) 929-1115, Toll Free (800) 762-1084
