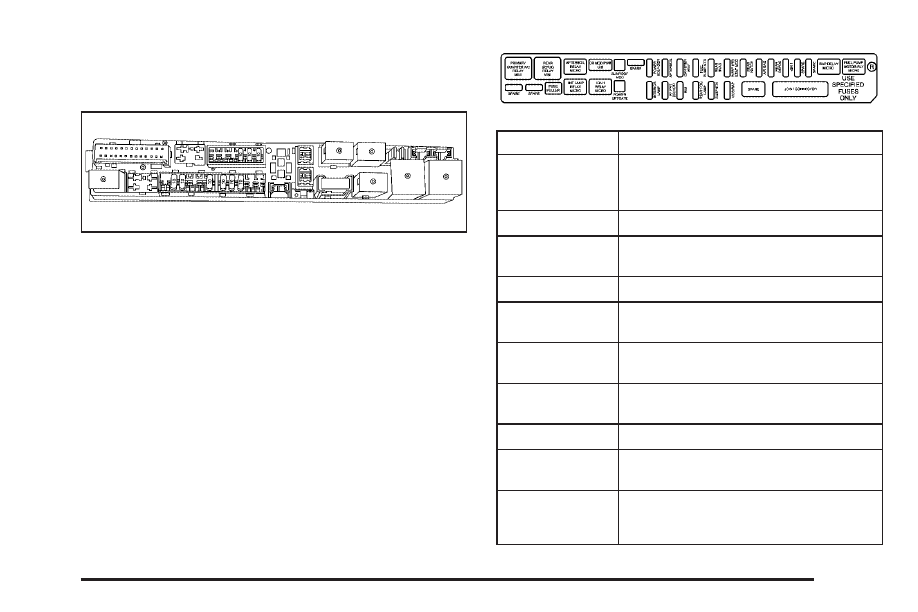

Rear Underseat Fuse Block
(Passenger Side)
The passenger’s side rear fuse block is located under
the rear seat on the passenger’s side of the vehicle.
The carpet must be lifted up to access the rear
fuse block.
To access the fuse block, push in the two tabs located
at each end of the fuse block cover. Then lift the
cover off.
Relays Usage
PRIMARY
QUARTER A/C
RELAY MINI
Rear Air Conditioning
SPARE Not Used
REAR DEFOG
RELAY MINI
Rear Window Defogger
SPARE Not Used
AFTERBOIL
RELAY MICRO
Afterboil Pump
INT LAMP
RELAY MICRO
Hush Panel Lamps, Puddle Lamps,
Overhead Courtesy Lamp Assembly
IGN 1 RELAY
MICRO
Ignition Switch
SPARE Not Used
RAP RELAY
(MICRO)
Sunroof
FUEL PUMP
MOTOR
RLY MICRO
Fuel Pump Motor
5-103
