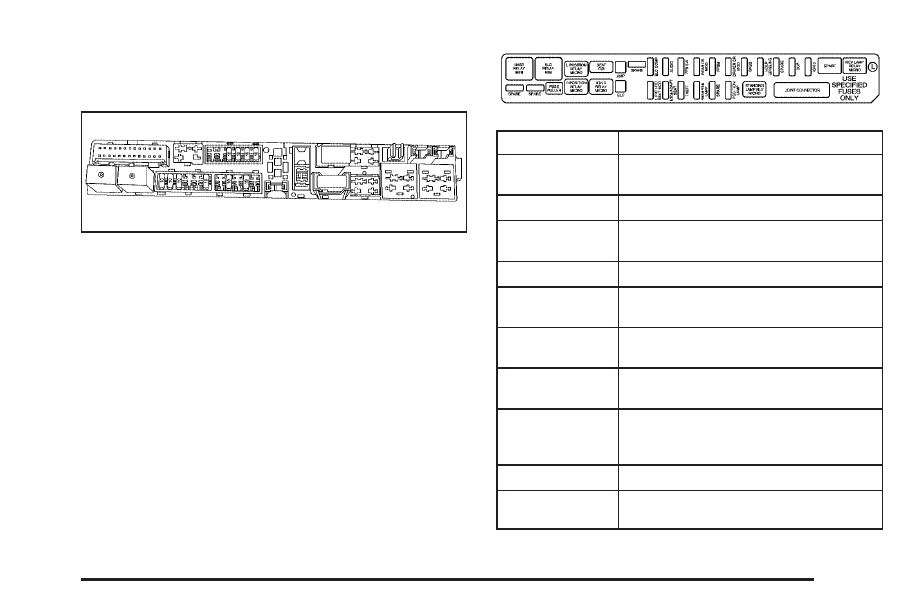

Rear Underseat Fuse Block
(Driver Side)
The driver’s side rear fuse block is located under the
rear seat on the driver’s side of the vehicle. The carpet
must be lifted up to access the rear fuse block.
To access the fuse block, push in the two tabs located
at each end of the fuse block cover. Then lift the
cover off.
Relays Usage
BASS RELAY
MICRO
Brake Lamps
SPARE Not Used
ELC RELAY
MINI
Electronic Level Control (ELC)
Compressor Motor
SPARE Not Used
L POSITION
RELAY MICRO
Driver’s Side Position Lamp
R POSITION
RELAY MICRO
Passenger’s Side Position Lamp
IGN 3 RELAY
MICRO
Heated Seat Modules, Air Inlet
Motor, Shifter Assembly
STANDING
LAMP
RLY MICRO
Control for Position Lamp Relays
SPARE Not Used
REV LAMP
RELAY MICRO
ISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
5-101
